Product Description
Taian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of Mountain Tai which has the reputation of “Chief of the Five Sacred Mountains”, neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents. Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment. On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India , Japan, Malaysia, USA, Germany, Spain and more than 60 countries…
Main technical parameters
T-SLY550 truck mounted water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air,foam,or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular in drilling hole for geothermal heating. It can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.
Technical Parameters
| Bore Diameter(mm) | 115-400 |
| Bore Depth(m) | 220-400 |
| Work Pressure (Mpa) | 1.05-3.5 |
| Air Consumption( m³/min) | 16-40 |
| Drill rod length(m) | 3 |
| Drill rod diameter(mm) | 76/89 |
| Dimension(mm) | 8900*2100*3300 |
| Total Weight( T) | 12 |
| Max Lifting force(T) | 12 |
| Rotation Torque( Nm) | 3900 |
| Rotation Speed(r/min) | 0-100 |
| Truck chassis | DONGFENG |
| Drive form | 4*2 |

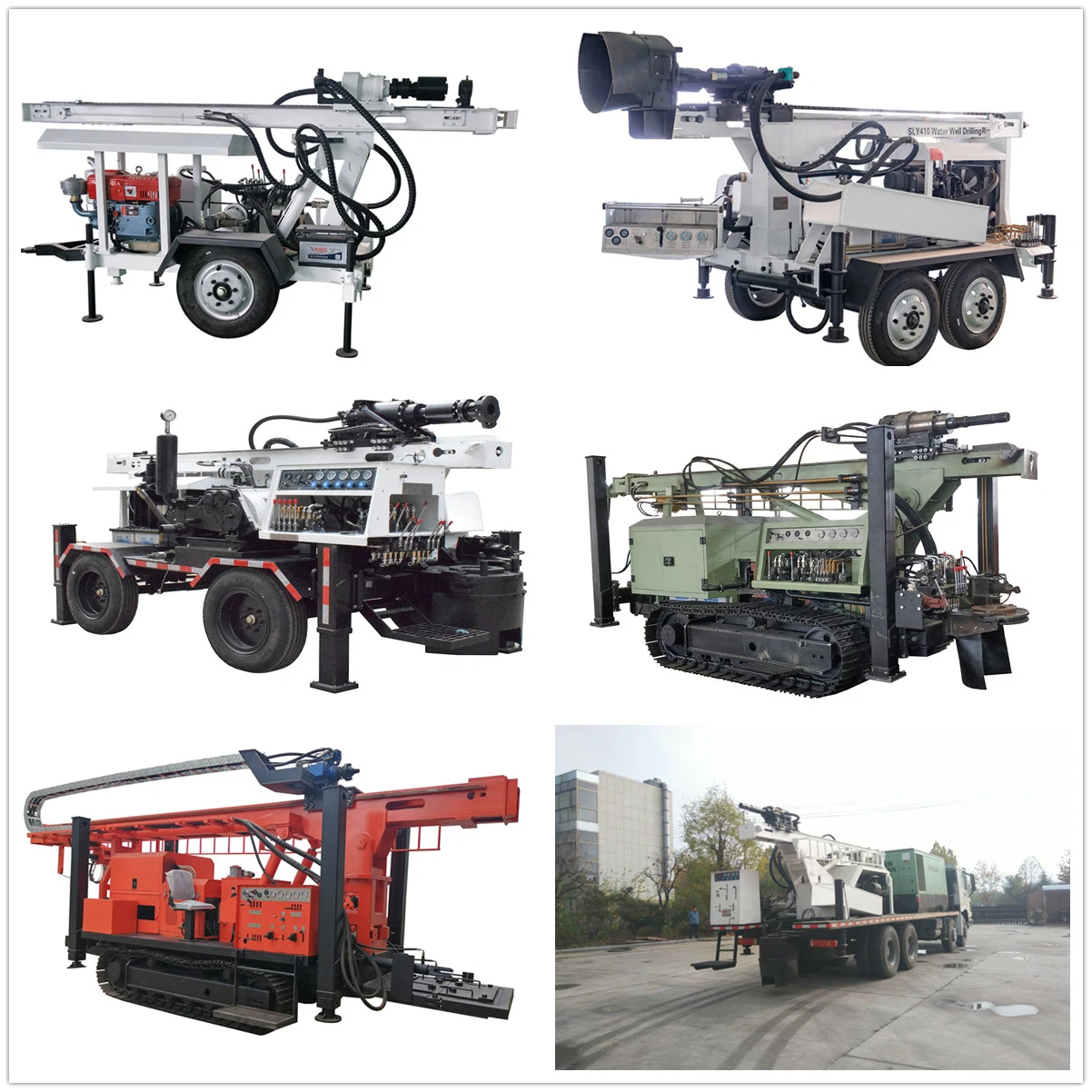

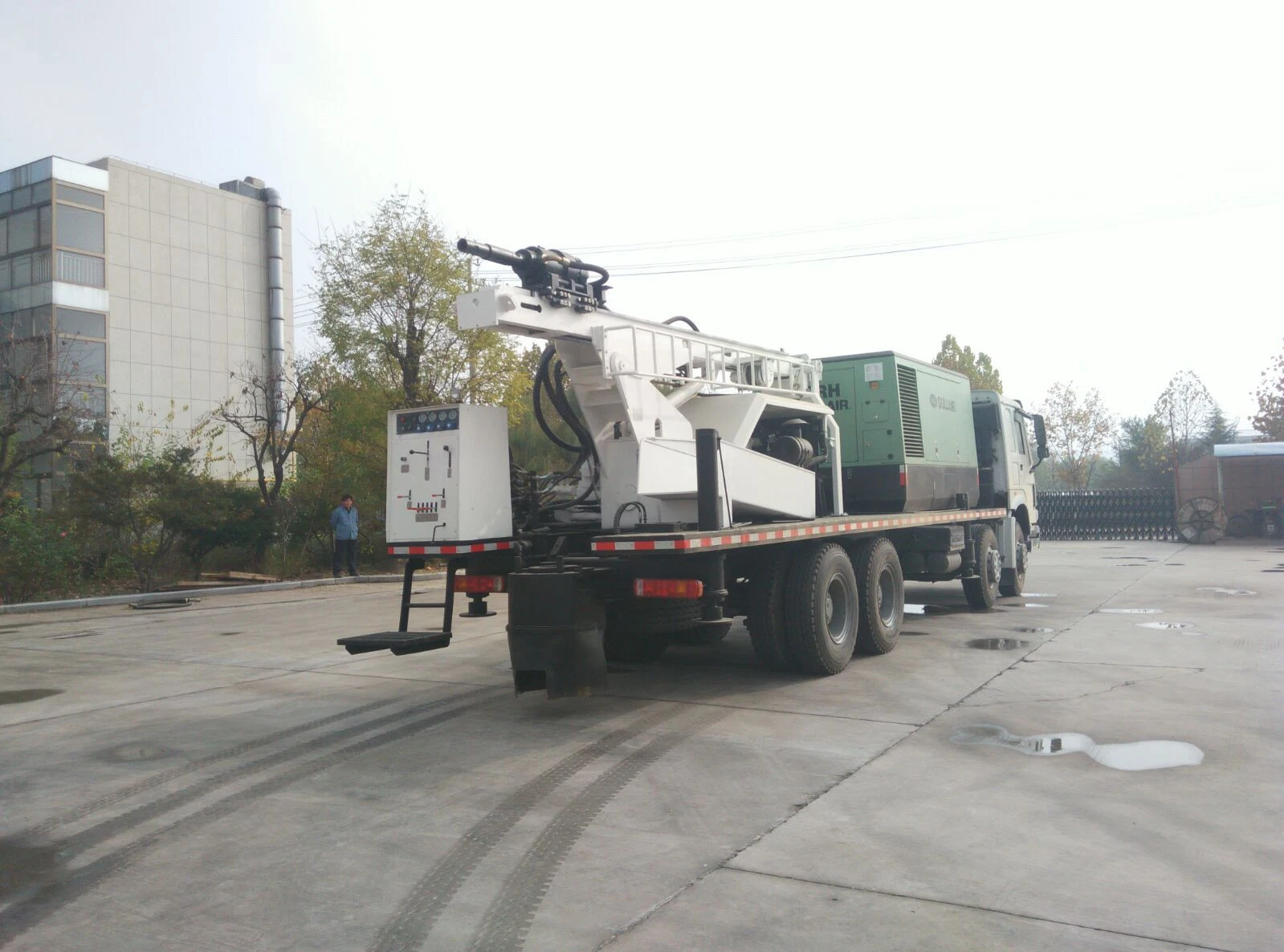

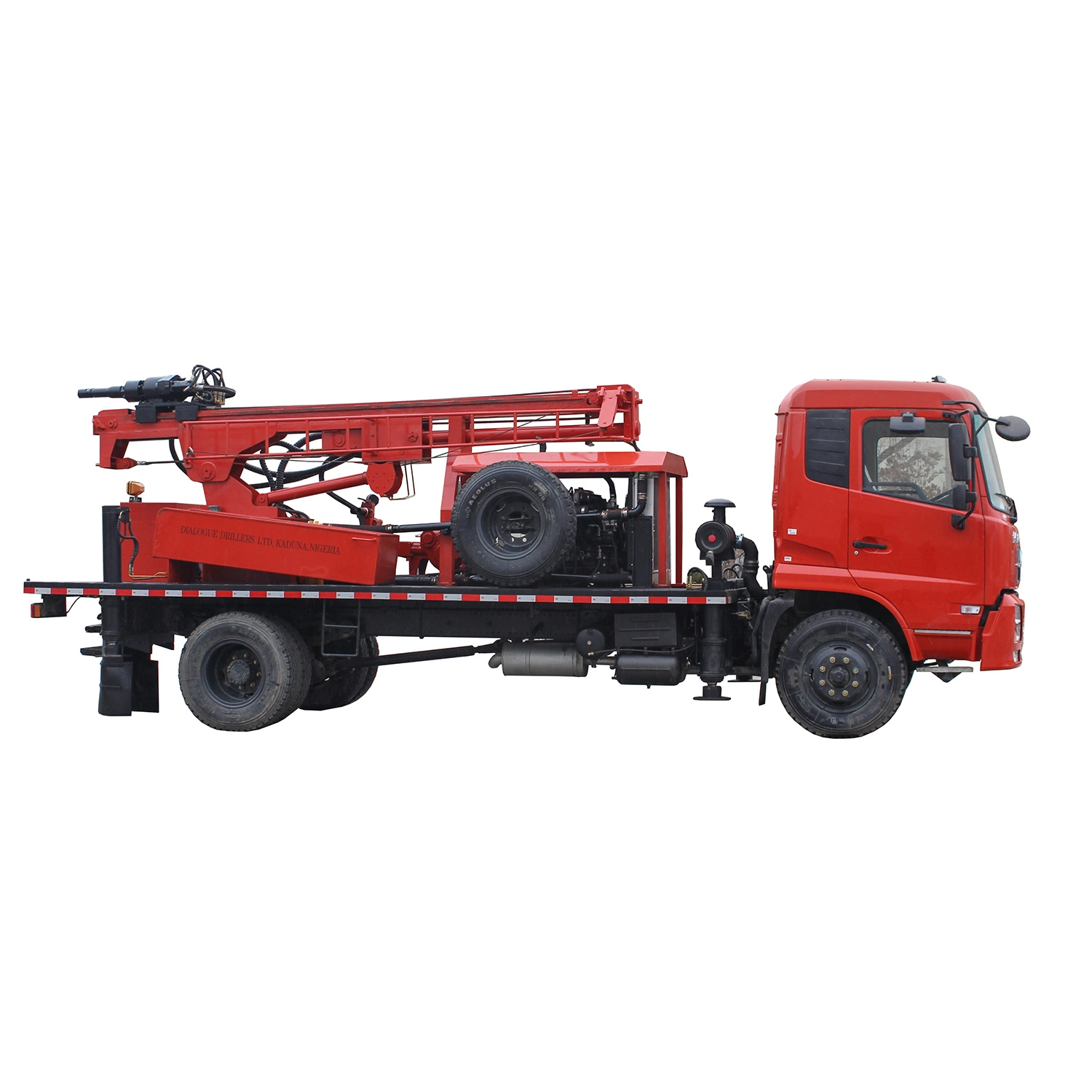

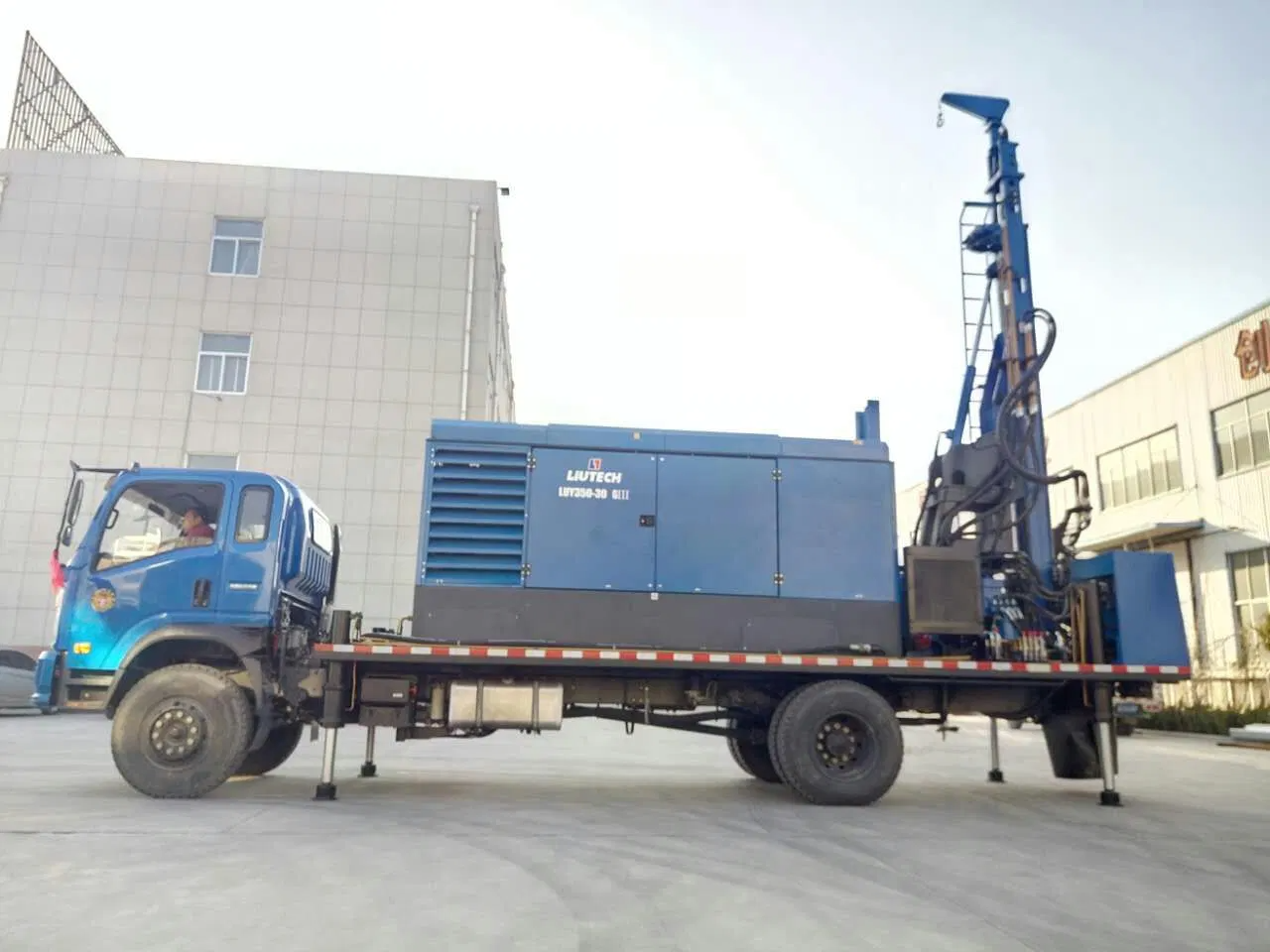

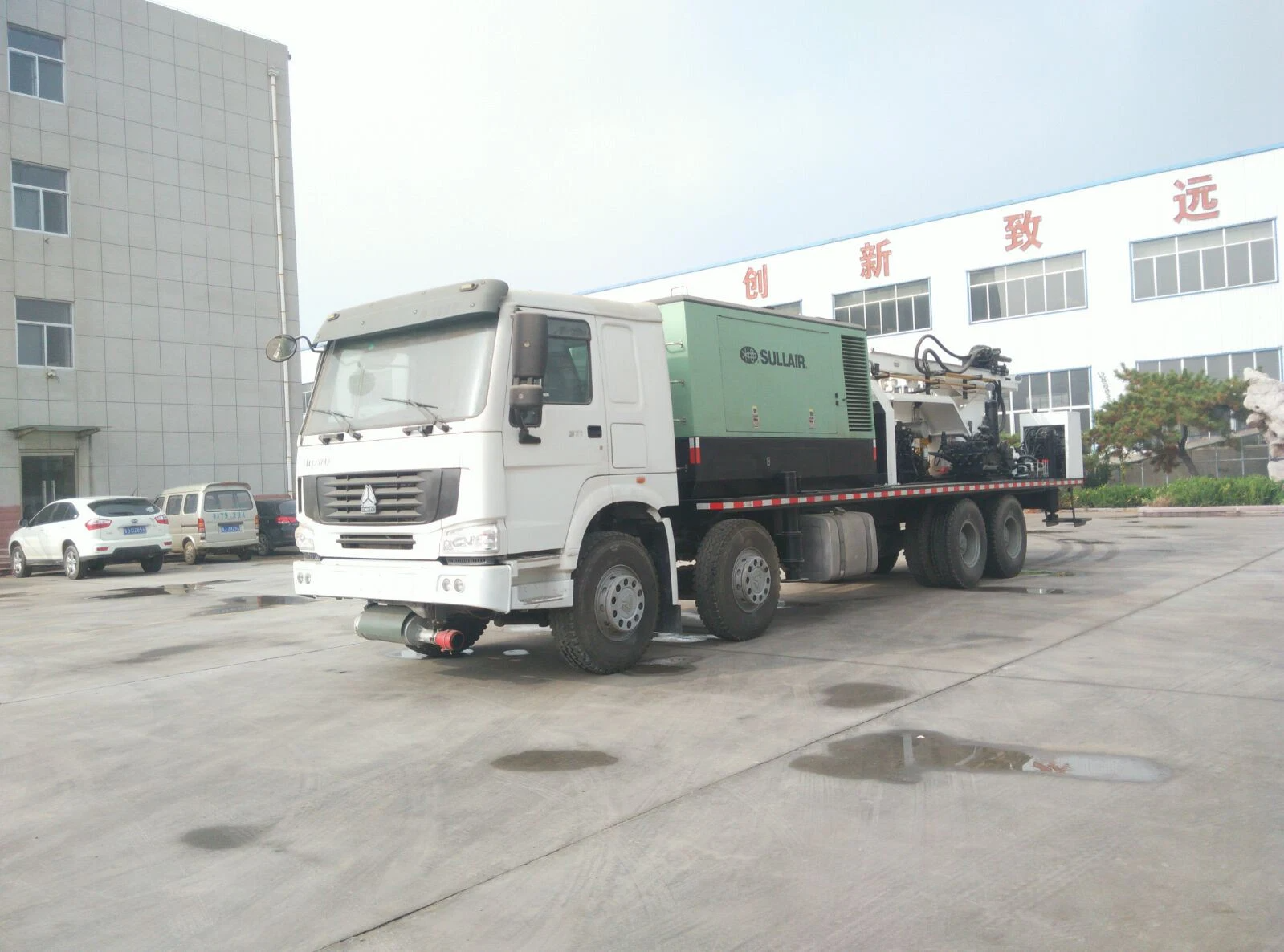

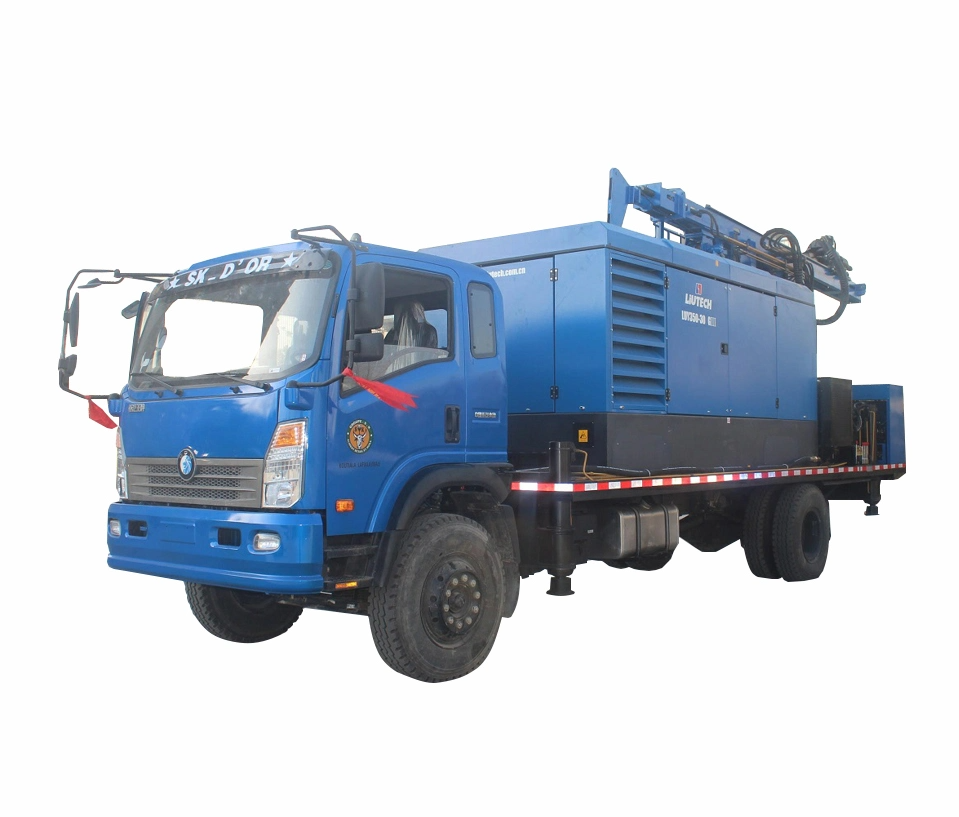

photos for reference:
