Dual Motor Used Crawler Drill Rig for Sale

Product Description

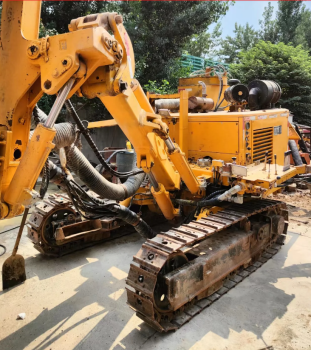

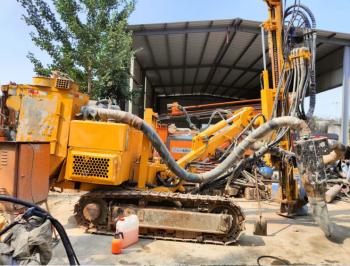

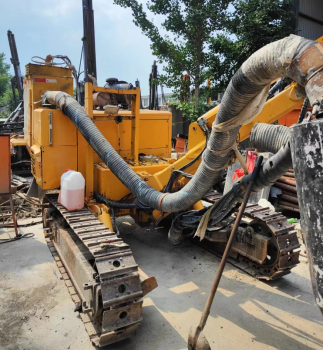

            SW590 Hydraulic DTH Used Crawler Drill Rig
ModelSW590
Borehole diameter90-165mm
Borehole depth50m
Applicable rock hardnessf=6-20
Working air pressure1.2-2.4MPa
Air consumption11-21m³/min
Feeding stroke4138mm
Rod-changing length3m
Max. horizontal drilling height3370
Rotation rate0-80rpm
Rotation torque3000Nm
Travle speed2Km/h, 3Km/h
Grade ability24°
PowerYuchai 70KW/Cummins 74KW (optional)
Electric motor 45KW
Dust collector (optional)Hydraulic dry dust collector
Wet dust collector
Dimension (LxWxH)7000mm x 2200mm x 2100mm
Weight6500kg
