High Quality More Powerful Double Hydraulic Motor Automatic Control Water Water Well Drilling Rig For Sale

Description:

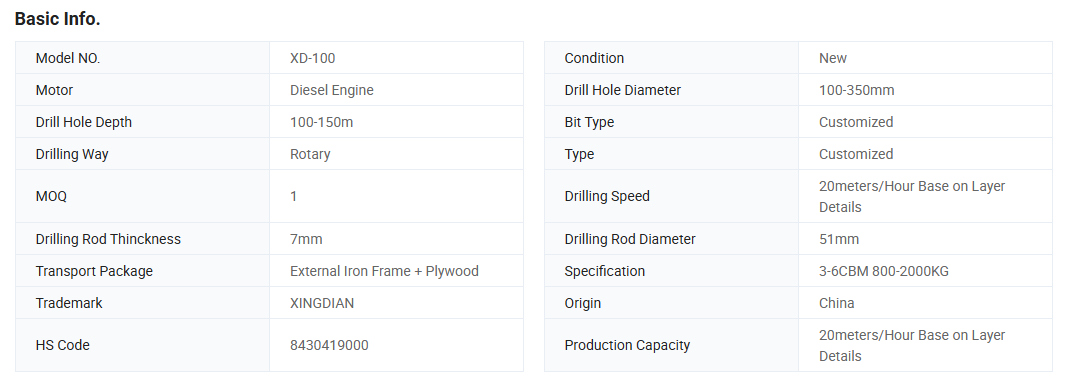

Snipaste 2024 09 18 15 23 52

Product Description

Product Description
Diesel hydraulic water well drilling machine
This machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling
diameter is 100-350mm, and drilling depth is 100m to 150m. It also can be used in small building piling, like farmhouse
or factory, the drilling diameter can reach 350mm and depth can be more than 150 meter.
The advantage of the water well drilling machine are as below:
1. Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast.

7. Assure easily operation and long life service life,

Product Parameters
Diesel hydraulic water well drilling machine
Dimension(mm)1400*800*2700
Weight of machine (kg)200
Drill rod diameter (mm)Ø51
Drill rod length(mm)1500
Rod change methodFull automatic screw thread
Drilling depth(m)100-150
EnergyDiesel
Motor powerCustomized
Drilling methodRotating type
Pump power (HP)Customized
Drilling hole diameter(mm)within 350mm
Hosting height(mm)3000mm
Hosting capacity (kg)5000

Photos for Reference:

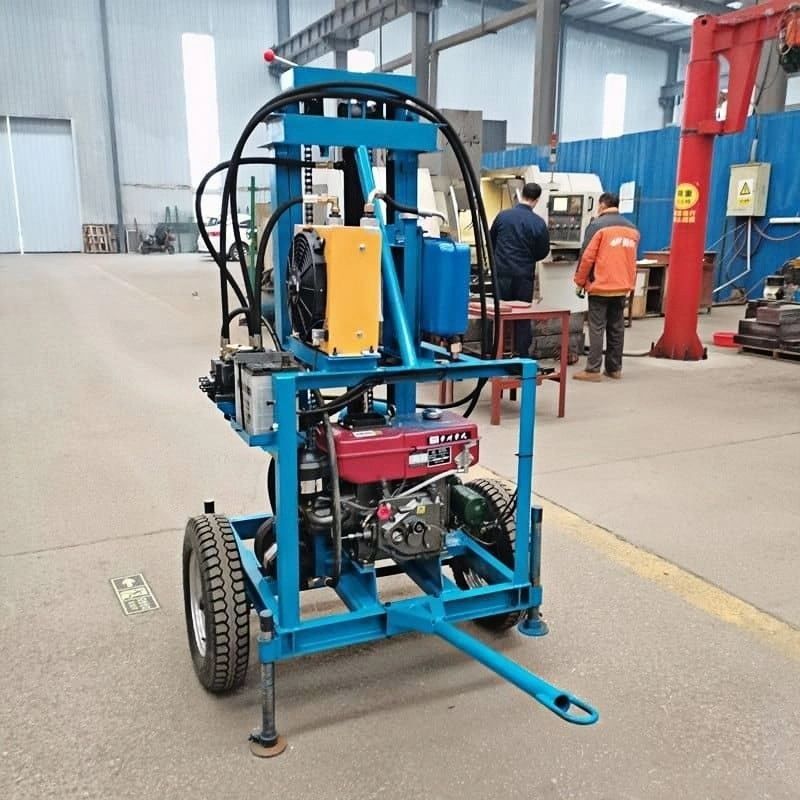

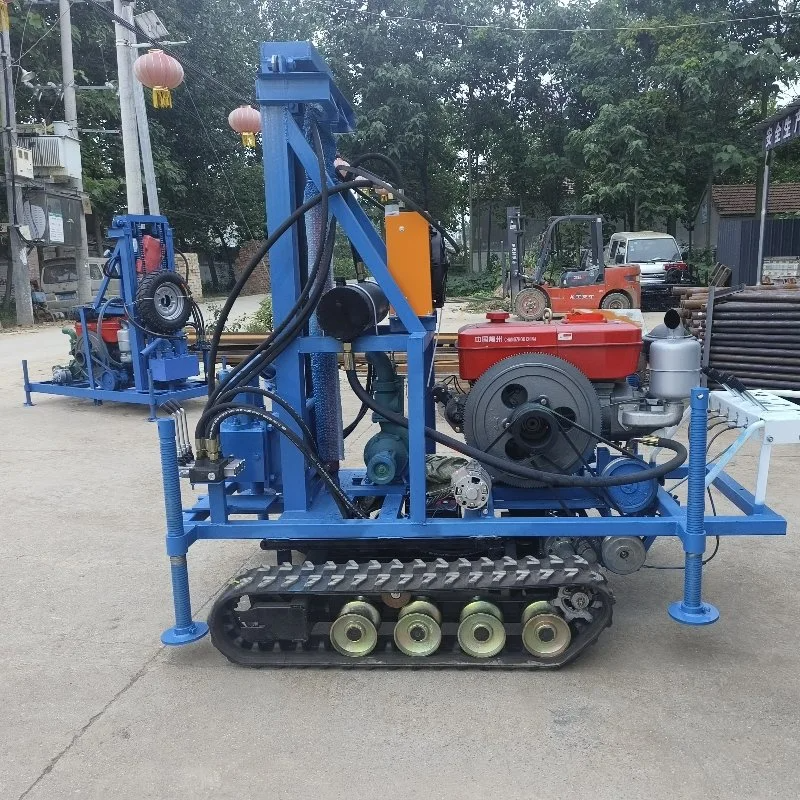

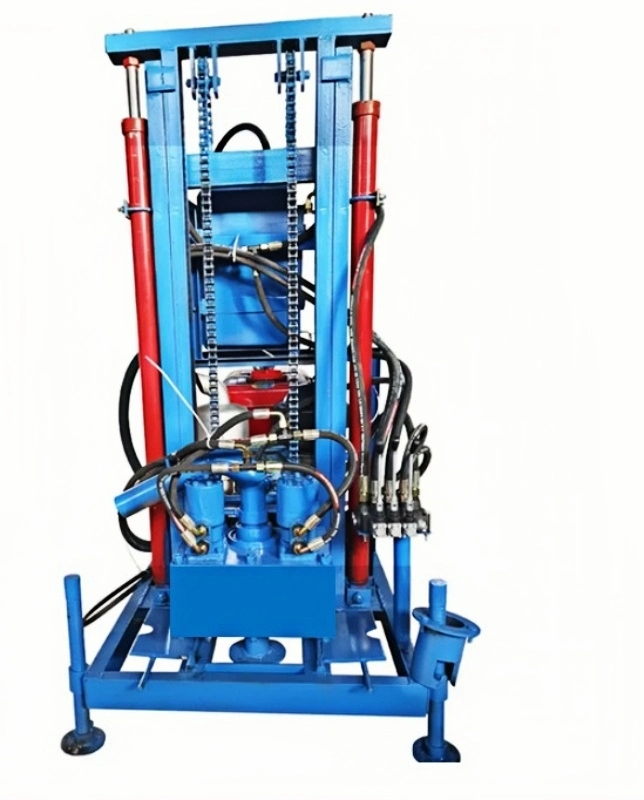

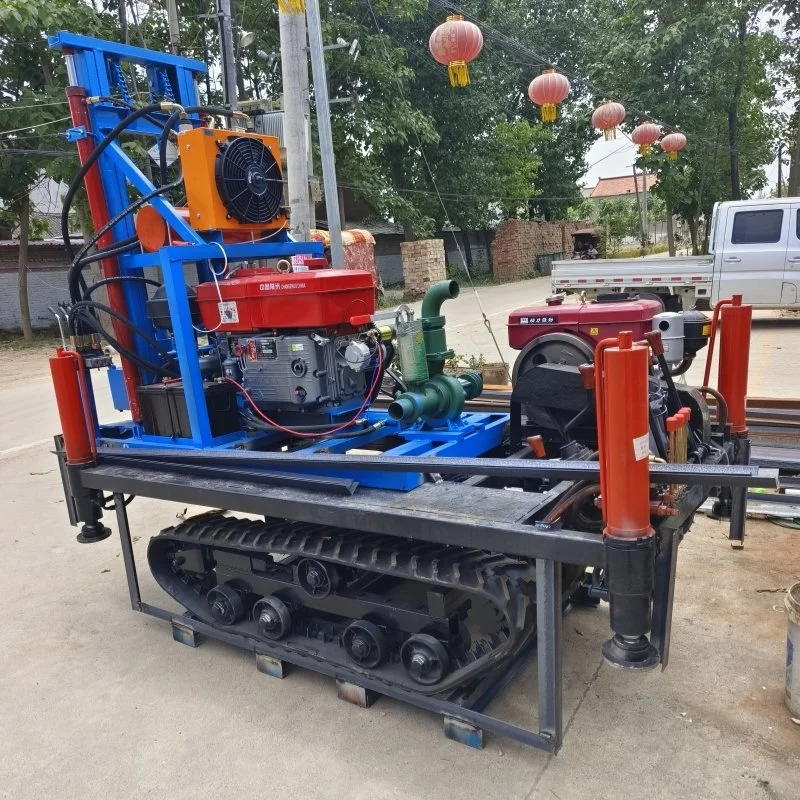

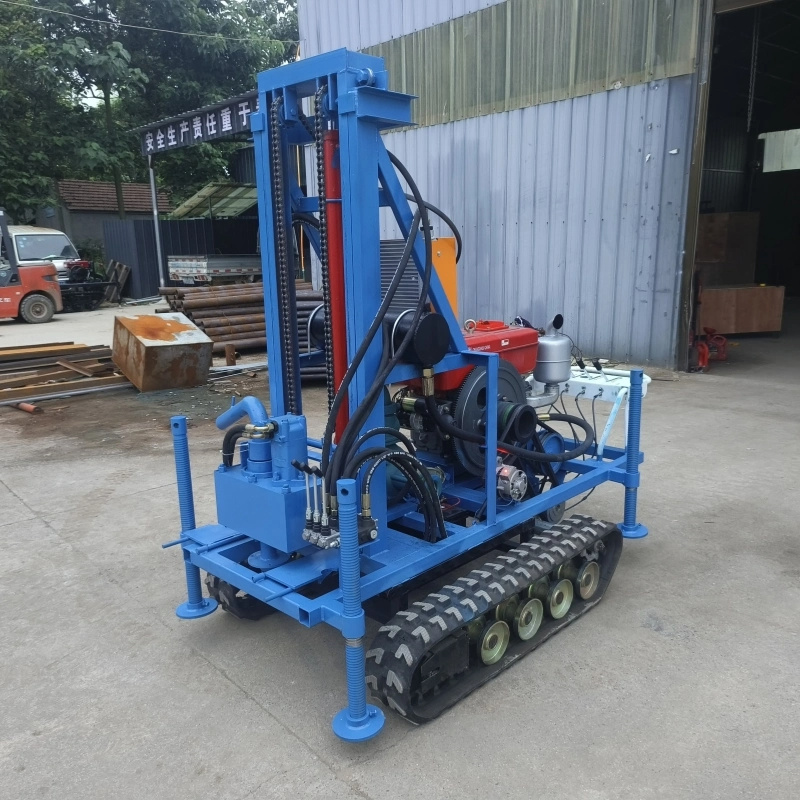

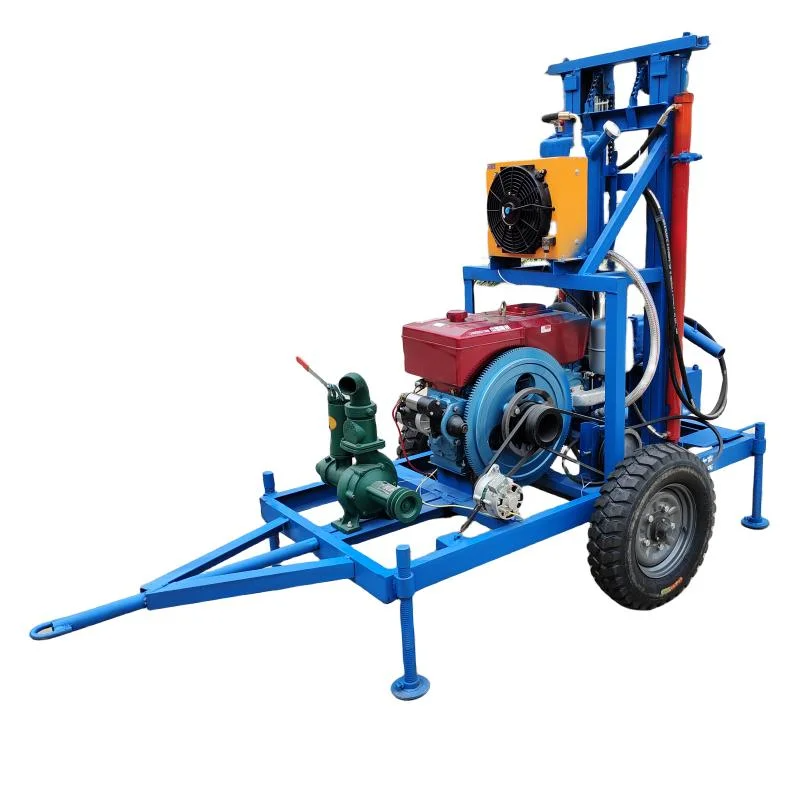

used water well drilling rig 主图 02 13 主图 03 13 主图 04 13 主图 05 12 主图 06 13
