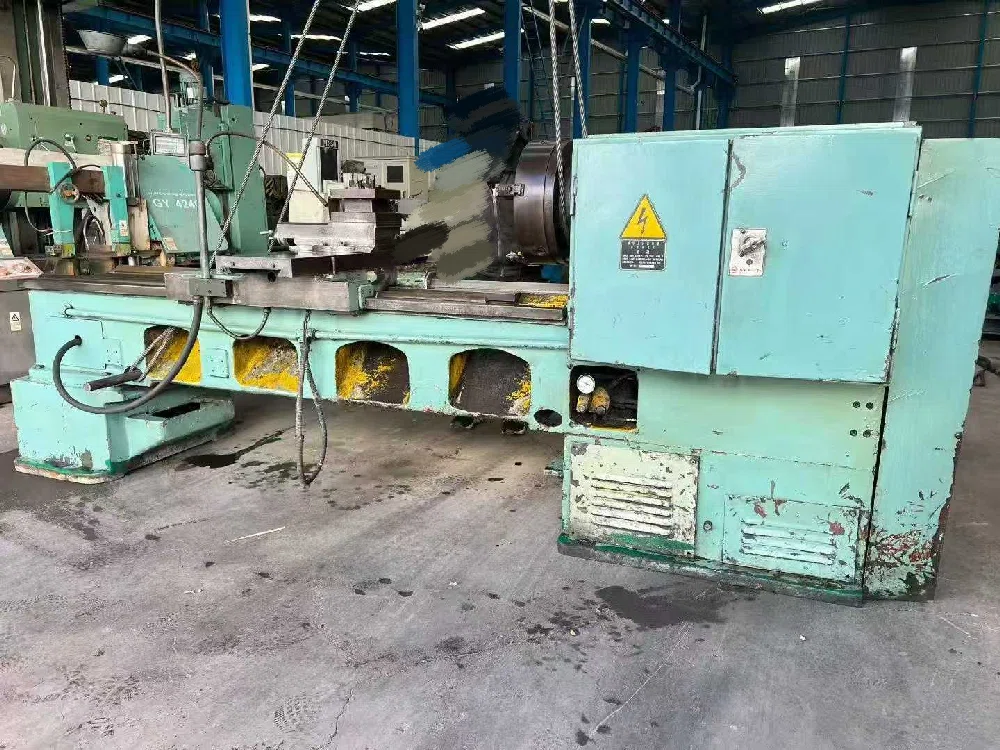

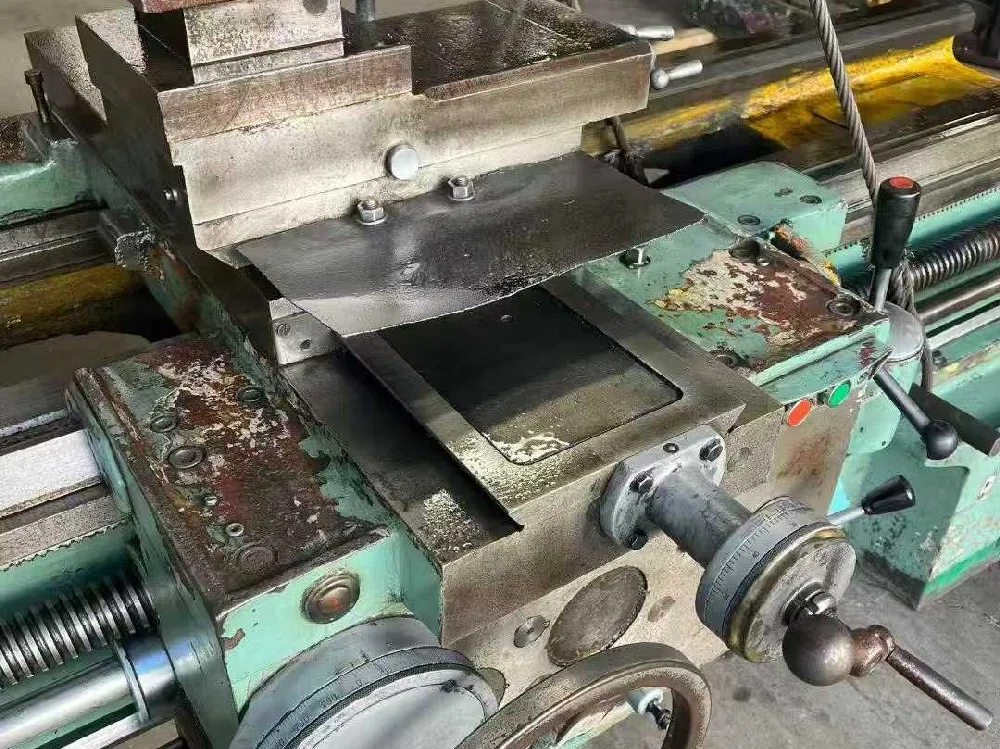

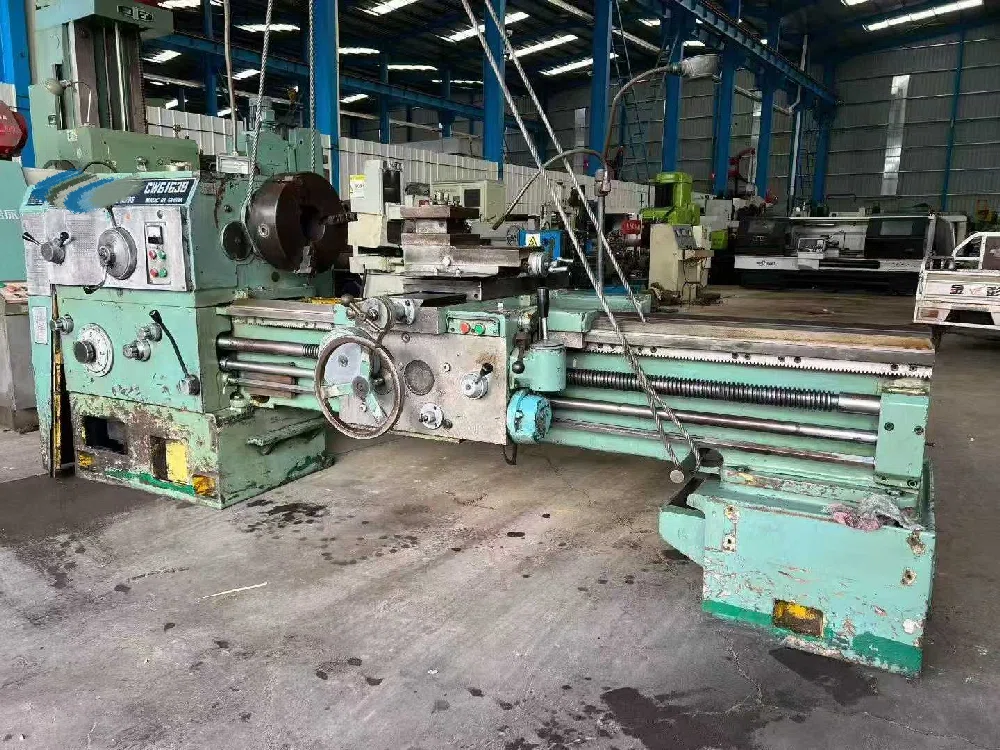

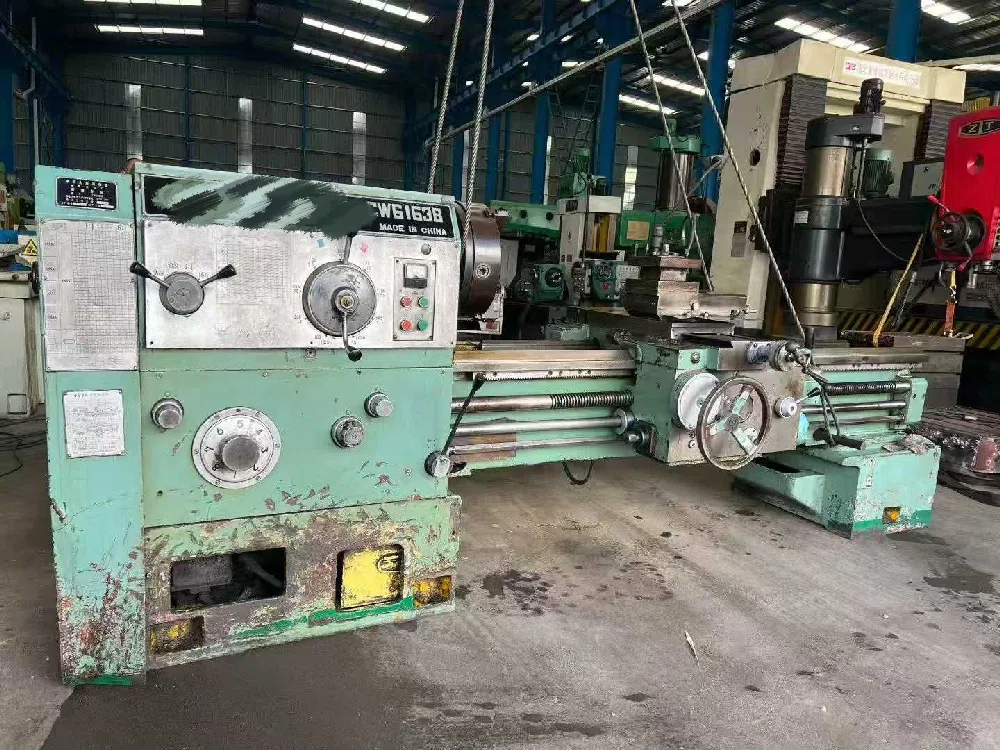

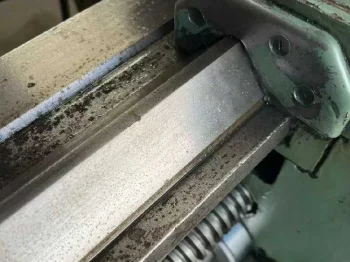

Used Anyang CW6163B Horizontal Lathe for Sale

Used Anyang CW6163B Horizontal Lathe

Brand: Anyang
Model: CW6163B
Production year: 1996
The CW6163B horizontal lathe is a heavy-duty general-purpose metal-cutting machine tool, mainly used for the precision machining of large rotating parts such as shafts and discs made of various metals, including turning internal and external cylindrical surfaces, conical surfaces, end faces, arc surfaces, as well as various metric, inch, module, and diametral pitch threads. It can also perform auxiliary processes such as drilling, hole expanding, reaming, boring, and rolling, and is widely applied in industries such as machinery manufacturing, automotive, mining, energy, and heavy equipment. The table below provides more information about this machine; if you have any questions, please feel free to click the button to contact us.

Basic Info.

ModelCW6163BConditionUsed
Machine TypeGeneral Horizontal LatheMax. swing over the bed630 mm
Max. swing over the carriage350 mmMax. workpiece length1500 / 2000 / 3000 mm(optional)
Spindle bore diameter104 mmSpindle nose typeD11
Spindle speed range7.5 – 1000 r/min(18 steps)Main motor power11 kW
Metric thread range1 – 192 mmCarriage travellongitudinal: varies with bed length; cross: 320 mm
Tailstock quill travel250 mmOverall dimensions (L×W×H)approx. 4200×1600×1400 mm
Manufacture Date1996BrandAnyang
Country of OriginChina
