Used Bulldozer Shantui SD22 for Sale

Used Bulldozer Product Description

Operating weight (kg) 23400

Net power (kW / RPM) 162

Bulldozer blade capacity (M3) 6.4 (straight blade)

engine

Engine model Chongqing Cummins NT855-C280 (S10) Cummins

Power (kW / RPM) 162 / 1800

Displacement (L) 14

Number of cylinders – cylinder diameter × stroke (n-mm × mm) 139.7 × 152.4 (6 cylinders)

In line, water cooled, four stroke, top valve direct injection, turbocharged diesel engine

drive system

First gear walking speed (km / h) 0-3.6

Second gear walking speed (km / h) 0-6.5

Third gear walking speed (km / h) 0-11.2

Hydraulic system

Hydraulic pump type gear oil pump

Maximum flow of main pump of working device (L / min) 262

Working device relief valve set pressure (MPA) 14

Dimensions

Overall length (mm) 6805

Overall width (mm) 2620

Machine height (mm) 3395

Minimum turning radius (m) 3.3

Bulldozer unit

Bulldozer width × height (mm) 3725 * 1315

Maximum descent height (mm) 540

Maximum roll adjustment (mm) > 735

Bulldozer weight (kg) 3630

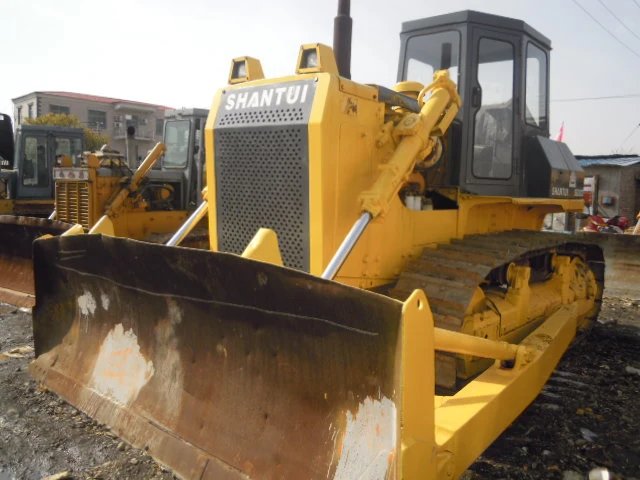

Used China Machinery Shantui SD22 Crawler Bulldozer in Good Condition for Sale

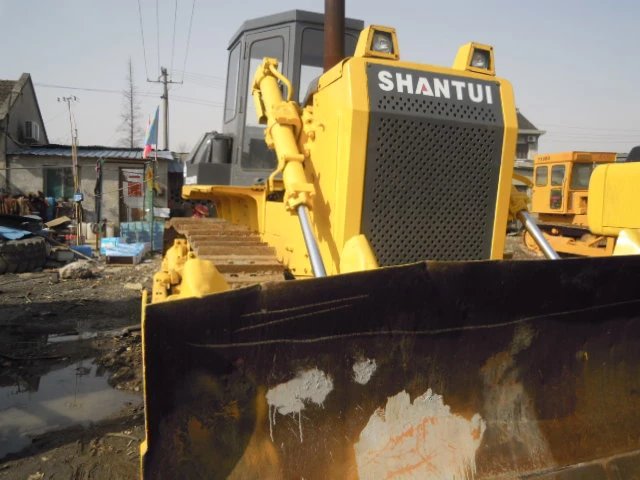

Used China Machinery Shantui SD22 Crawler Bulldozer in Good Condition for Sale



Used China Machinery Shantui SD22 Crawler Bulldozer in Good Condition for Sale
