Used Coach Buses

Used Coach Buses YUTONG for sale

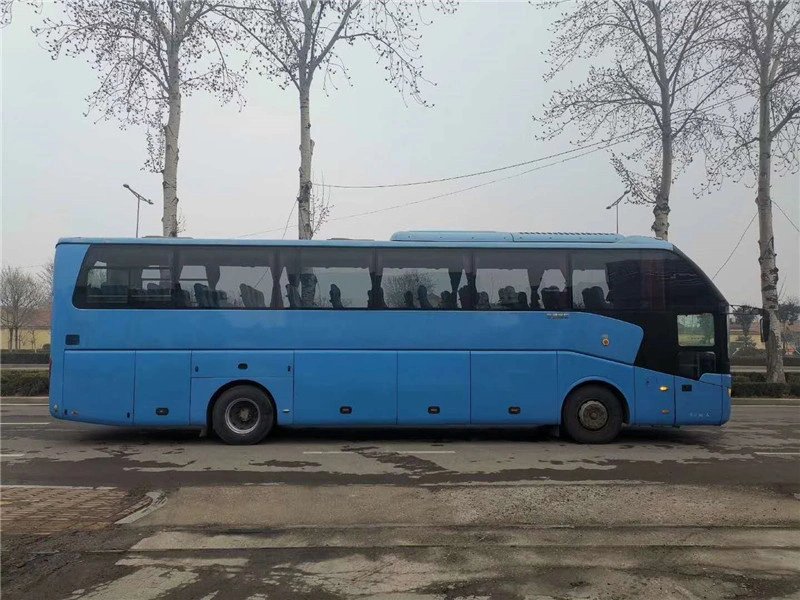

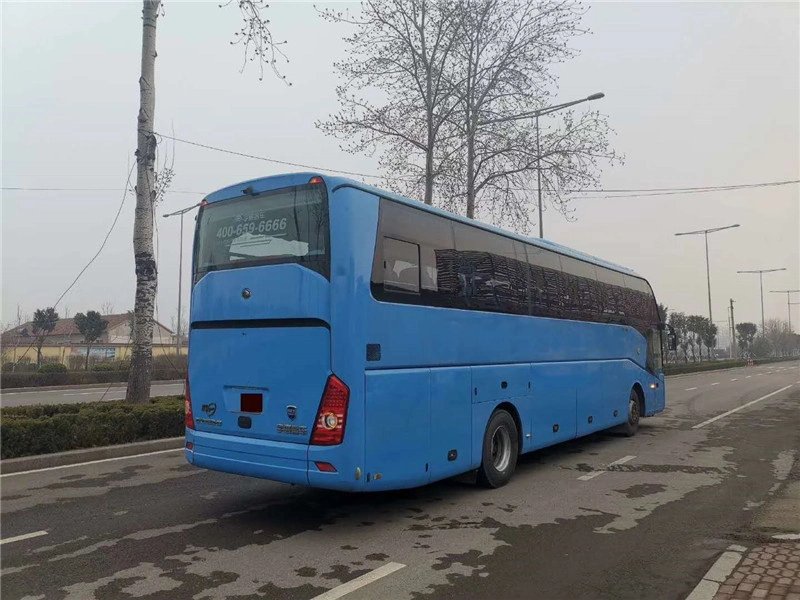

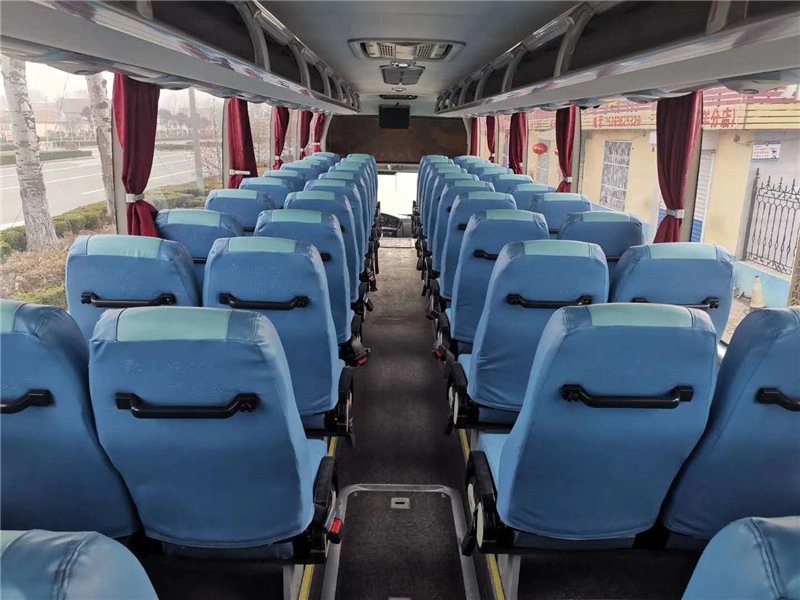

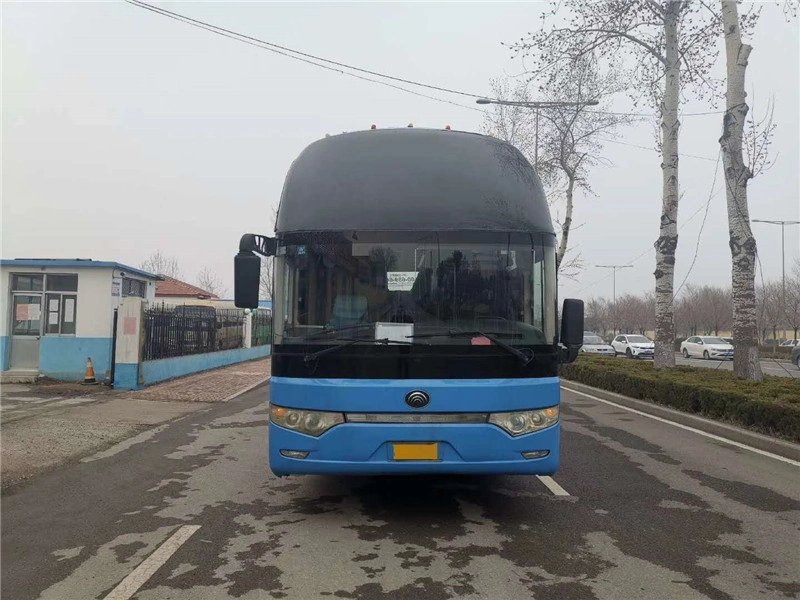

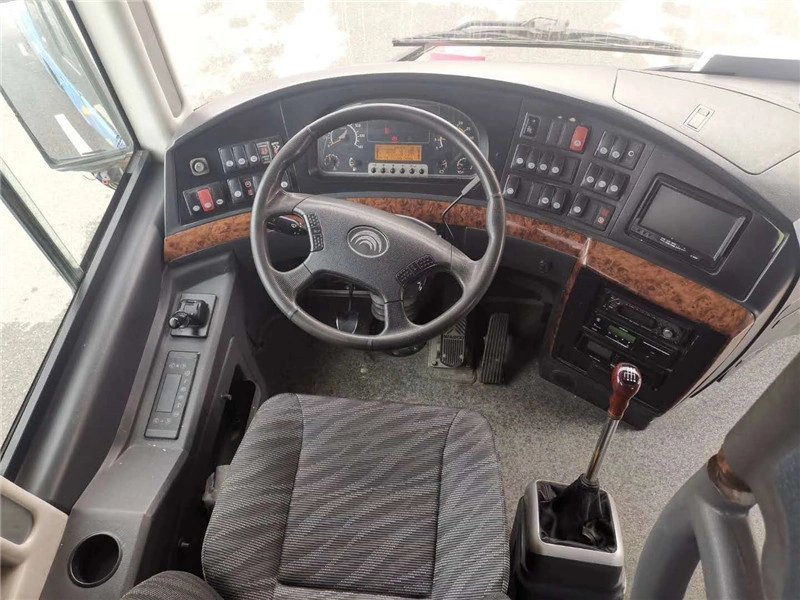

Used Coach Buses Product Description

Coaster Toyota Parts Buses 30 Seater Scale Models Hiace Double Decker Tablet for Africa Car Velour Bus Coach



Coaster Toyota Parts Buses 30 Seater Scale Models Hiace Double Decker Tablet for Africa Car Velour Bus Coach



Coaster Toyota Parts Buses 30 Seater Scale Models Hiace Double Decker Tablet for Africa Car Velour Bus Coach



Coaster Toyota Parts Buses 30 Seater Scale Models Hiace Double Decker Tablet for Africa Car Velour Bus Coach



Coaster Toyota Parts Buses 30 Seater Scale Models Hiace Double Decker Tablet for Africa Car Velour Bus Coach



Coaster Toyota Parts Buses 30 Seater Scale Models Hiace Double Decker Tablet for Africa Car Velour Bus Coach



Product Parameters



Vehicle Parameter

Overall length(mm)12000
Overall breadth(mm)2550
Overall height(mm)3830
Inner height(mm)2350
Wheel Base(mm)6000
Overhang front/rear(mm)2280/3200
Approach/Departure Angle(º)8.5/8.0
First Step Height(mm)≤360
G.V.W(kg)15500
Rated person/Seats50+1
Max. Speed (km/h)90

Engine Parameter

ModelWEICHAI WP10
ManufacturerWEICHAI
Location/fuelRear / Diesel
Engine mode6-cylinder in-line with water cooling, turbo-charging and intercooling
Max. power(kw)/rpm260
Max torque(Nm)/rpm1750
Displacement(ml)10800
Emission standardEuro3
Steering positionleft

Chassis Specification

ItemStandard Spec.
ManufacturerYUTONG Co., Ltd
GearboxFAST manual 6 speed, Dual cable control
ClutchOuter diameter of friction lining 430, hydraulic remote control with air assistance
Front axleDongfeng Dana 5.5T
Rear axleDongfeng Dana 13T,single reduction
SuspensionMulti-leaf spring, telescopic shock absorbers
SteeringRecirculating type ball integral power steering gear
BrakingAir controlled dual-cycle service brake; energy storage spring parking brake,
Fuel Tank235L + 235L
Tyre315/80R22.5
Battery/Dynamo165A.H/70A 24V
Others Centralized automatic lubrication, Automatic slack adjuster

Body Specification

ItemStandard Spec.
Body frameRectangular steel pipes installed and welded
Interior trimcommon interior
Door & Pumpfolding door in front & rear,the rear door behind rear axle
Side windows/Wind screendown 1/3 fuxed up 2/3 push-pull side window, full view doubling front windshield, tempered glass rear windshield
Rearview mirrorManual outer rear-view mirror; circle inner mirror,7″ Monitoring system for reversing and getting off
A/C
Warming systemwater defrost(with pump without heat host)
