Used Crane QY50K- 50ton for Sale

Used Crane Product Description

DimensionUnitQY50K-
Overall lengthmm13750
Overall widthmm2800
Overall heightmm3520
Weight
Total weight in travelkg41000
Front axle loadkg15000
Rear axle loadkg26000
Power
Engine modelWD615.334(domestic III)
Engine rated powerkW/(r/min)247/2200
Engine rated torqueN.m/(r/min)1350/1400
Travel
Max. travel speedkm/h80
Min. turning diameterm24
Min. ground clearancemm291
Approach angle°17
Departure angle°11
Max. grade ability%40
Fuel consumption for 100kmL45
Main performance
Max. rated total lifting capacityt50
Min. rated working radiusm3
Turning radius at turntable tailm3.482
Max. lifting torquekN.m1764
Base boomm11.3
Fully extended boomm42.7
Fully extended boom+ jibm57.7
Longitudinal outrigger spanm5.91
Lateral outrigger spanm6.9
Working speed
Boom luffing times88
Boom full extension times180
Max. swing speedr/min≥2.0
Max. speed of main winch (single rope) (no load)m/min≥110
Max. speed of aux. winch (single rope) (no load)m/min≥110

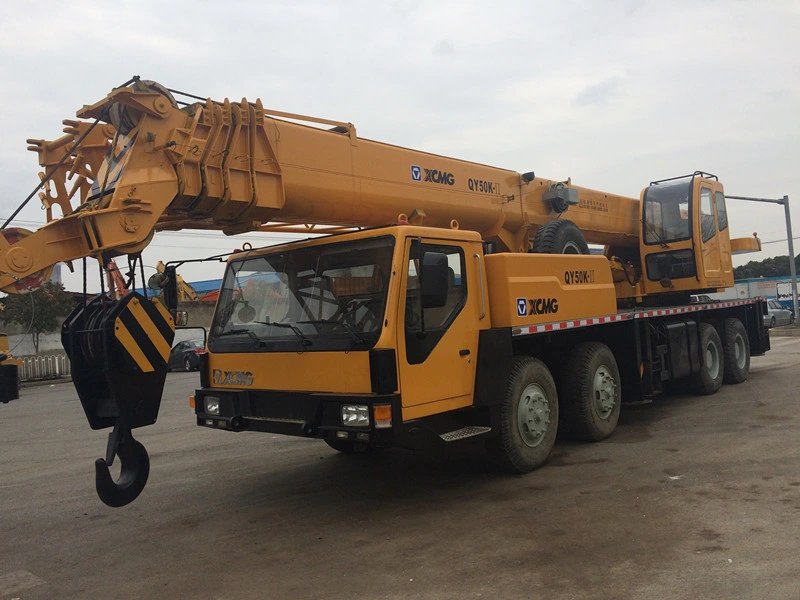

Original Truck Crane 50ton Series Qy50KQy50K-IQy50K-II Mobile Crane



Original Truck Crane 50ton Series Qy50KQy50K-IQy50K-II Mobile Crane



Original Truck Crane 50ton Series Qy50KQy50K-IQy50K-II Mobile Crane
