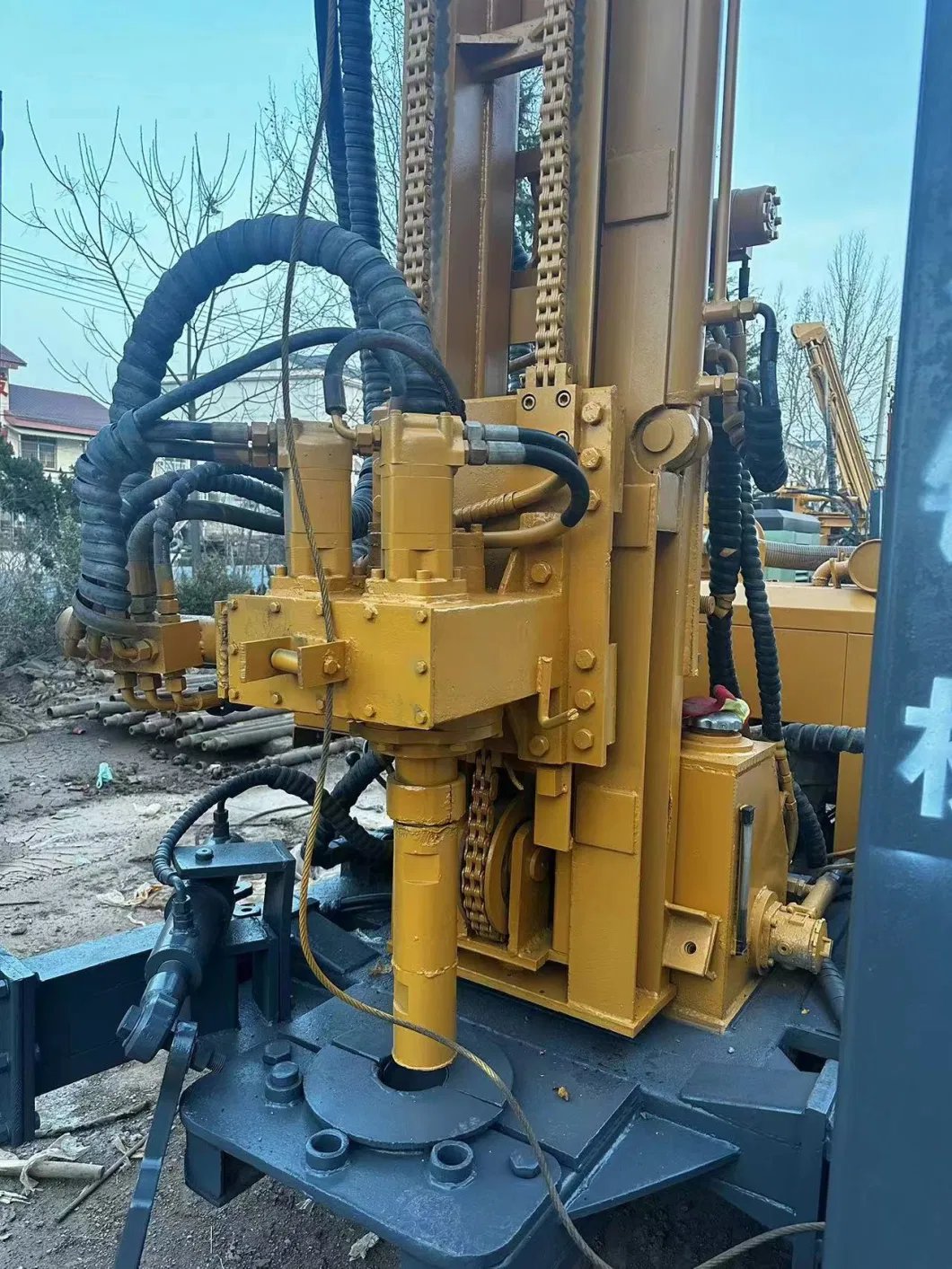

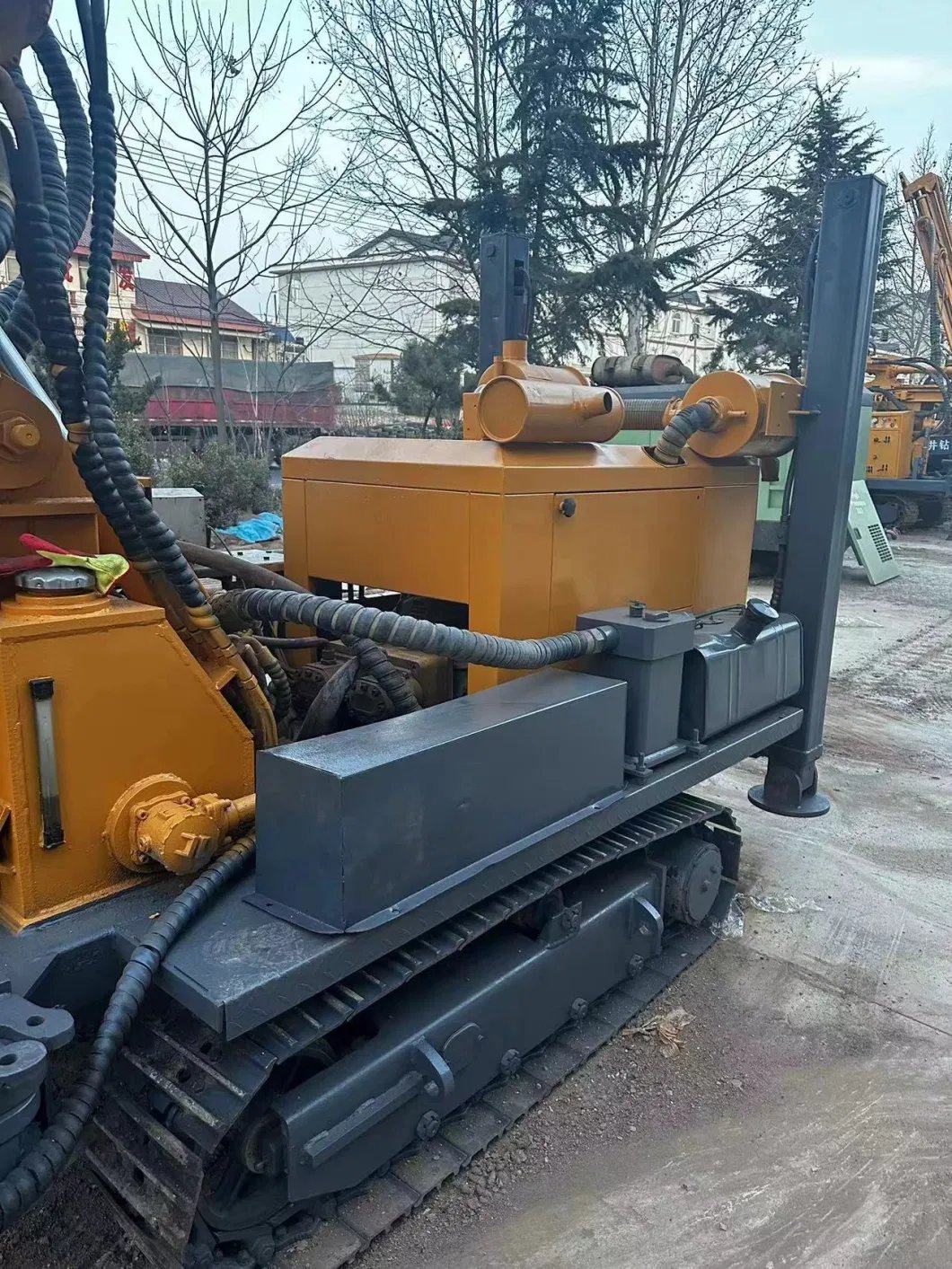

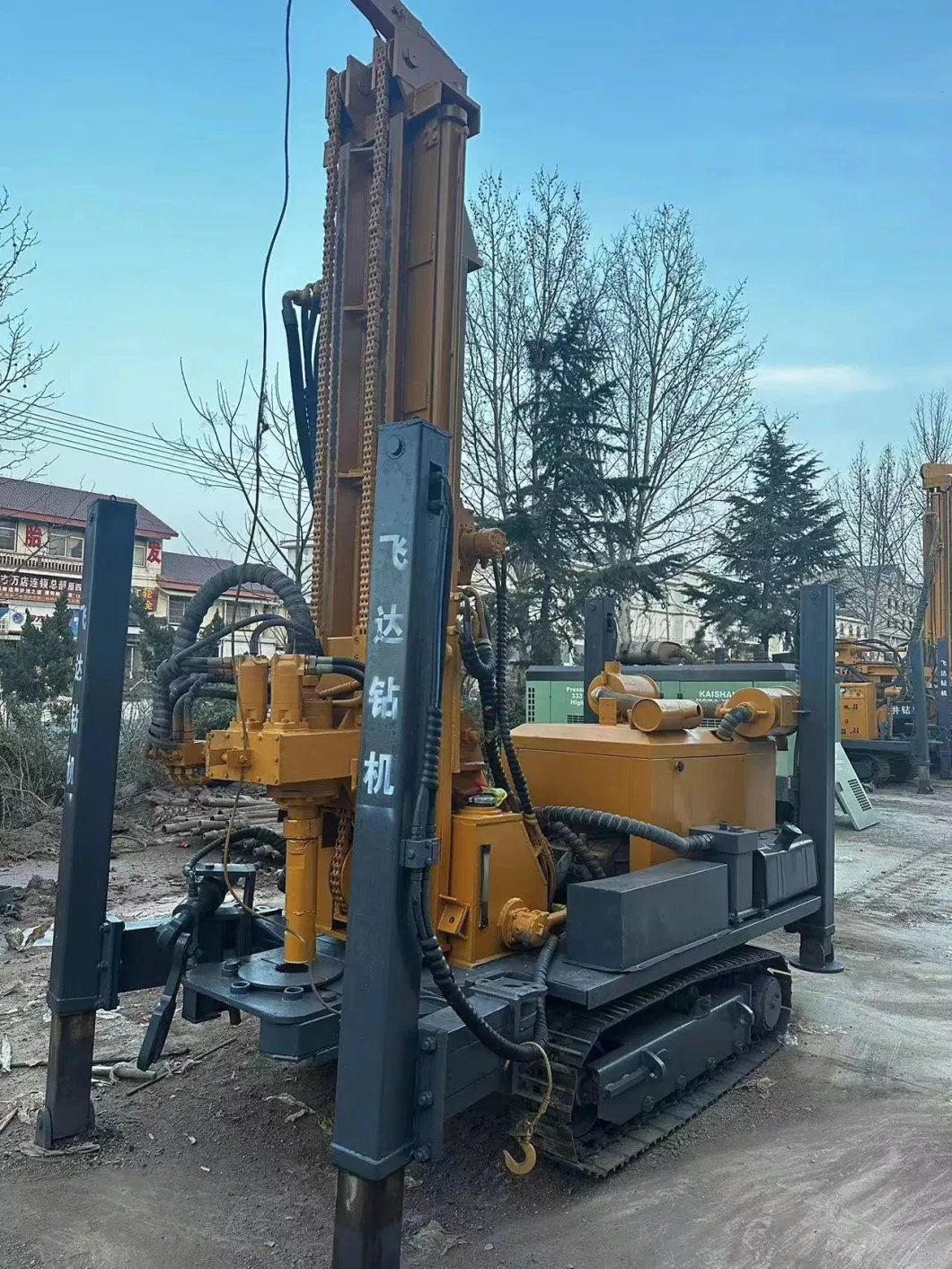

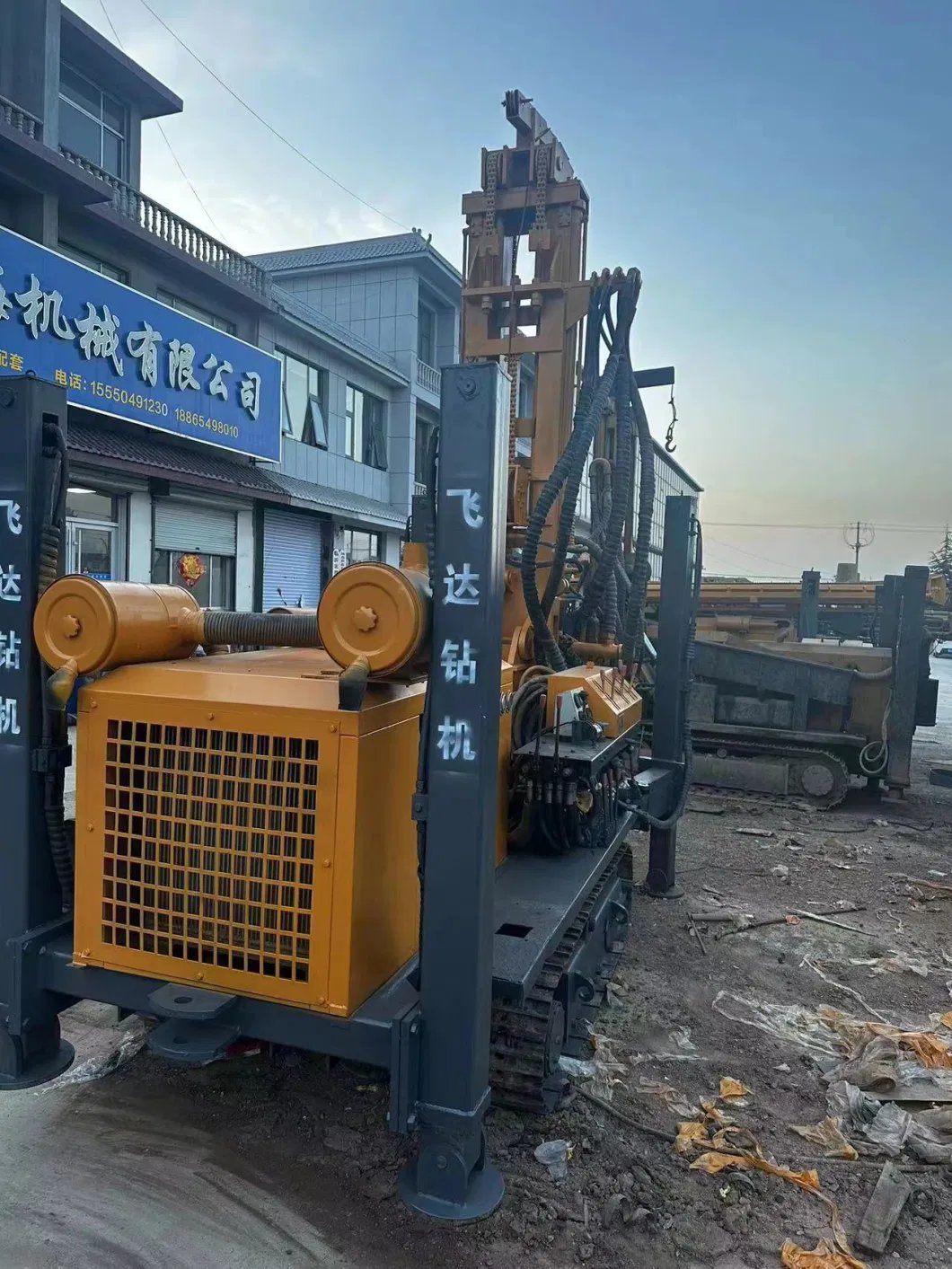

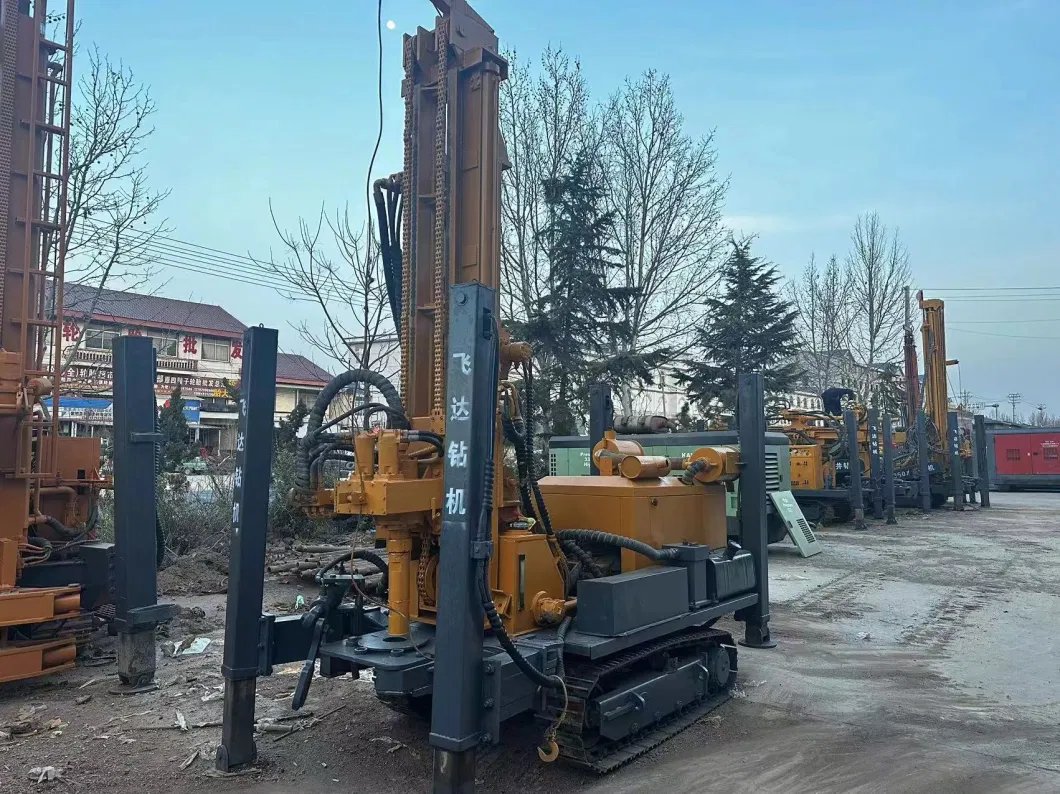

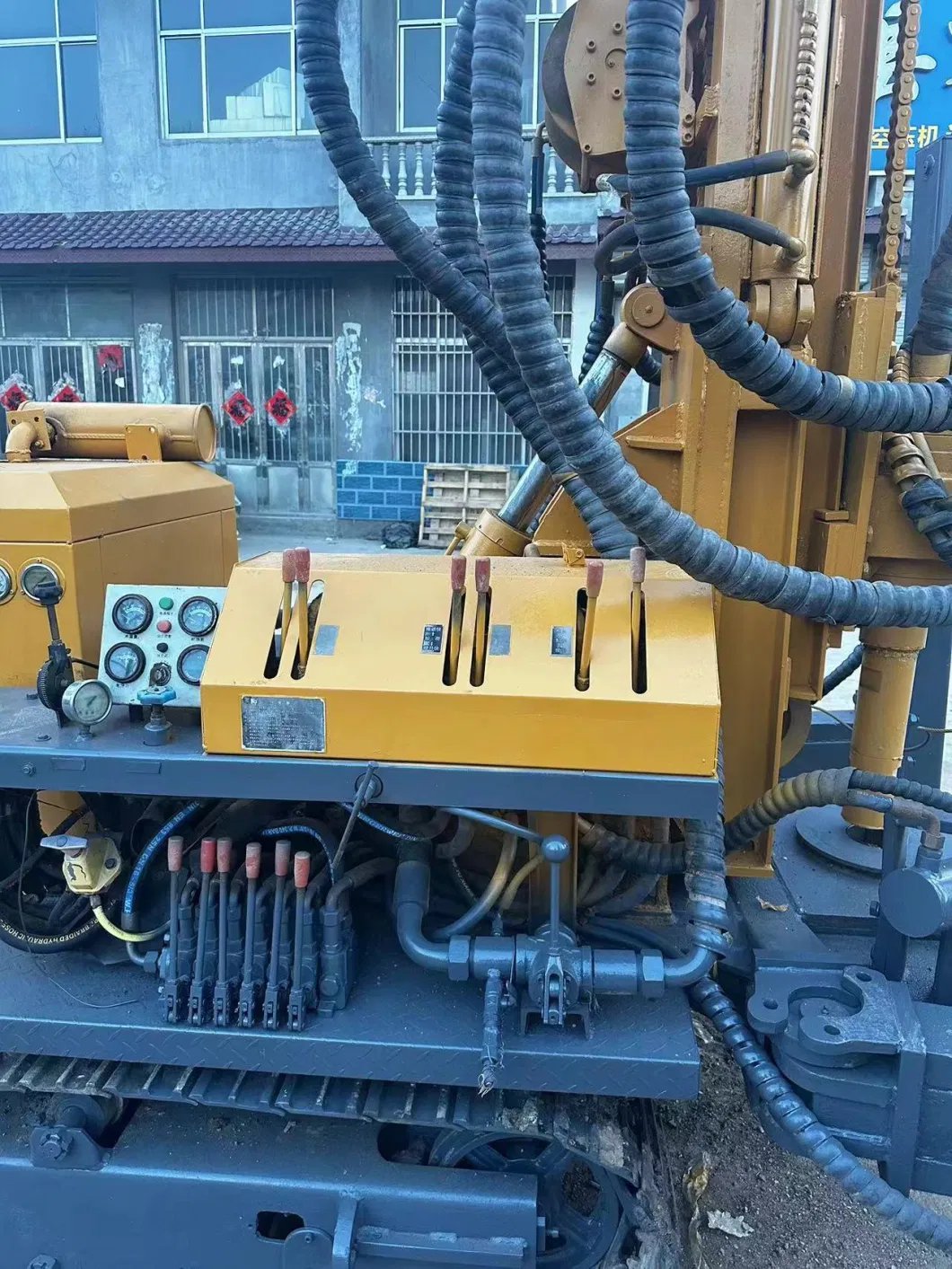

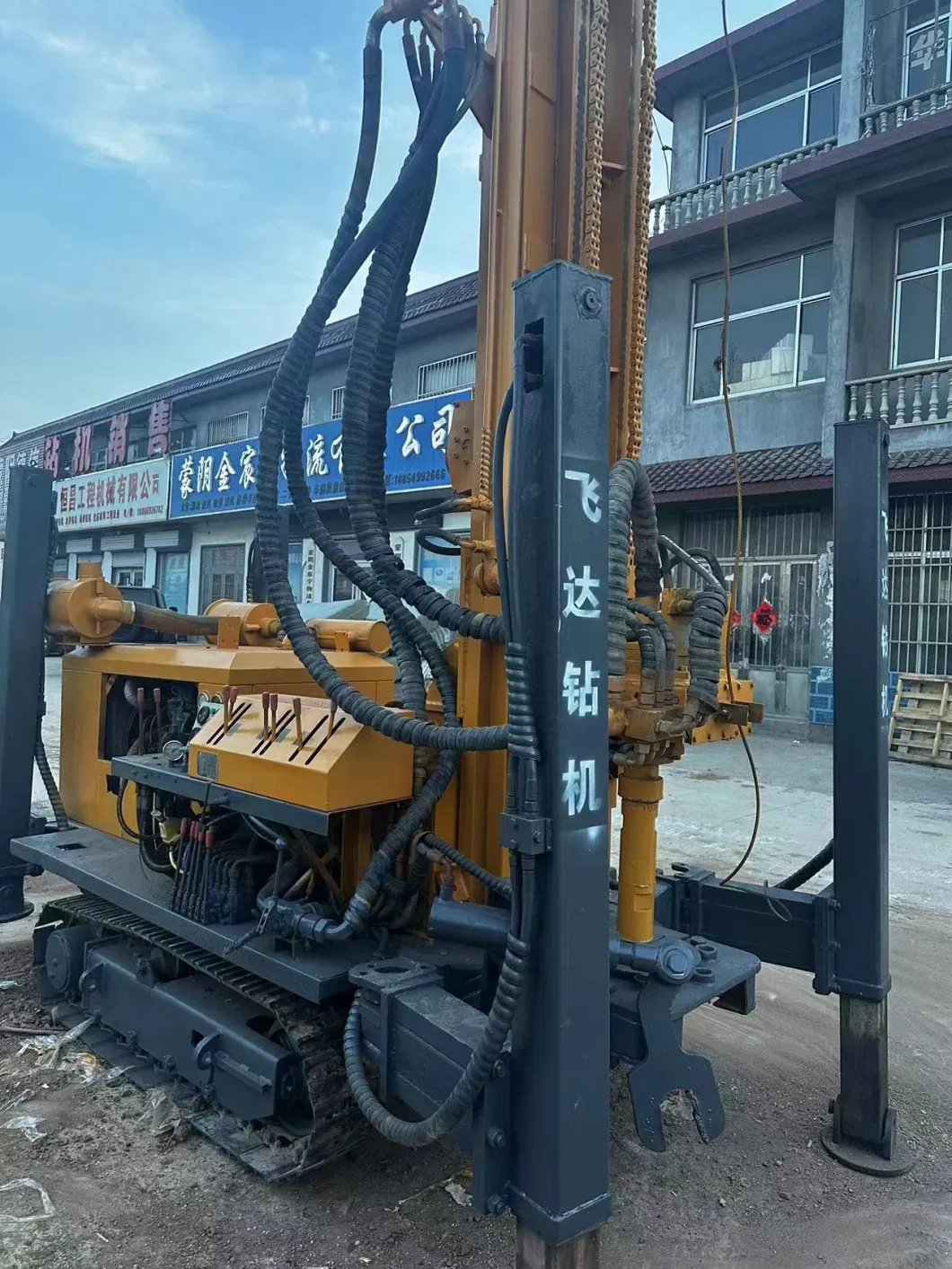

Used Drilling Rig Product Description
Product Parameters
| (T) The weight | 4.8 | (mm) Drill pipe diameter | Φ76 Φ89 |
| (mm) The hole diameter | 140-254 | (m) Drill pipe length | 1.5m 2.0m 3.0m |
| (m) Drilling depth | 180 | (T) Rig lifting force | 12 |
| (m) One-time advance length | 3.6 | (m/min) Rapid rise speed | 20 |
| (km/h) Walking speed | 2.5 | (m/min) Fast feeding speed | 40 |
| (Max.) Climbing angles | 30 | (m) Width of loading | 2.4 |
| (kw) Equipped capacitor | full diesel 55KW neiyun 58KW | (T) Hoisting force of winch | 1 |
| (MPA) Using air pressure | 1.7-2.5 | (N.m) Swing torque | 3200-4600 |
| (m³/min) Air consumption | 17-31 | (mm) Dimension | 4000×1700×2200 |
| (rpm) Swing speed | 45-70 | Equipped with hammer | Medium and high wind pressure series |
| (m/h) The penetration efficiency | 10-35 | (m) High leg stroke | 1.4 |
