Product Description
FYX200 water well drilling rig features: water and gas dual-purpose crawler type 200 meters deep water drilling Features:
1. Equipped with a 65KW Yuchai brand turbocharged engine with strong power;
2. Patented design compound boom, double cylinder lifting;
3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
4. Drilling rig chassis: professional excavator chassis, strong and durable, heavy-duty, wide chain plate, the drilling rig uses rubber tracks to cause little damage to hard roads.
5. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.
6. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump
FYX 200 Water well drilling rig | |
The weight (T) | 5 |
The hole diameter (mm) | 140-254 |
Drilling depth (m) | 200m |
One-time advance length (m) | 3.3 |
Walking speed (km/h) | 2.5 |
Climbing angles (Max.) | 30 |
Equipped capacitor (KW) | 65KW |
Using air pressure (MPA) | 1.7-2.5 |
Air consumption (m3/min) | 17-31 |
Drill pipe diameter (mm) | 76/89 |
Drill pipe length (m) | 1.5m/2.0m/3.0,m |
Rig lifting force (T) | 13 |
Swing speed (rpm) | 45-70 |
Swing torque (N.m) | 3400-4700 |
Dimension (mm) | 3950*1750*2250 |

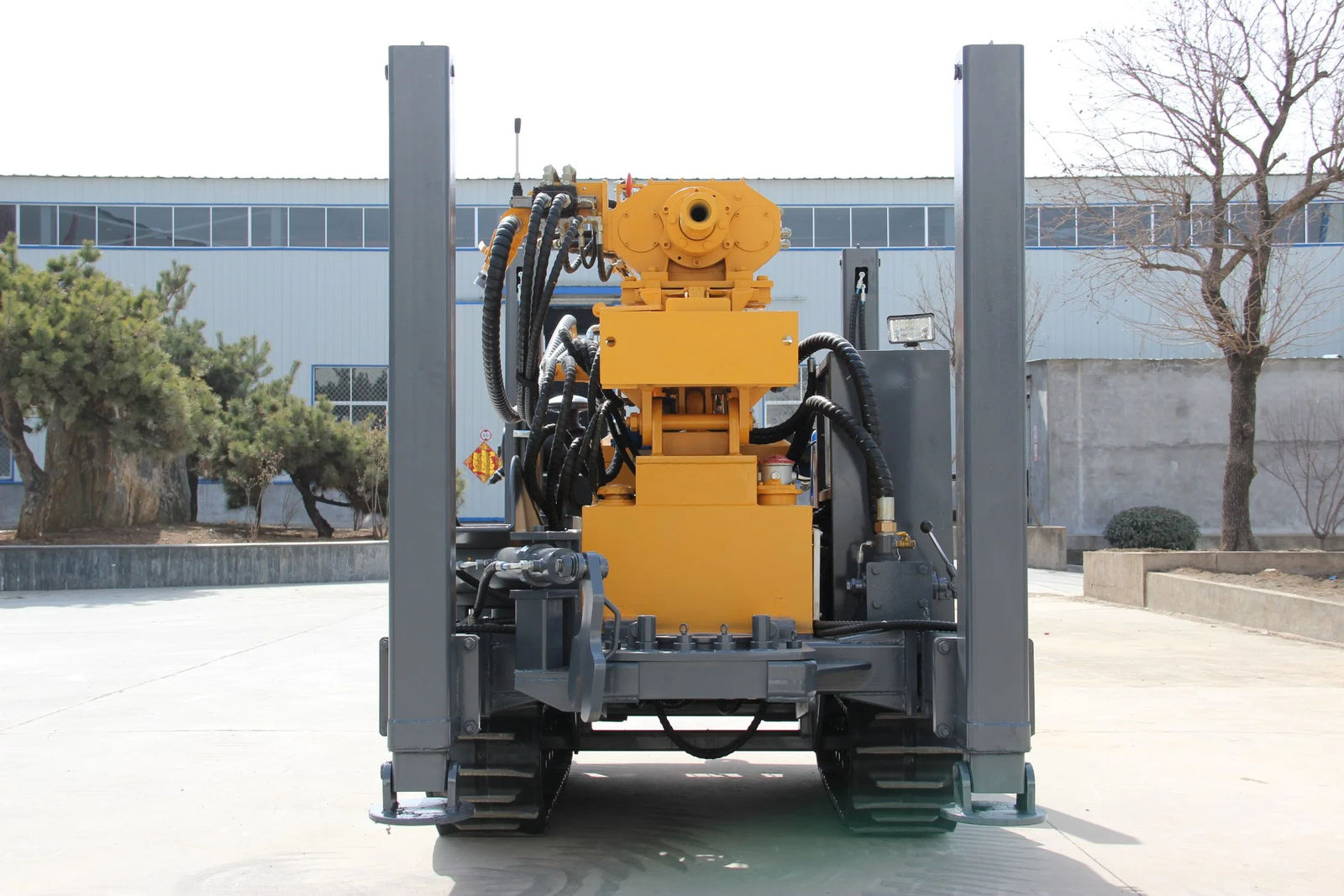

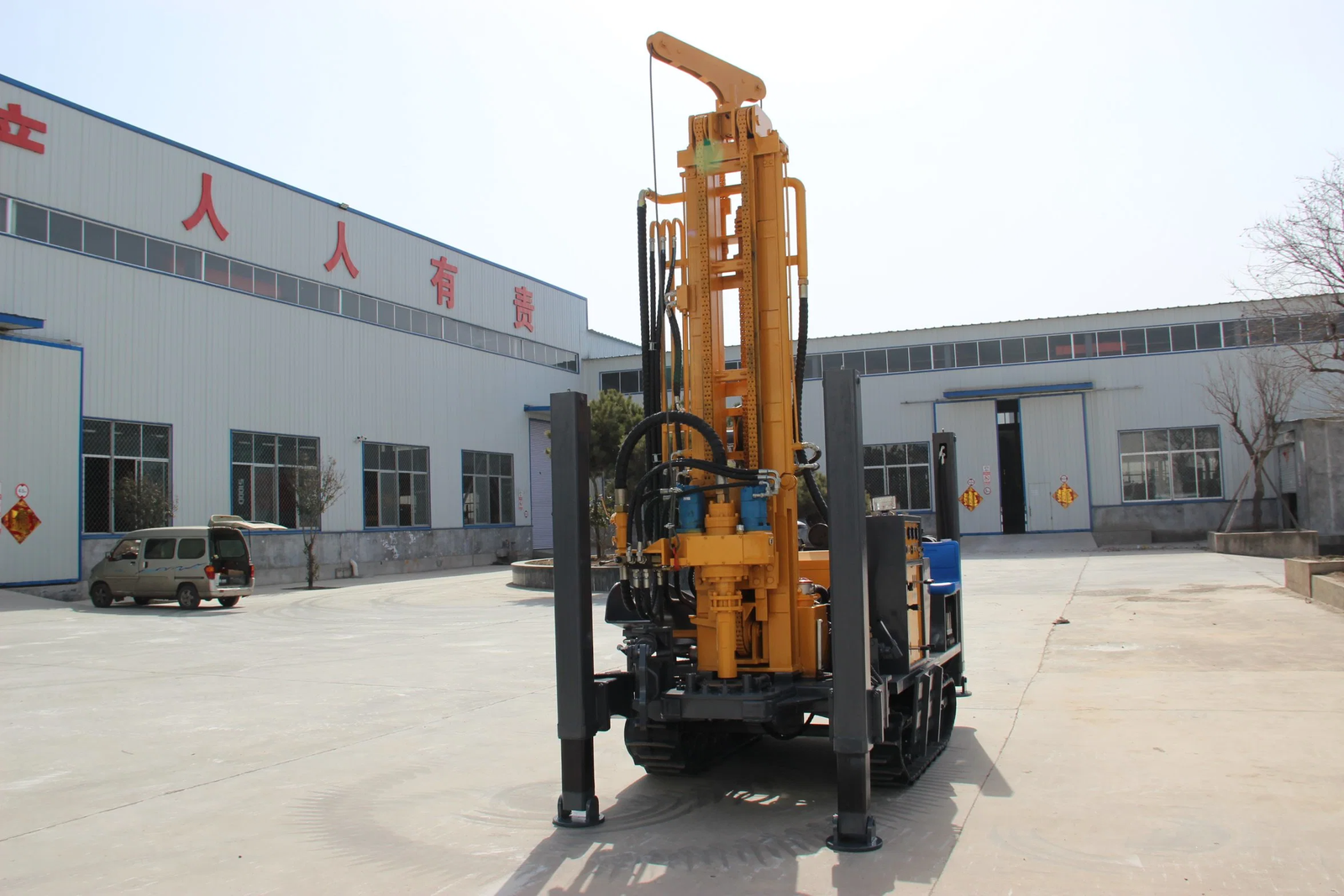

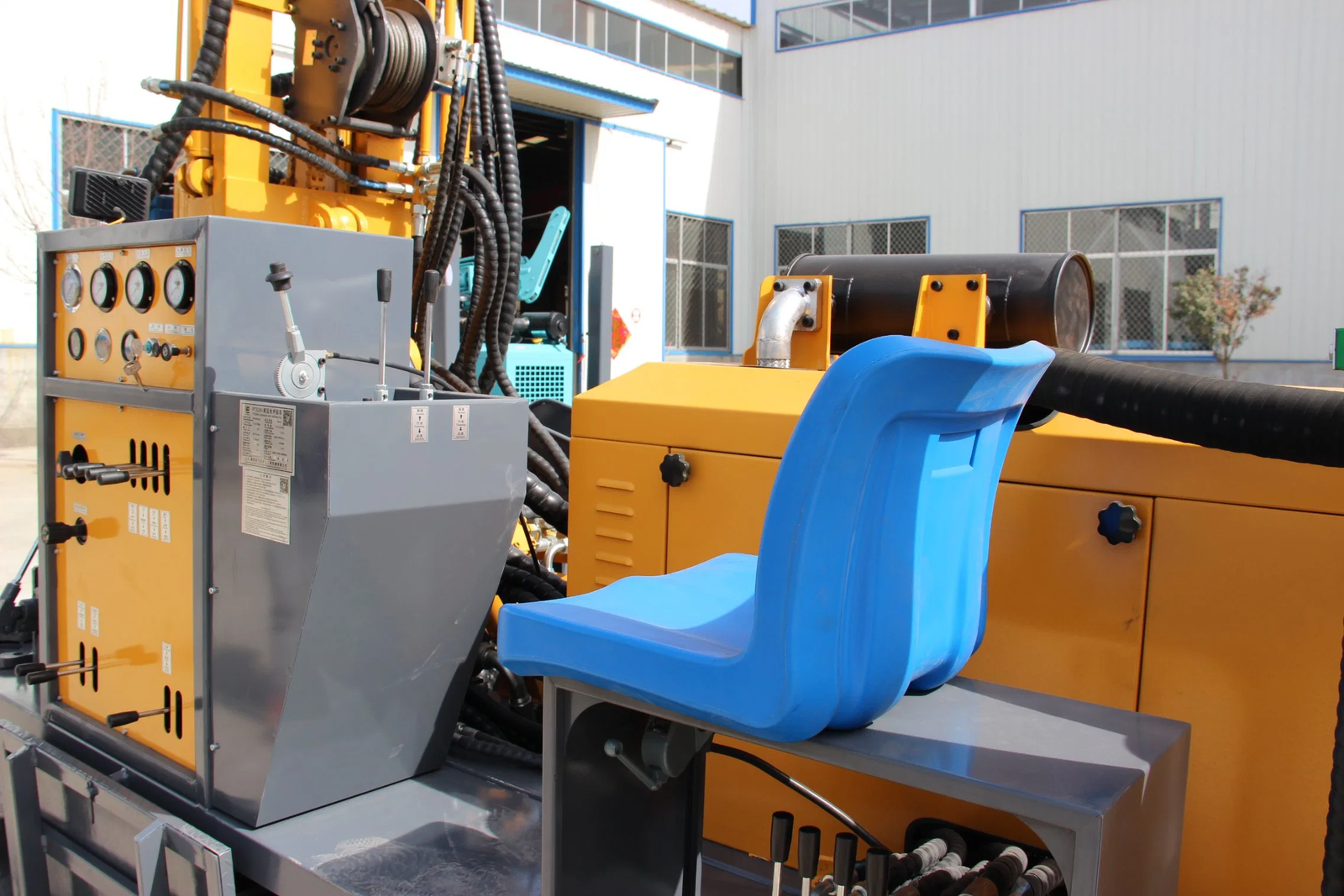

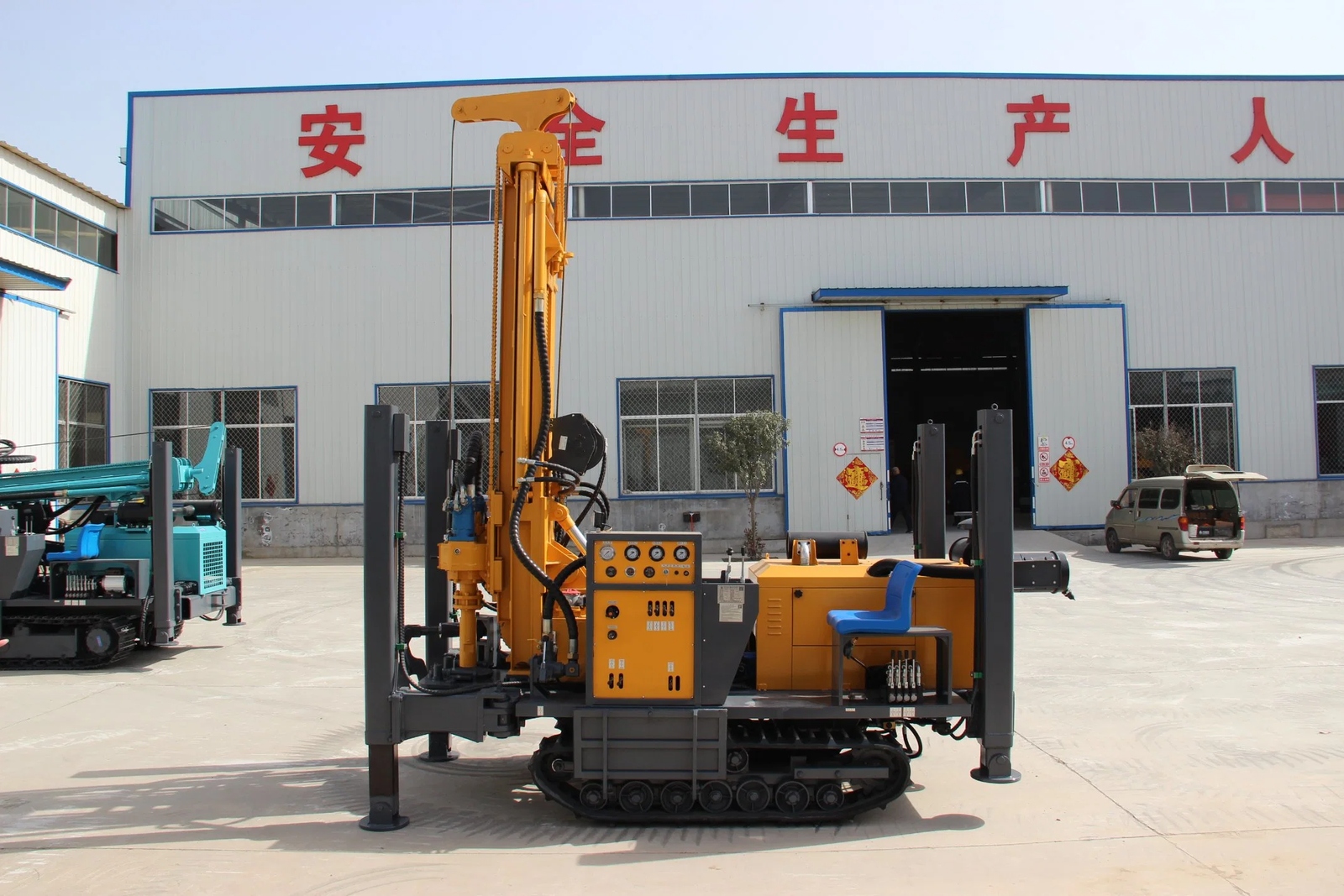

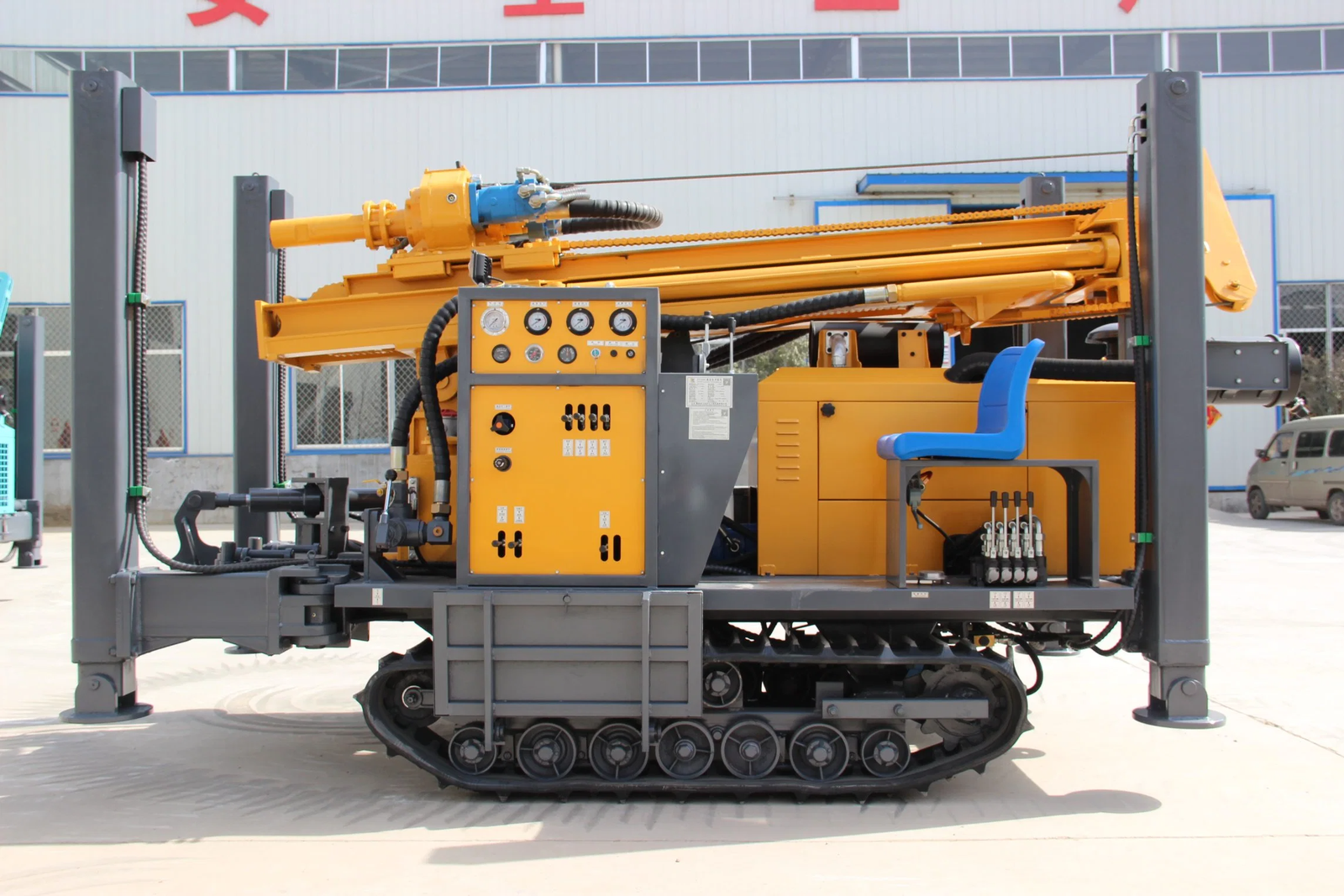

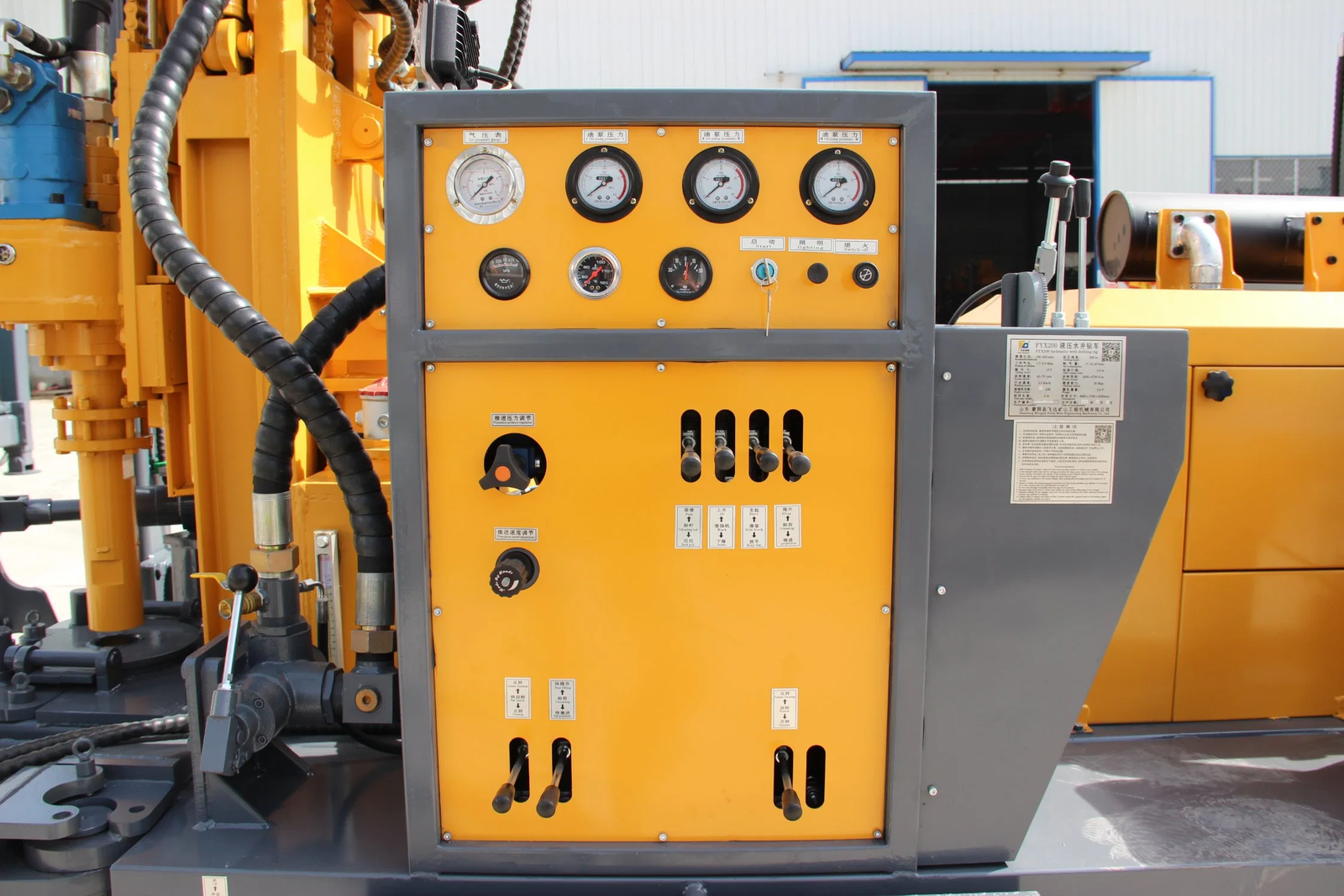

photos for reference:
