Used GX-1600 Coating Machine for Sale

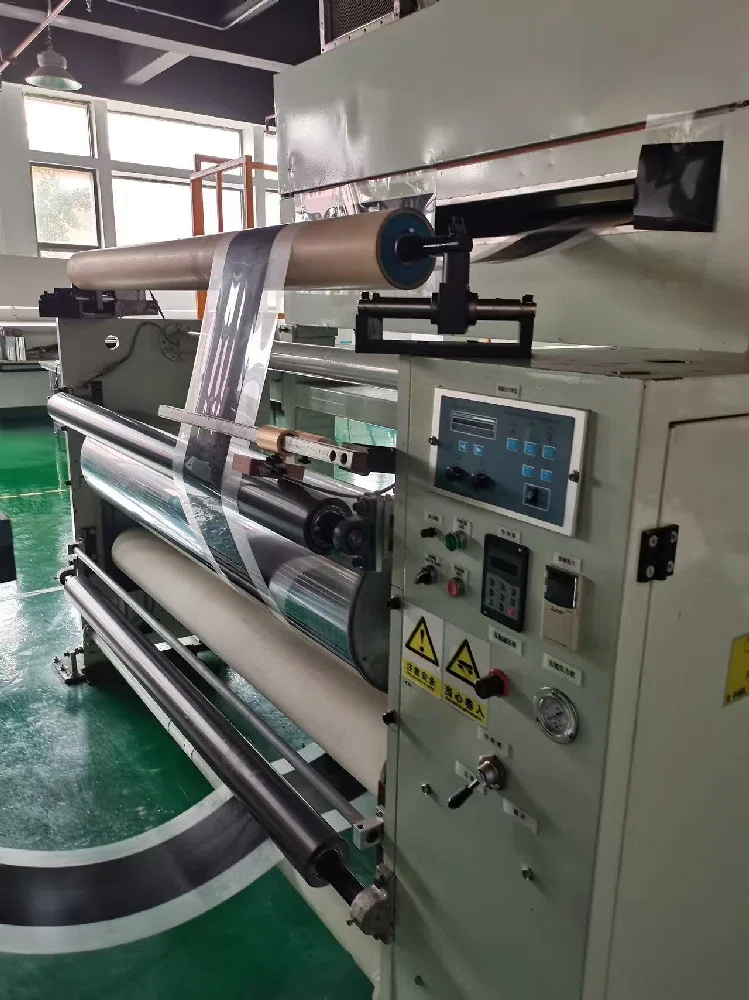

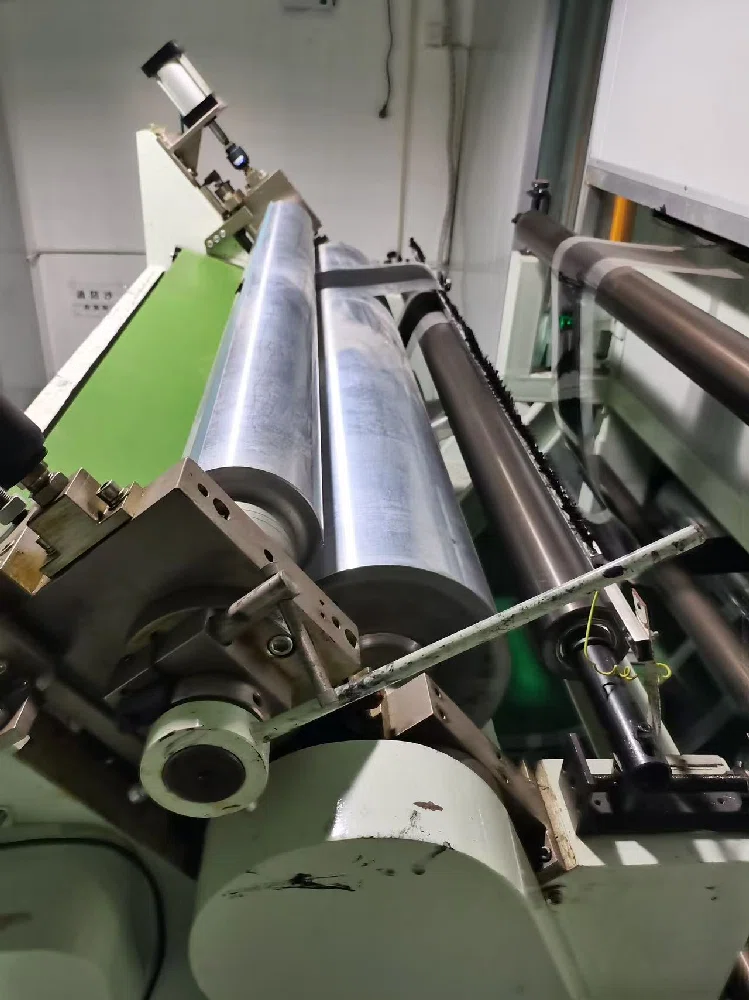

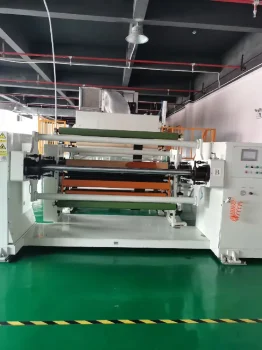

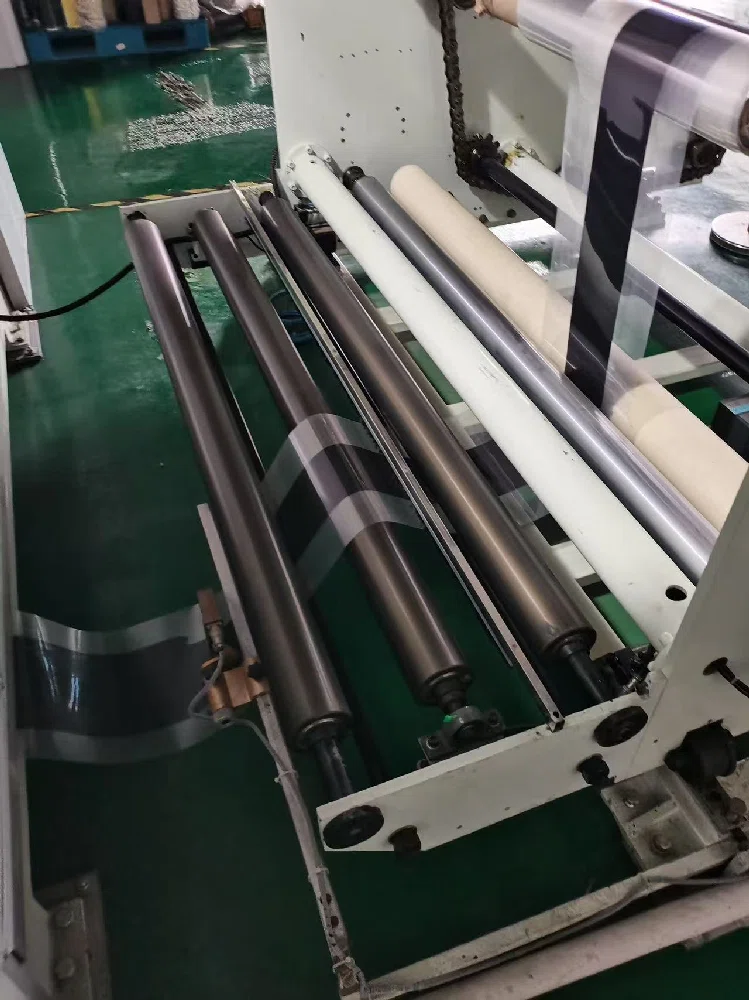

Used GX-1600 Coating Machine

Model: GX-1600

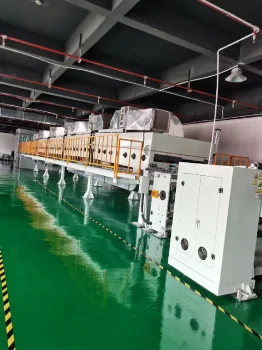

This used coating machine uniformly applies functional slurries such as glue and coatings onto the surface of PET films and other substrates with precisely controllable thickness. It completes the drying and curing through electric heating ovens, while integrating unwinding, traction, and winding processes to realize continuous and large-scale coating processing of substrates. It produces PET-coated products meeting specific performance requirements, which are widely applied in packaging, electronics, new energy, optical materials, and other fields. The table below provides more details about this machine. If you have any questions, please feel free to click the button to contact us.

Basic Info.

ModelGX-1600ConditionUsed
SubstratePET filmEffective Coating Width1600mm
Roller Surface Width1700mm (aluminum alloy guide roller, surface anodized)Unwinding Diameterφ800mm
Finished Product Winding Diameterφ800mm (large roll) (core inner diameter 76.2mm)Drying & Heating MethodElectric heating
Temperature Control System50~150℃±3℃ (oven temperature during operation)Winding Edge Neatness±1.5mm
Mechanical Speed2~10m/min (variable frequency speed regulation)Total Installed Power~250KW (heating power approx. 200kw)
Coating Accuracy±0.001mm (dry glue), minimum wet glue coating weight 0.02mmCountry of OriginChina
Main Configuration

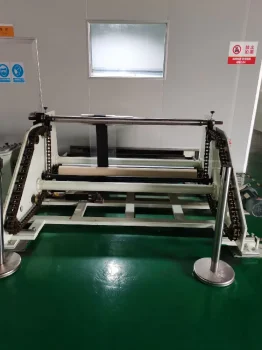

Unwinding Mechanism1 setHeating System5 sets

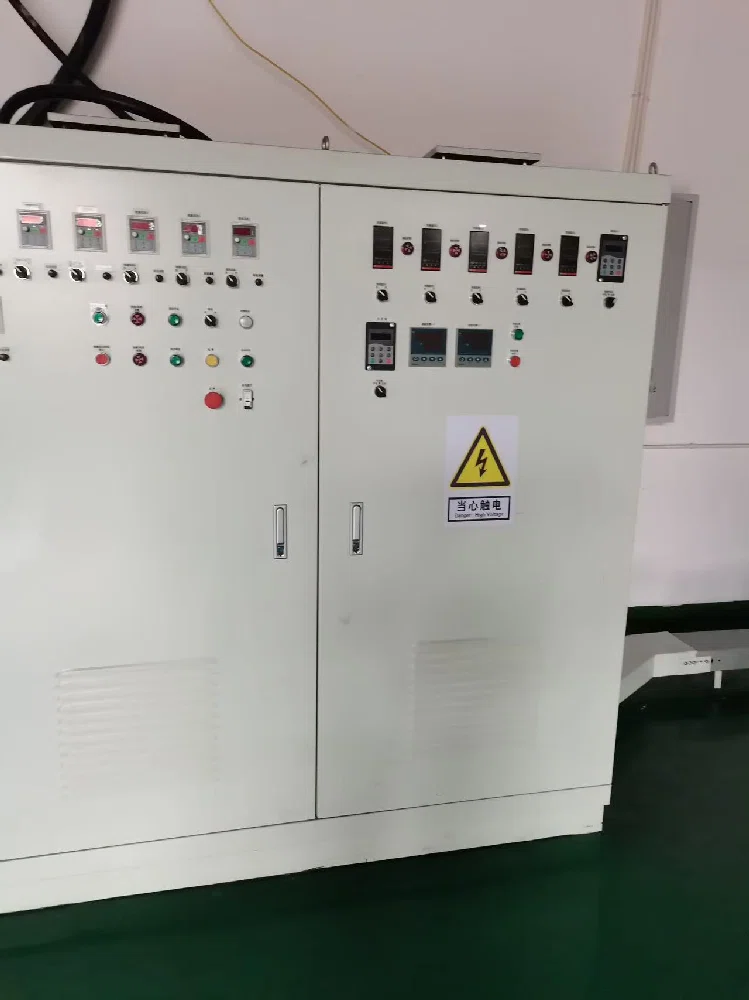

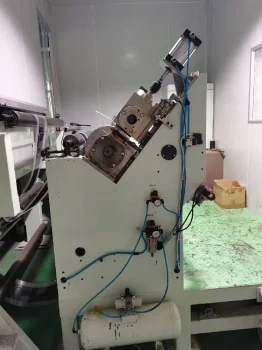

Coating Head1 setElectrical Control System1 set
OvenExhaust System1 set
Cooling & TractionFrame1 set
