Basic Info.

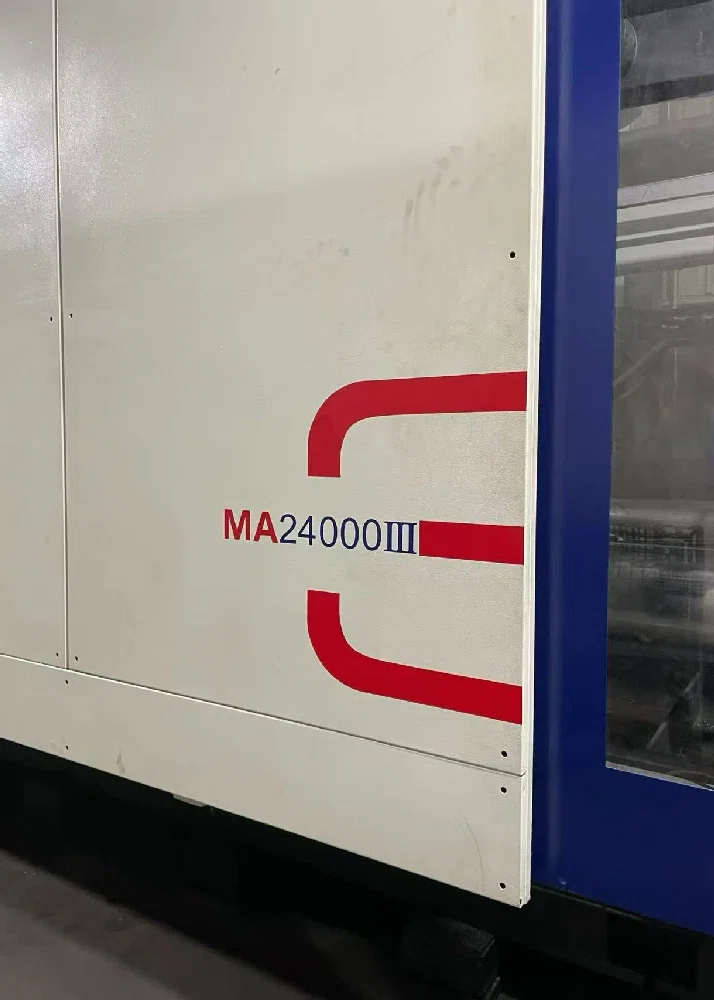

| Model | MA24000III | Condition | Used |
| Screw Diameter | 150 / 170 mm | Injection Pressure | Approx. 150 – 180 MPa |
| Theoretical Injection Volume | 26020 cm³ | Plasticizing Capacity | Approx. 1200 – 1500 g/s (GPPS/HDPE) |
| Injection Weight | 26020 g (PS) / Approx. 43 kg | Screw Speed | 0 – 120 rpm |
| Injection Rate | Approx. 1500 – 2000 g/s | Maximum Mold Thickness | Approx. 1300 – 1500 mm |
| Mold Opening Stroke | Approx. 1600 – 1800 mm | Minimum Mold Thickness | Approx. 700 – 800 mm |
| Distance Between Tie Bars | Approx. 2160 × 1900 mm | Ejection Stroke | Approx. 250 – 300 mm |
| Ejection Force | Approx. 200 – 250 kN | Pump Motor Power | Approx. 269 kW |
| Machine Overall Dimensions | Approx. 16000 × 3500 × 4500 mm | Heating Power | Approx. 40 – 50 kW |
| Machine Weight | Approx. 120 – 150 T | Manufacture Date | 2021 |
| Brand | HAITIAN | Origin | China |
