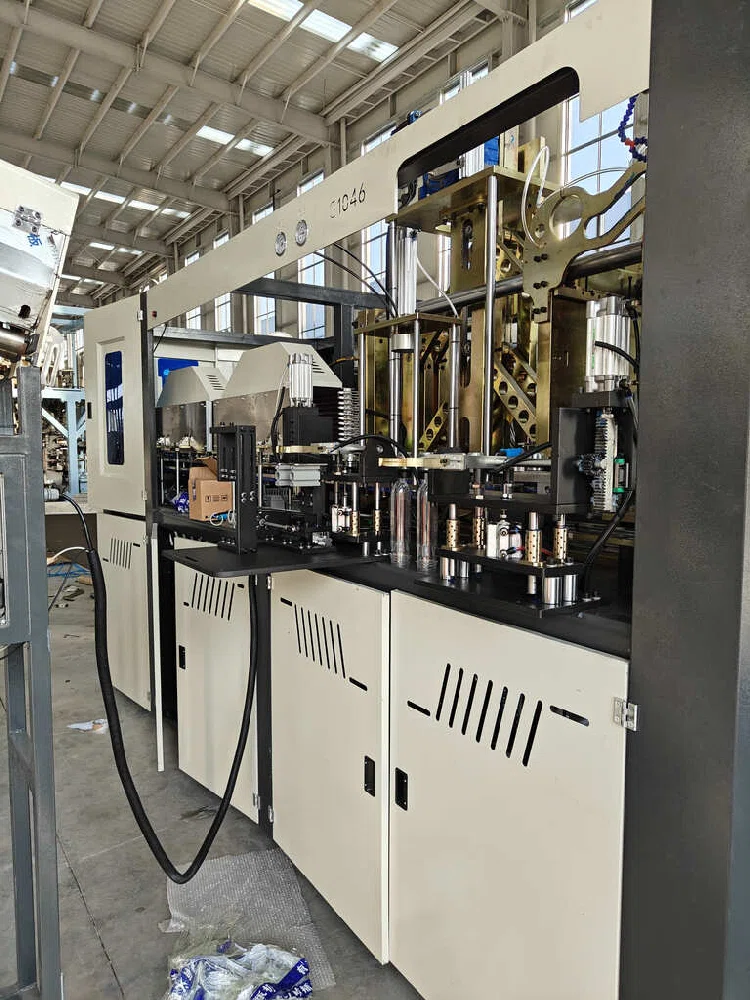

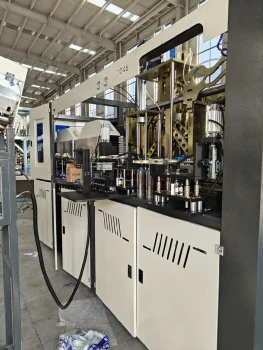

Used Huangyan 5L Bottle Blowing Machine for Sale

Used Packaging Machine /
Used Huangyan 5L Blow Molding Machine for Sale2
Used Huangyan 5L Blow Molding Machine for Sale3
Used Huangyan 5L Blow Molding Machine for Sale4
Used Huangyan 5L Blow Molding Machine for Sale
Used Huangyan 5L Blow Molding Machine for Sale1

Used Huangyan 5L Bottle Blowing Machine

Brand: Huangyan
Model: 5L
The purpose of a PET bottle blowing machine is to rapidly produce plastic bottles of various shapes and capacities by heating PET plastic preforms and using high-pressure gas to blow-mold them into shape. The table below provides further details about this machine. If you have any questions, please feel free to click the button to contact us.

Open Chat

Basic Info.

Model5 LConditionUsed
Max. Product Volume20LMax. Product Diameter280mm
Product Neck Size100mmMax. Product Height480mm
Max. Suitable Preform Height<230mmClamping Stroke350mm
Bottom Mold Stroke50mmBottle Pitch300
Standard Mold Thickness360mmOutput (Bottles/Hour)400~600 Bottles/Hour
Mold Cavity Quantity1Preform Holder Quantity70 Heating Positions
Voltage220/380VFrequency50/60Hz
Approximate Operating PowerApprox. 65kwAir PressureApprox. 1.0～30kpa
Air Consumption6m³/minPressure0.2mpa
Main Machine + Heater + Electrical Cabinet, etc.Approx. 4.5Main Machine (L×W×H)4000mm×2000mm×2600mm
BrandHuangyanCountry of OriginChina
