Used SMTCL CW61100B Horizontal Lathe for Sale

Used SMTCL CW61100B Horizontal Lathe

Brand: SMTCL
Model: CW61100B
Production year: 2015
The used horizontal lathe is a heavy-duty general-purpose metal-cutting machine tool, mainly used for the precision machining of large rotating parts such as shafts and discs made of various metals, including turning internal and external cylindrical surfaces, conical surfaces, end faces, arc surfaces, as well as various metric, inch, module, and diametral pitch threads. It can also perform auxiliary processes such as drilling, hole expanding, reaming, boring, and rolling, and is widely applied in industries such as machinery manufacturing, automotive, mining, energy, and heavy equipment. The table below provides more information about this machine; if you have any questions, please feel free to click the button to contact us.

Basic Info.

ModelCW61100BConditionUsed
Swing over bed1000mmMax. turning length3000mm
Swing over carriage610mmGuideway width750-755mm

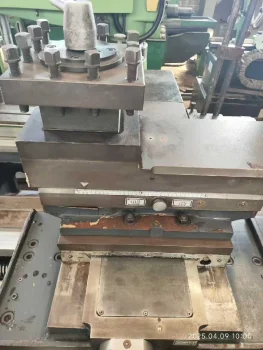

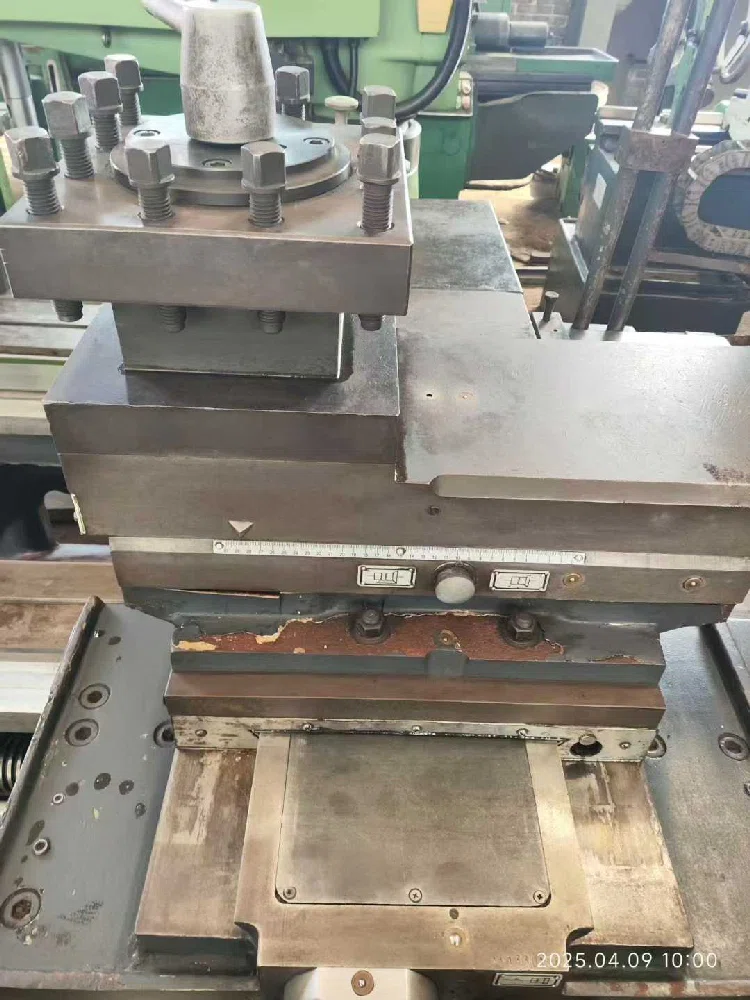

Tool post type4-station electric tool postCross travel of lower tool post520mm
Spindle bore diameter130mmSpindle speed range8-800rpm
Main motor power22kWTailstock quill diameter /travel150/250mm
Max. workpiece load6000kgMachine weight10700-11000kg
Overall dimensions (L×W×H)6100×2150×1700mmDATE OF PRODUCTION2015
BrandSMTCLCountry of OriginChina
