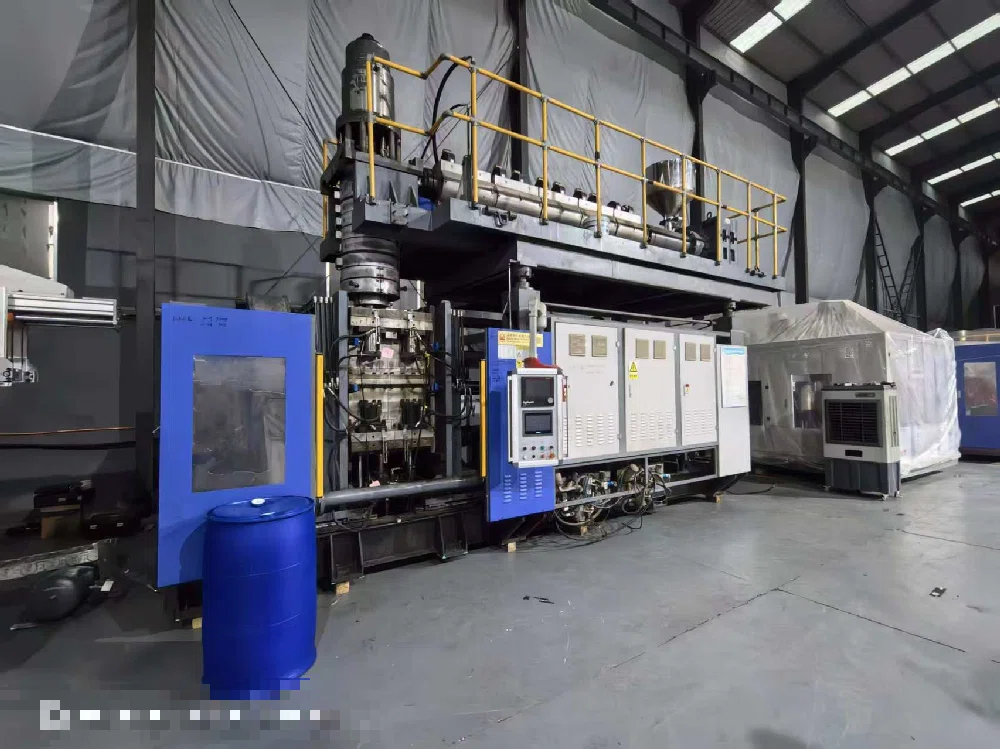

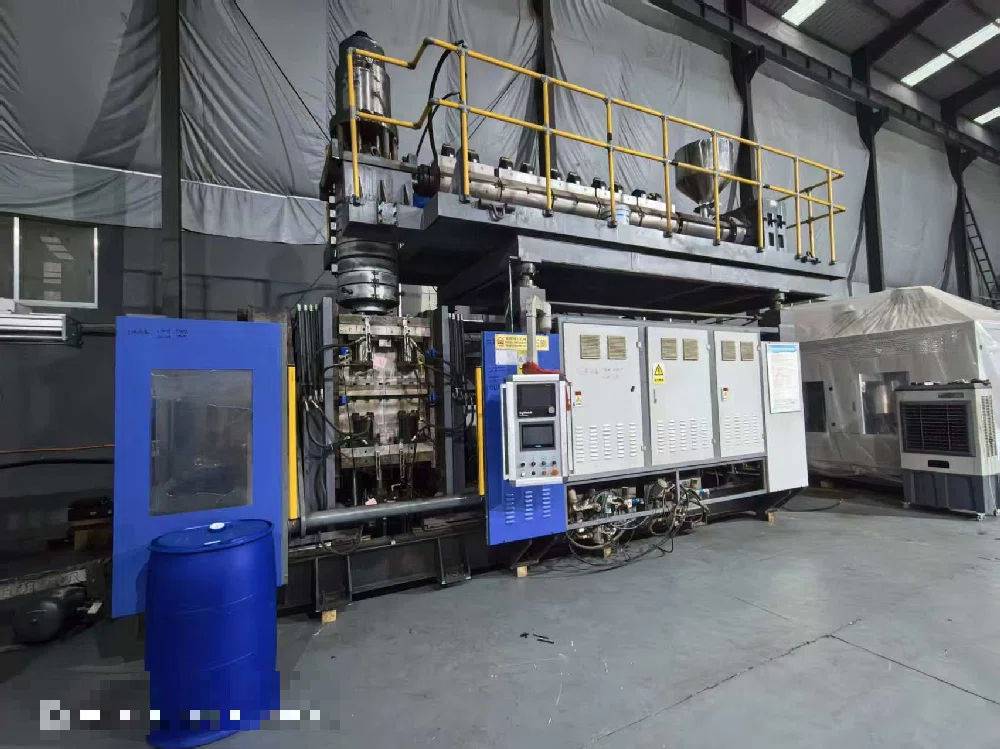

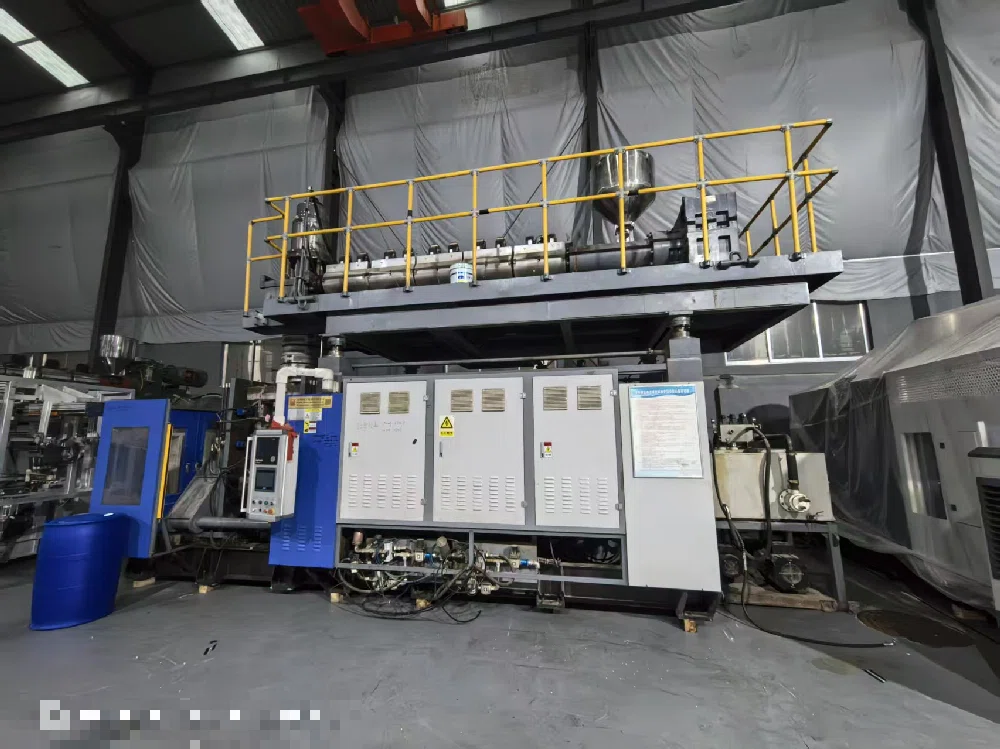

Used TONGDA TDB-250F Plastic Blow Moulding Machine

Brand: TONGDA
Model: TDB-250F
Production: 2021
This used plastic blow moulding machine adopts the extrusion accumulator blow moulding process. Using HDPE and other plastic materials as raw materials, it integrates screw melting and plasticization, accumulator material storage, mold clamping, high-pressure air blowing, and cooling shaping in one continuous process for mass production. It is used to manufacture large-capacity hollow packaging products such as plastic chemical drums and large plastic storage tanks, and is widely applied in the chemical, logistics, and daily chemical industries. The table below provides more details about this machine. If you have any questions, please feel free to click the button to contact us.

GET QUOTE

Basic Info.

ModelTDB-250FConditionUsed
Equipment NamePlastic blow moulding machineMax. Product Volume250L
Dry Cycle300 p/hOutput of HMW HDPE380 kg/h
Rated Voltage3φ 380VRated Frequency50HZ
Max. Die Diameter290 mmCapacity of Accumulator Head22 L
Die Head Heating Zone7Die Head Heating Power45 KW
Platen Distance800~1800 mmClamping Force770 KN
Screw Heating Power53 KWScrew Motor Power132 KW
Total Power304.5 KWWater consumption300 L/min
Air consumption2 m³/minManufacturerSuzhou TONGDA Machinery
Production Date2021OriginChina
