Used Xa5032 Vertical Milling Machine for Sale

Used Industrial Equipment /
Used Xa5032 Vertical Knee Type Milling Machine for Sale
Used Xa5032 Vertical Knee Type Milling Machine for Sale1
Used Xa5032 Vertical Knee Type Milling Machine for Sale2

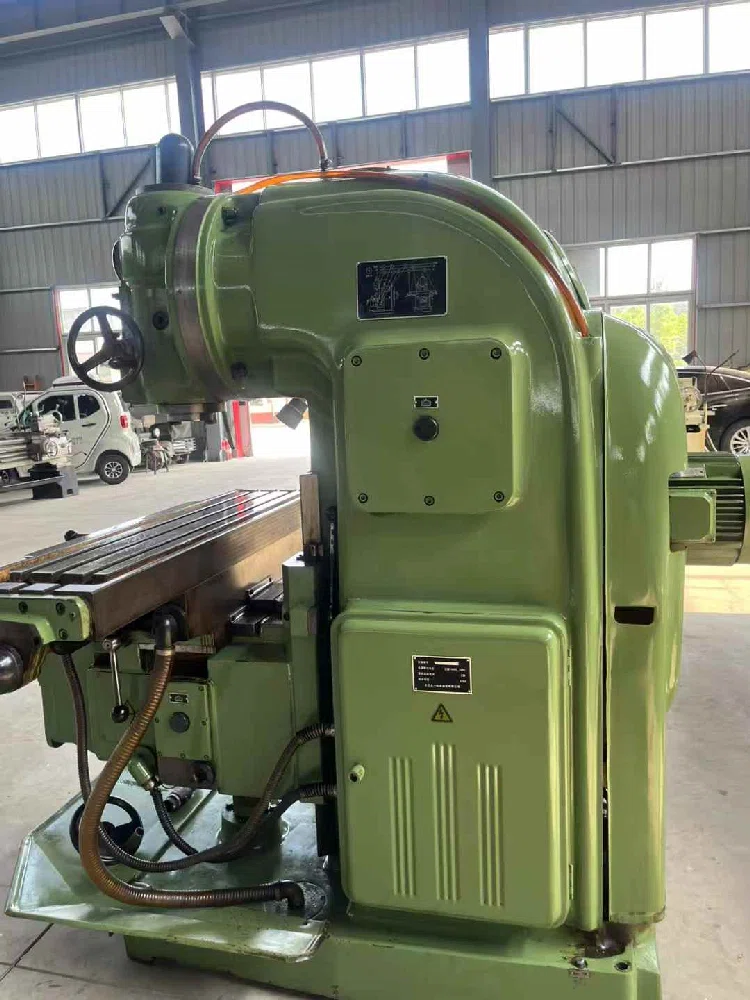

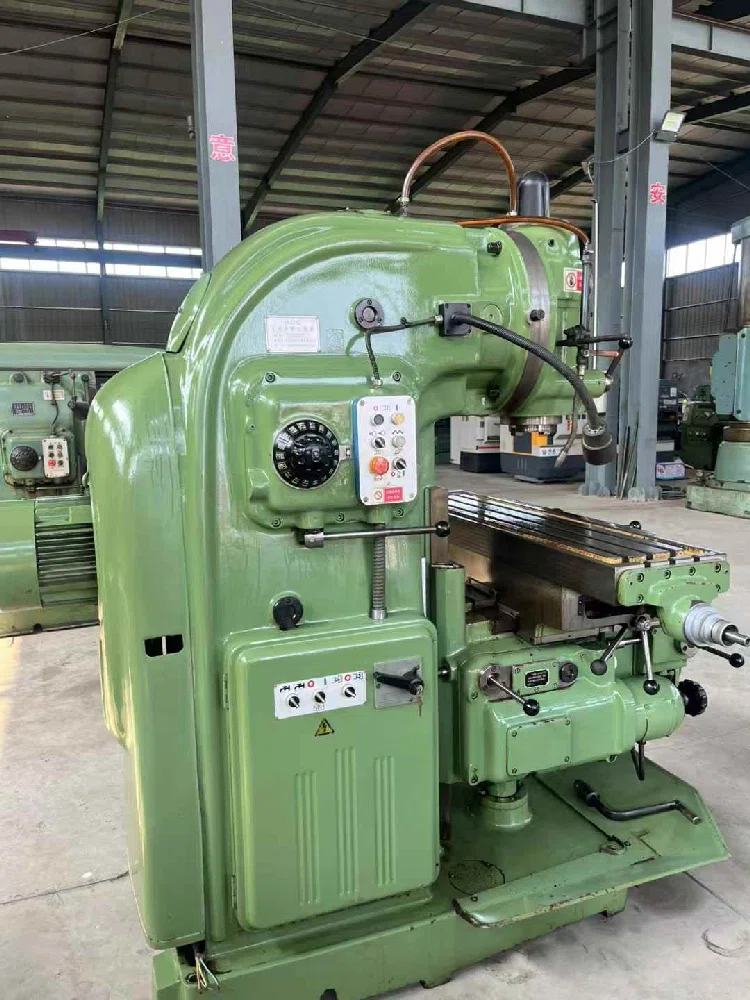

Used Xa5032 Vertical Milling Machine

This is a used Vertical Knee-Type Milling Machine, Model: XA5032, Manufactured in 2014. The vertical knee-type milling machine is used mainly for milling flat surfaces, grooves, steps, gears, and various formed contours on workpieces. Its vertical spindle design, combined with a vertically adjustable table, makes it particularly suitable for batch or single-piece production of small to medium-sized parts using end mills and face mills. It is widely applied in machinery manufacturing, mold making, maintenance workshops, and tool manufacturing industries. The following table provides additional information about this machine. If you have any questions, please don’t hesitate to click the button to contact us.

PRICE: $ 6,688
Open Chat

Basic Info.

ModelXa5032ConditionUsed
Table Longitudinal Stroke (X-axis)700/680mmTable Transverse Stroke (Y-axis)255/240mm
Table Vertical Stroke (Z-axis)370/350mmDistance from Spindle End Face to Table Surface45~415mm
Spindle Taper7:24 ISO50Spindle Bore Diameter29mm
Spindle Speed Range30~1500 (18 steps)r/minSpindle Speed Steps18 steps
Spindle Axial Movement Distance85mmMaximum Swivel Angle of Vertical Milling Head±45°

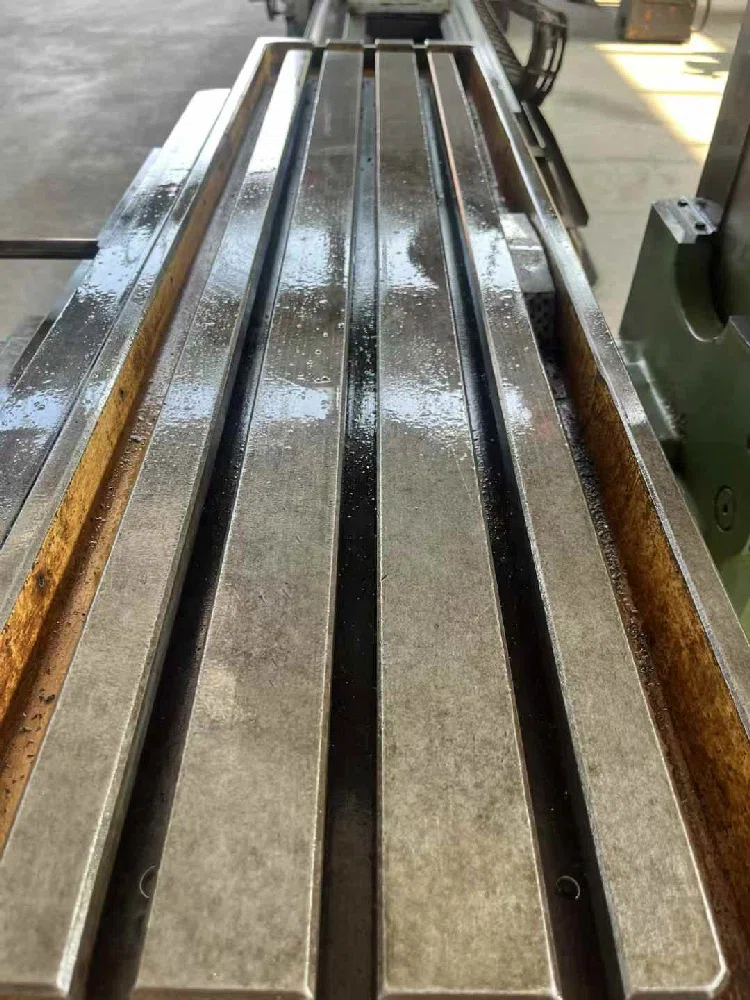

Table Size (W × L)320×1325mmTable T-slots3 个 (18×70mm)
3 slots (18×70mm)
Maximum Table Load Capacity500kgOverall Dimensions (L × W × H)2272×1770×2094mm
Net Weight of Machine ToolApprox. 2800kgDate of Production2014
OriginChina
