Used XL6436 Universal Milling Machine for Sale

Used CNC Machine /
Used XL6436 Universal Milling Machine 1
Used XL6436 Universal Milling Machine 2
Used XL6436 Universal Milling Machine 3
Used XL6436 Universal Milling Machine 4
Used XL6436 Universal Milling Machine 5
Used XL6436 Universal Milling Machine for

Used XL6436 Universal Milling Machine

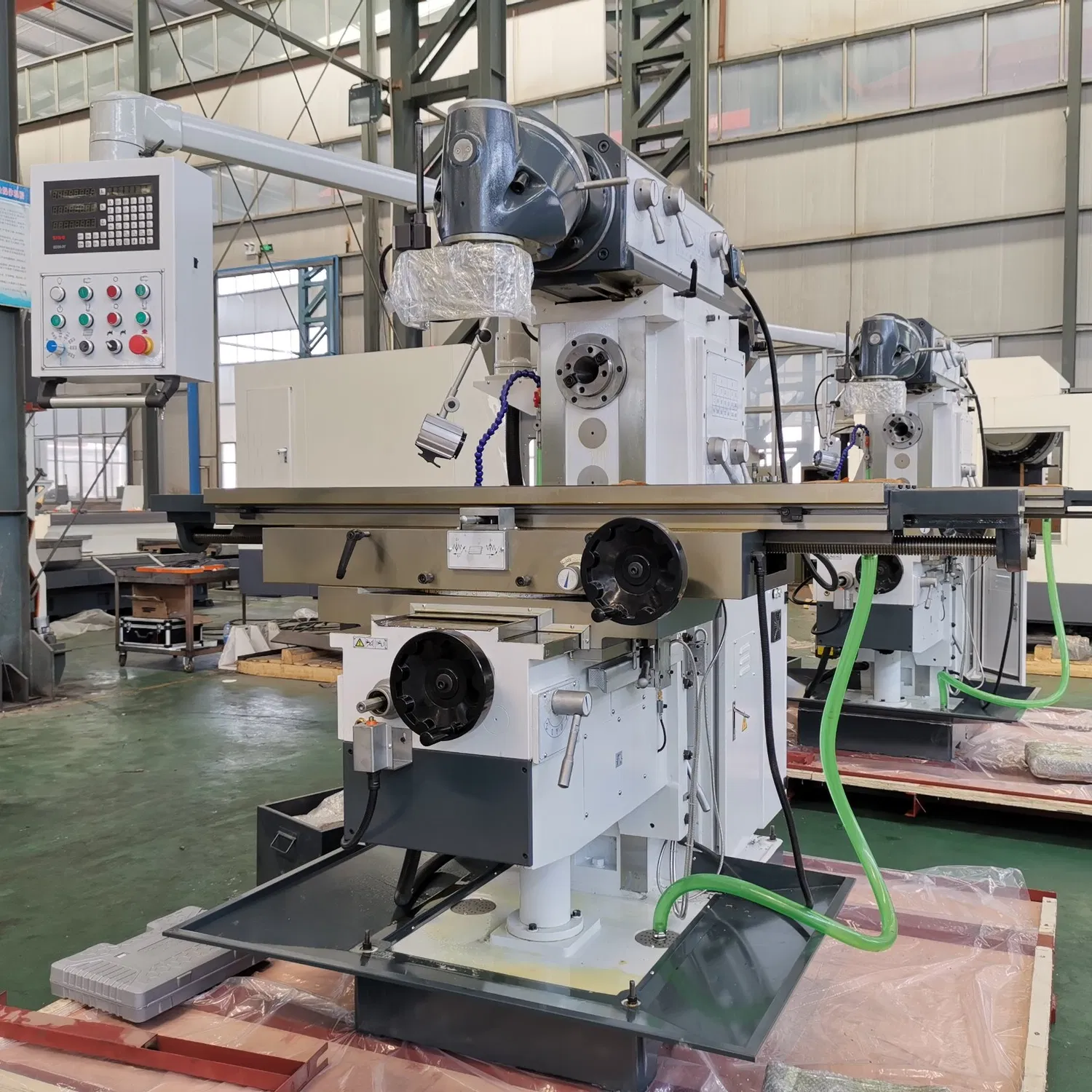

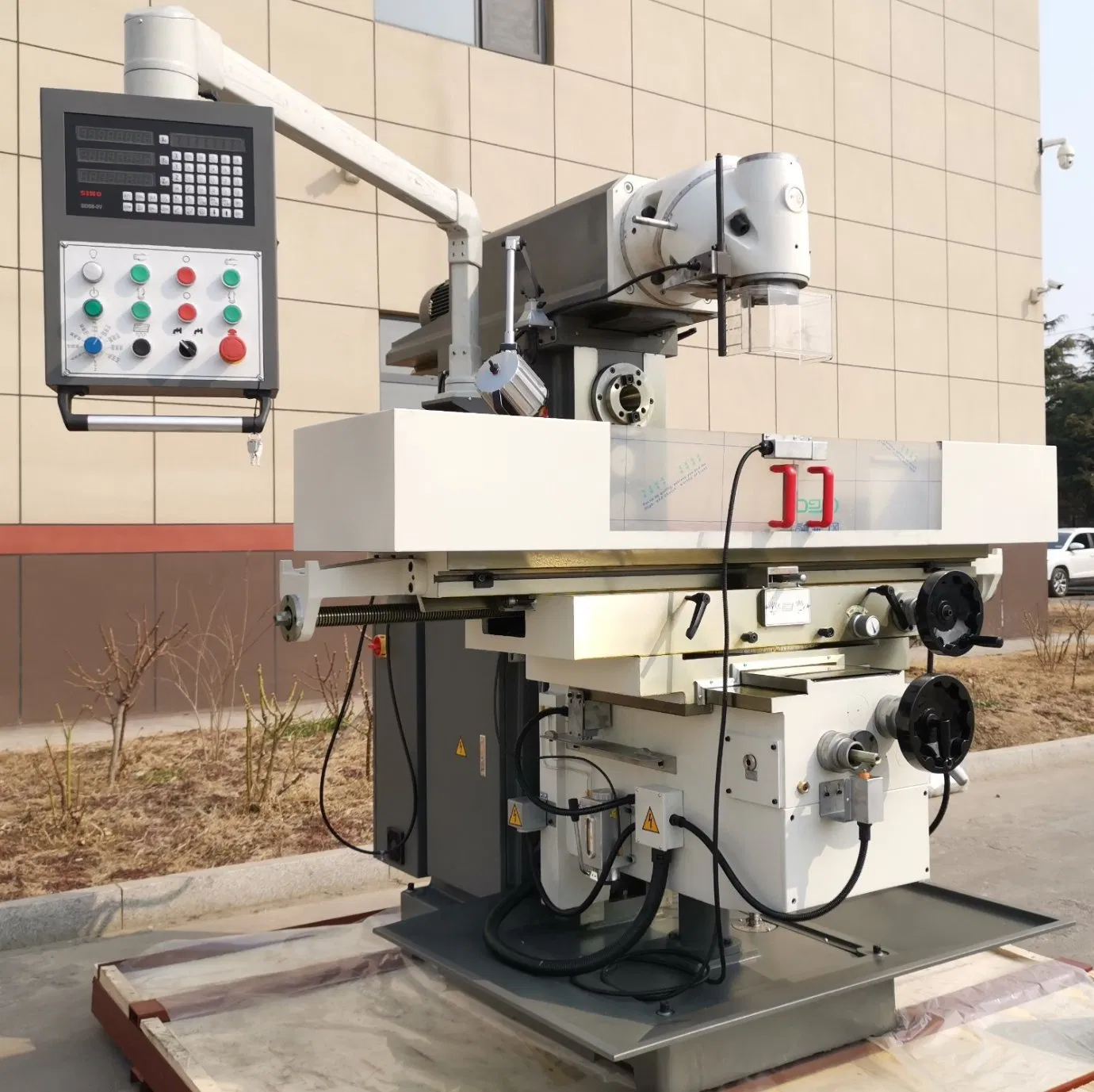

This is a used Universal Milling Machine, brand: XILI, model: XL6436. This is a multifunctional machine tool with a wide range of applications, mainly used for milling of metals and other materials. It is widely used in the field of industrial manufacturing for metal parts processing, complex geometric shapes, plane processing, mold manufacturing, etc. This machine tool has important applications in mechanical manufacturing, mold processing, aerospace, and other fields due to its flexibility and wide processing capabilities. The following table provides more information about this machine; if you have any questions, please feel free to click the button to contact us.

Open Chat

Basic Info.

Model NO.XL6436TypeKnee-and-Column Milling Machine
ObjectMetalStructureKnee Type
Milling Cutter TypeVertical Milling CutterMilling Cutter StructureIndexable Type
Controlling ModeArtificialAutomatic GradeSemiautomatic
PrecisionPrecisionCertificationGS, CE, RoHS, ISO 9001
ConditionUsedTable Size1600*360mm
Table Size 21325*360mmTravel720/320/460
Travel 21100/320/450Travel 31300/320/450
Spindle TaperISO50Vertical Spindle Speed12 Steps 60-1750 Rpm
Horizontal Spindle Speed12 Steps 60-1800 RpmArm Travel550mm
Distance Between Spindle Nose and Table196-656mmDistance Between Horizontal Nose and Tab20-480 mm
T-Slots(No./Width/Pitch)3/18/80Table Rapid Feed X/Y/Z1200/800/600 mm/Min
Table Feed(X/Y/Z)30~750/20~500/15~375 mm/MinTransport PackagePlywood Case and Still Pallent
SpecificationISO50 spindleTrademarkXILI
OriginChinaProduction Capacity800 Sets Per Year
