Basic Info.
| Model | Vio30 | Condition | Used |
| Operating Weight | 3120–3280 kg | Swing Speed | 8.9 rpm |

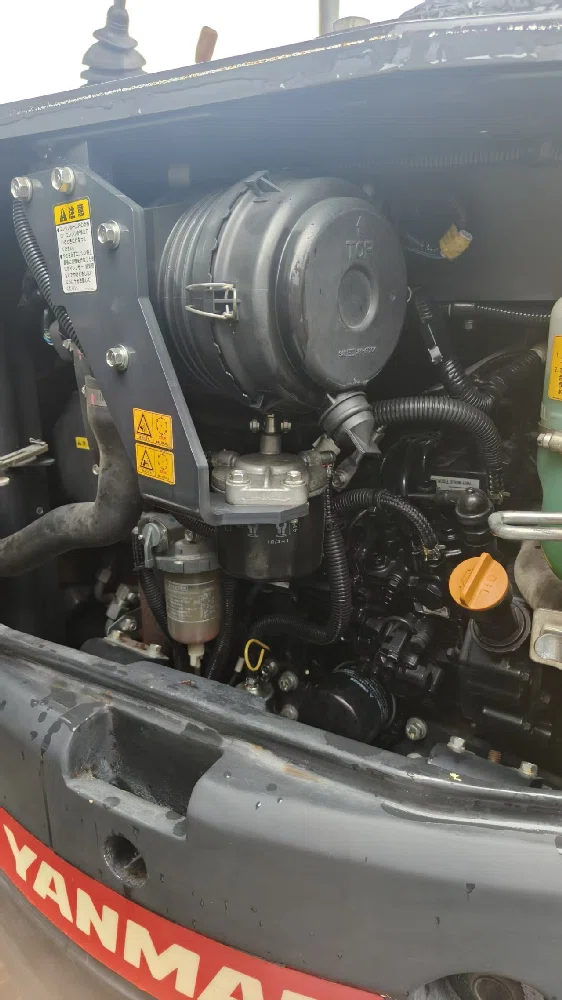

| Engine Model | Yanmar 3TNV88-BPTB | Travel Speed | 0–2.3 / 0–4.4 km/h (High/Low Speed) |
| Rated Power | 21.0 kW (28.5 PS) / 2400 rpm | Gradeability | 30° (58%) |
| Displacement | 1.642 L | Ground Contact Pressure | 34 kPa |
| Standard Bucket Capacity | 0.09–0.11 m³ | Overall Dimensions (L × W × H) | 4410 × 1540 × 2460 mm |
| Maximum Digging Depth | 2970 mm | Track Width | 300 mm (Rubber Track) |
| Maximum Digging Radius | 4870 mm | Dozer Blade (W × H) | 1540 × 330 mm |
| Maximum Digging Height | 4520 mm | Hydraulic System Pressure | 24.5 MPa |
| Maximum Dumping Height | 3100 mm | Fuel Tank Capacity | 42 L |
| Hydraulic Tank Capacity | 36 L | Control Type | Pilot Control |
| Cooling Type | Air Cooling + Water Cooling | Brand | Yanmar |
| Year of Production | 2015 | Origin | China |
