Used Drilling Rig

Used Drilling Rig XZ320 for sale

Used Drilling Rig Product Description

Patented technology of power head floating and vise floating can greatly protect the drill pipe thread to increase the service life of the drill pipe.

High/low speed push-pull and rotation system in which the variable piston motor achieves the high/low push-pull speed of power head improves the ability to adapt to various working conditions and improves the construction efficiency of the drilling rig.

The configuration is flexible and diverse. The whole machine can be equipped with automatic (semi-automatic) pipe loader, double automatic anchoring device, mud antifreeze, mud cleaning device, etc. It can also be equipped with more environmentally friendly and energy-saving engine.



Product Parameters

Item
Unit
XZ320D
Engine
Model
QSB5.9-C210
Rated power
Kw/r/min
154/2200
Thrust-Pull
Max pull/ thrust force
kN
320
Max pull/ thrust speed
m/min
22
Rotation
Torque
N.m
12000
Max spindle speed
r/min
140
Mud pump
Max flow rate
L/min
320
Max pressure
Mpa
8
Pipe
Diameter*Length
mm*m
73*3
Truck-mounted
Lifting weight
t
Loading capacity
t.m
Max inclination angle
°
20
Max backreamer diameter
mm
900
Weight
t
10
Dimension
mm
6500*2250*2450



Product Picture

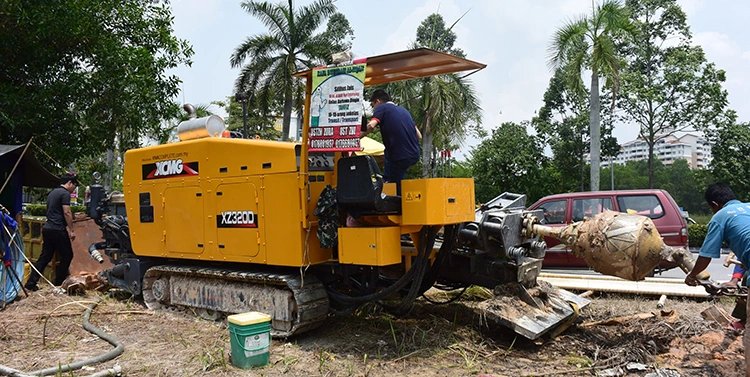

XCMG Official Manufacturer Xz320 Used Horizontal Directional Drilling Rig

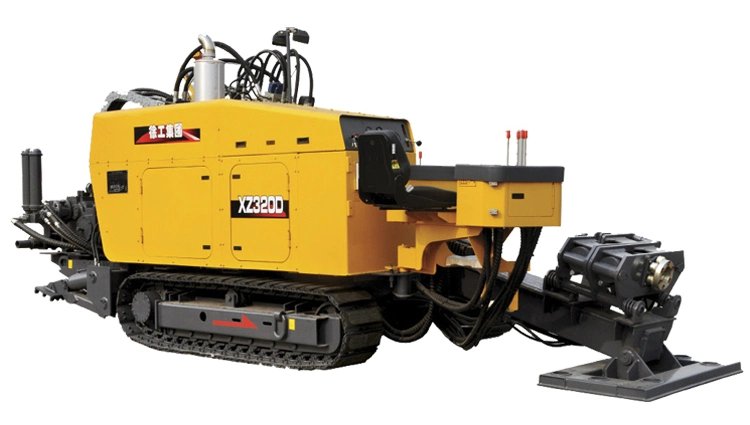

XCMG Official Manufacturer Xz320 Used Horizontal Directional Drilling Rig

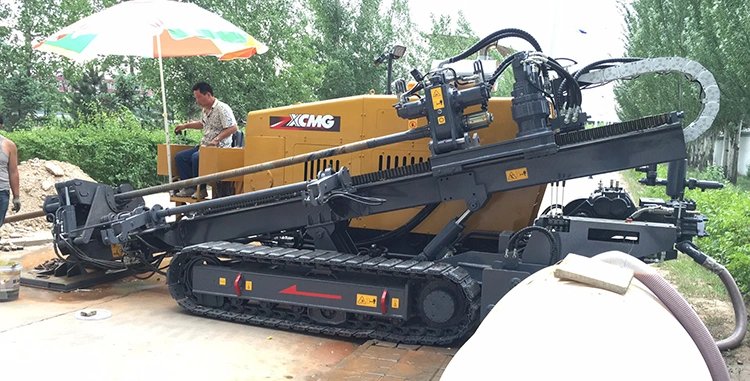

XCMG Official Manufacturer Xz320 Used Horizontal Directional Drilling Rig

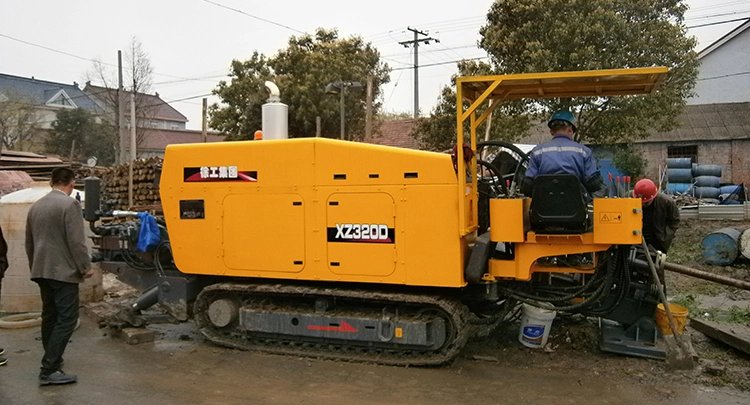

XCMG Official Manufacturer Xz320 Used Horizontal Directional Drilling Rig


XCMG Official Manufacturer Xz320 Used Horizontal Directional Drilling Rig
