Used Drilling Rig FY180 for sale

Used Drilling Rig Product Description

FY series deep(water) well-drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools
with very high drilling efficiency.
Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.

Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.

The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

180m Second-Hand Water Well Drilling Rig at Cheap Price

Details Images

FY180 water well drilling rig features: 1. Engine: well-known brand Guangxi Yuchai turbocharged engine;

2. Traveling device: equipped with new traveling motor and reducer, with long service life;

3. Hydraulic oil pump: imported from the United States, parallel gearbox design, independent oil pump, providing sufficient and reasonable power distribution. The advanced hydraulic system has unique design, simple maintenance and low cost;

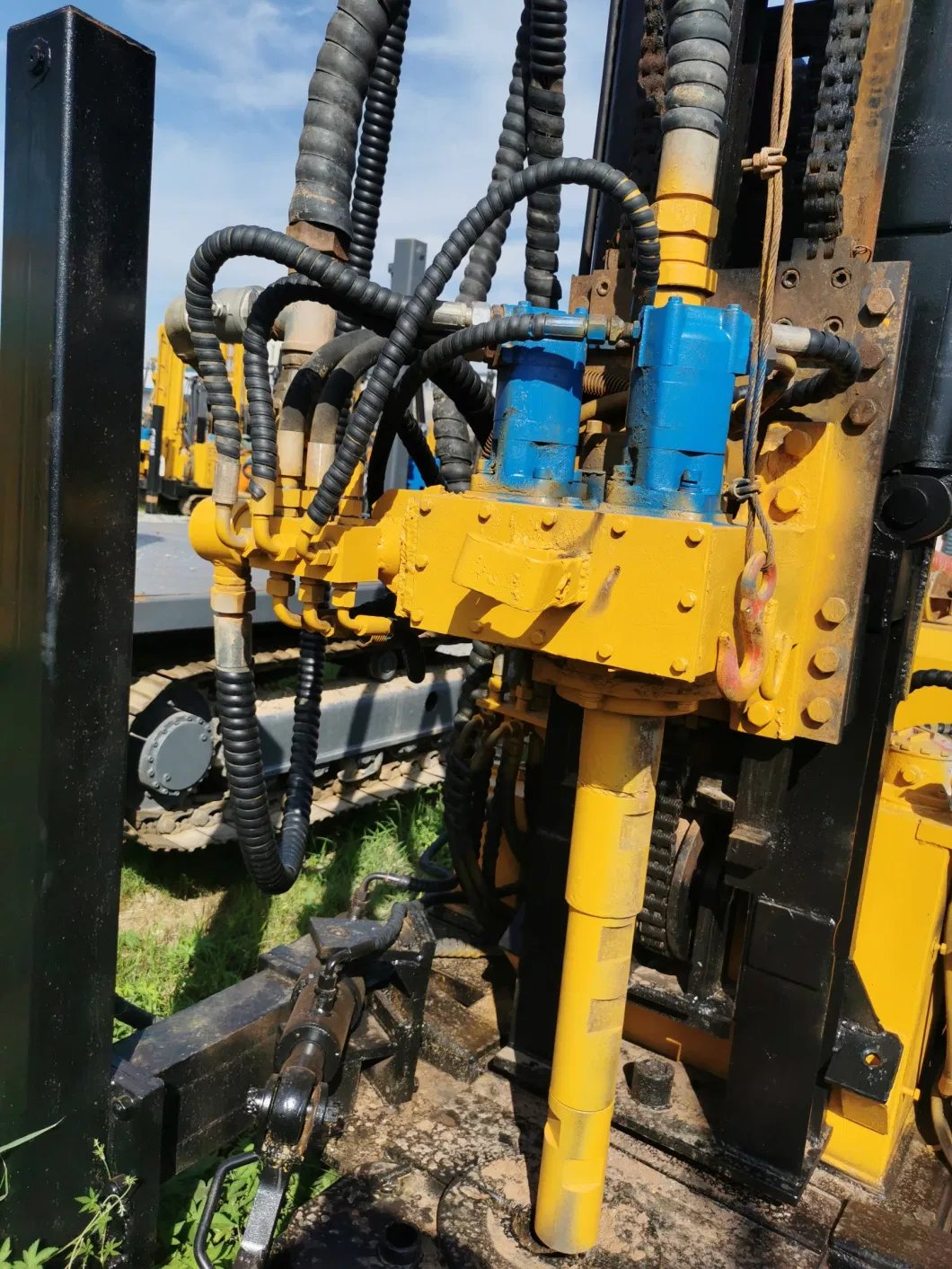

4. Power head device; the box is integrally formed, and the dual motors provide greater power, greater torque, more durability, and lower maintenance costs;

5. Drilling rig chassis; professional excavator chassis, classic and durable, load-bearing, wide chain plate width,

Less damage to hard pavement;

6. Lifting force: The designed composite boom is used, which is small in size, long in stroke, double-cylinder lifting force, and large in lifting tonnage of the drilling rig;

The boom configured with the rig body is provided with a limit device to protect the safety of the oil cylinder and ensure work safety;

7. Each hydraulic oil pipe is covered with a thick protective sleeve, so that the oil pipe has a longer service life;

8. Dual systems can be installed: 1. Air power system with air compressor 2. Mud pump system with mud pump

180m Second-Hand Water Well Drilling Rig at Cheap Price

Water Wells Drilling Rigs
typeFY180
The weight5.2T
Dimension4000*1630*2250mm
The hole diameter140-254mm
Drilling depth180m
One-time advance length3m
Walking speed2.5KM/H
Climbing angles30
Power60KW
Using air pressure1.7-2.0MPA
Air consumption17-31
Drill pipe length1.5m 2.0m 3.0m
Drill pipe diameter76mm,89mm
Rig lifting force12T
Swing speed45-70rpm
Swing torque3200-4600N.m
