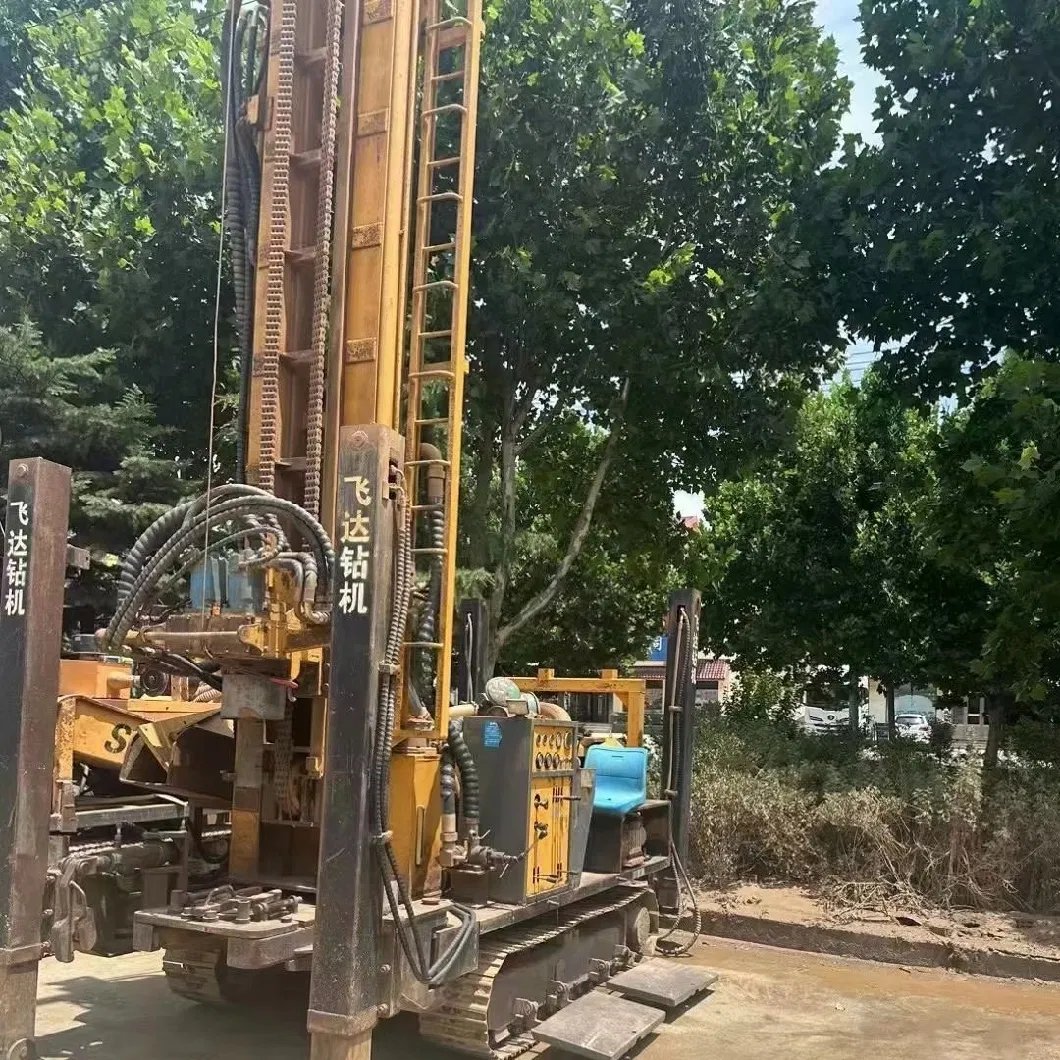

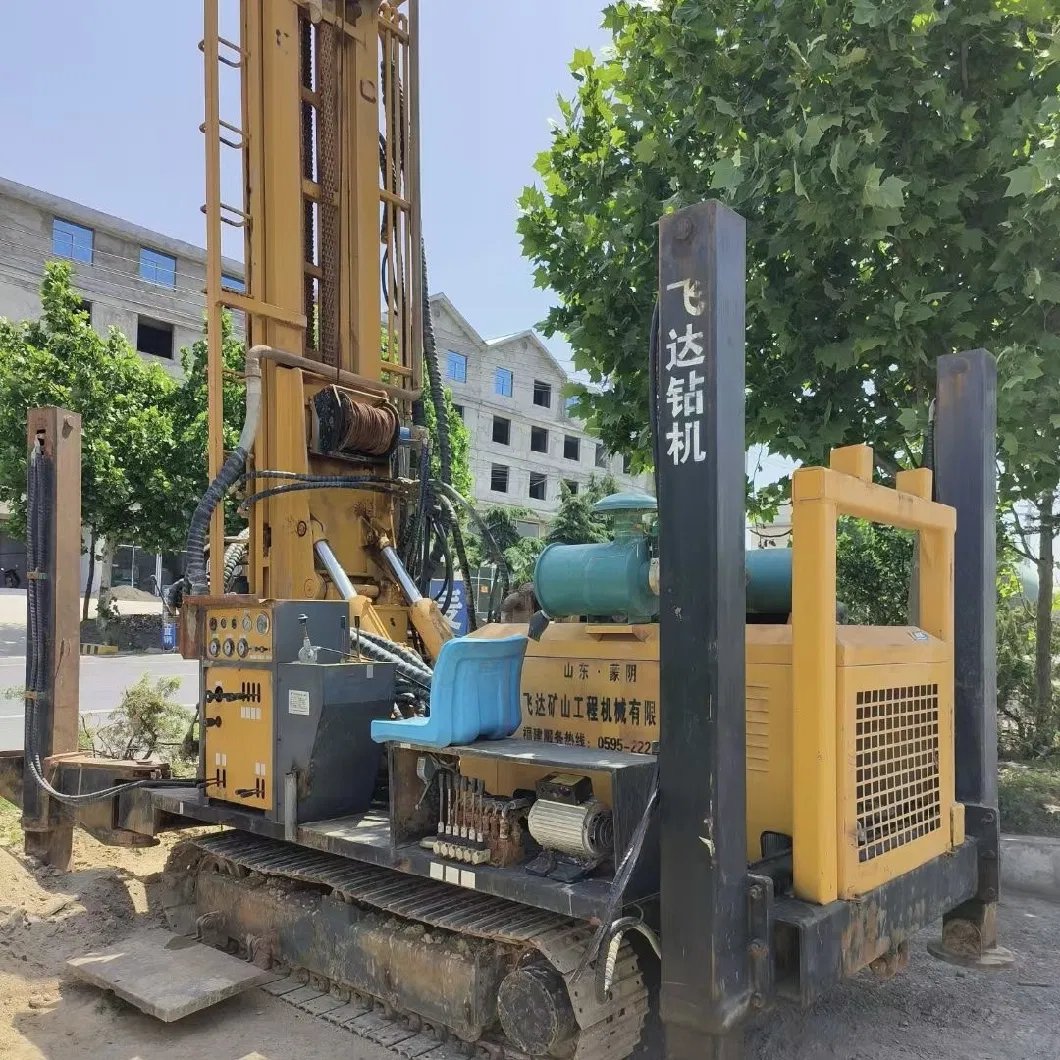

Used Drilling Rig Detailed Photos

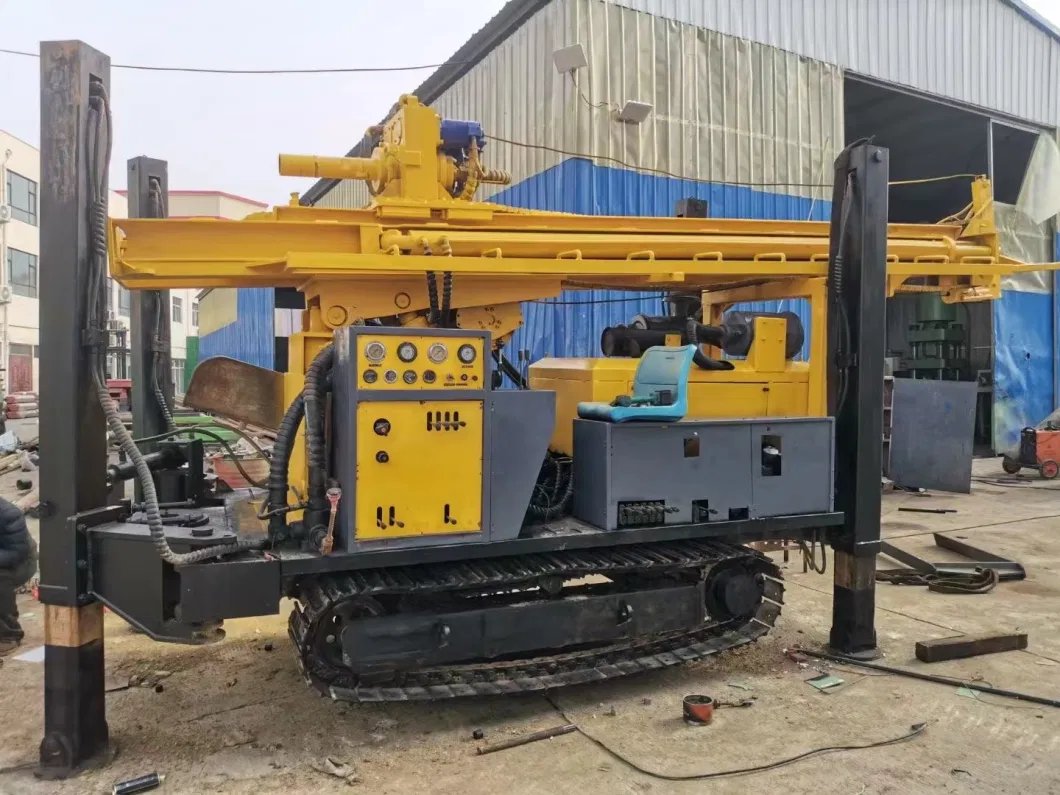

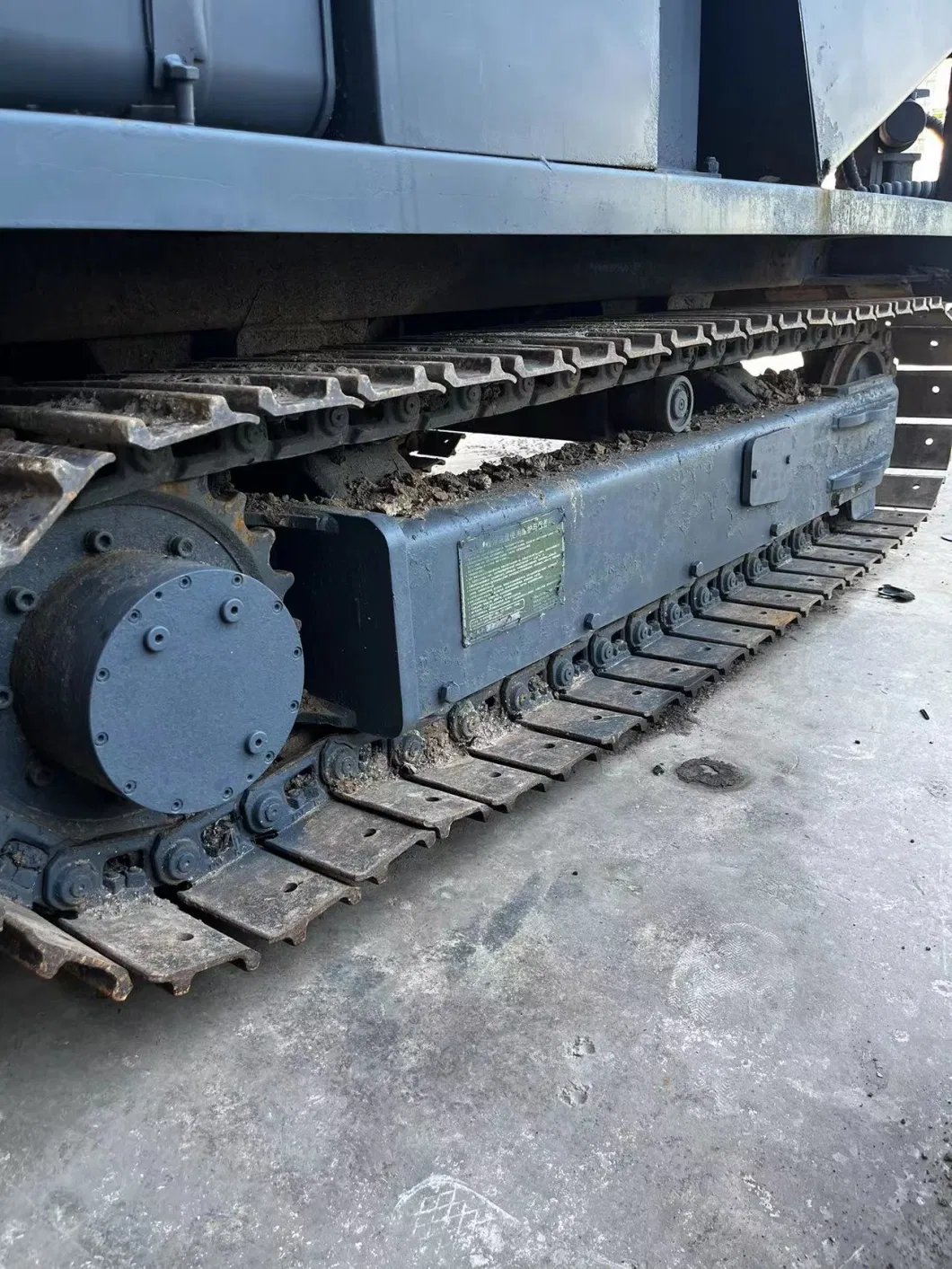

This machine adopts an excavator track chassis, which has high off-road performance and can also be installed on trucks, making it more maneuverable.uv.

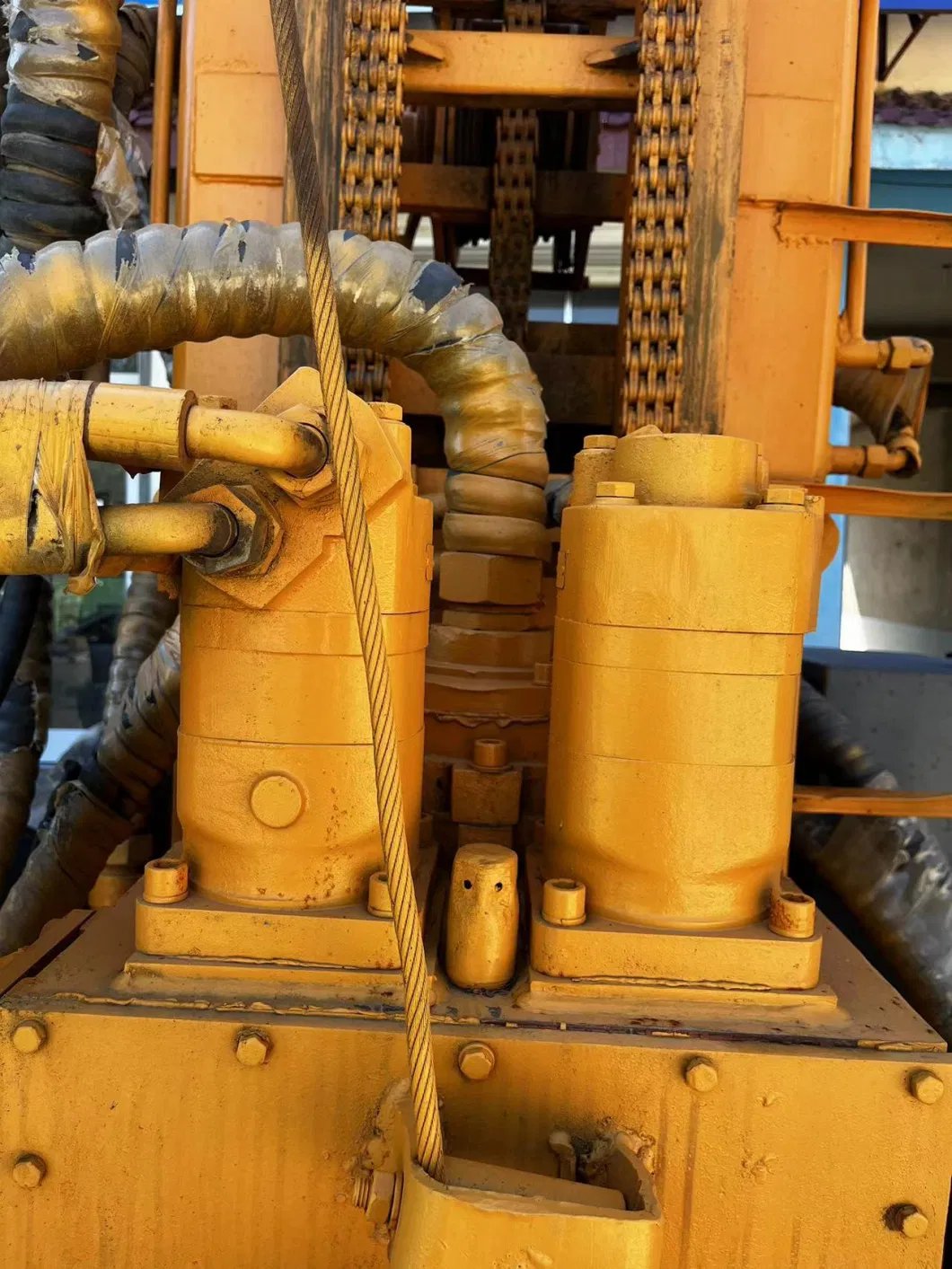

This machine adopts a high torque hydraulic motor power head and brand diesel, and the hydraulic control system adopts a large diameter hydraulic cylinder.

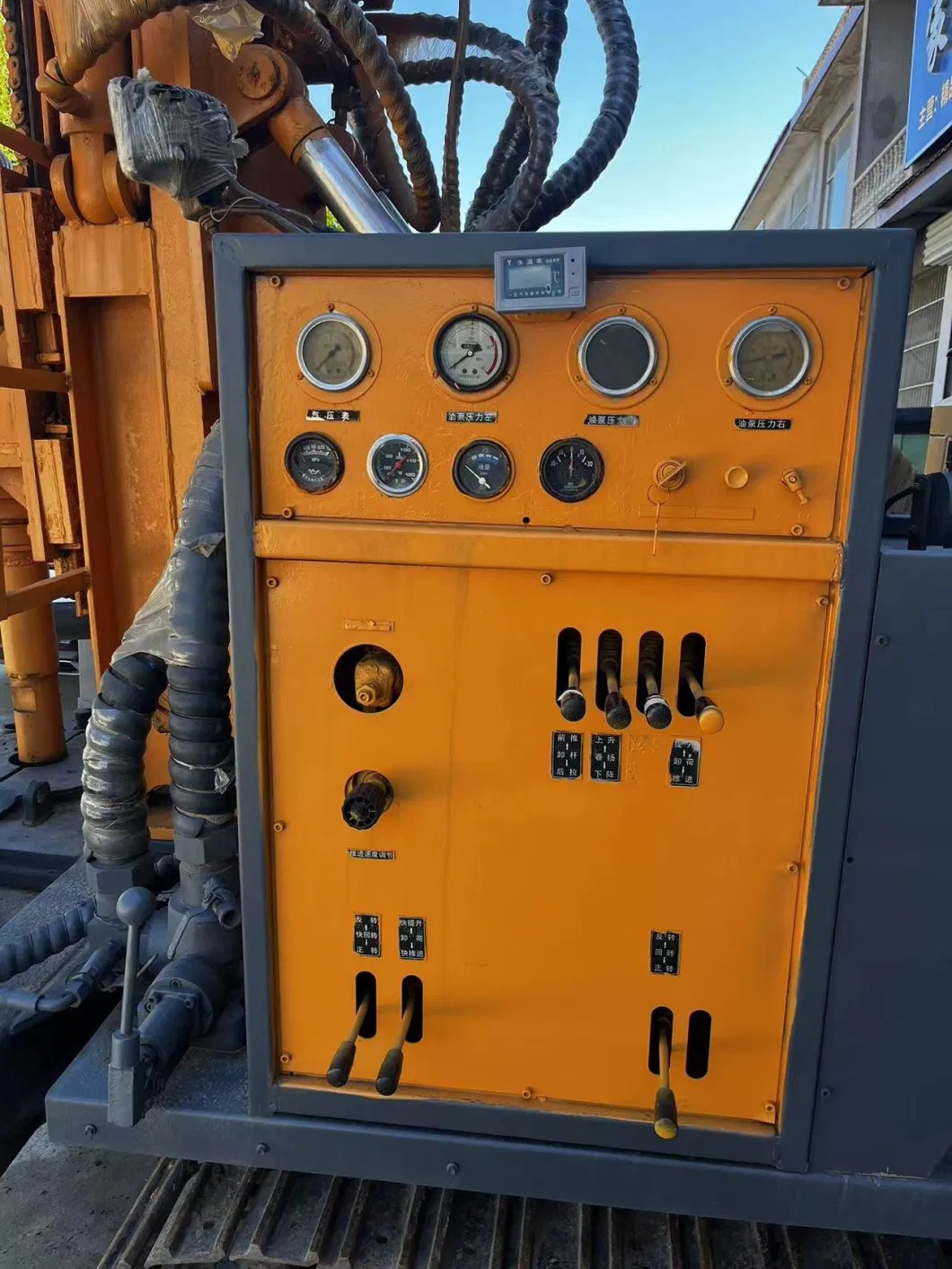

The unique convex block design and centralized control operating system make it easy to maintain and facilitate machine operation.
This machine can be equipped with a mud pump or an air compressor drive, which can be used for both water and steam, and can be used in various working environments.
Product Parameters
| The weight | 8.6 T | Drill pipe diameter | Φ76 Φ89 Φ102 |
| The hole diameter | 140-325mm | Drill pipe length | 1.5m 2.0m 3.0m |
| Drilling depth | 350m | One-time advance length | 6.6m |
| Walking speed | 2.5km/h | Swing torque(N.m) | 5700-7500N.m |
| Using air pressure | 1.7-3.0MPA | High leg stroke | 1.4m |
| Dimension | 4100×2000×2500mm | The penetration efficiency | 15-35m/h |
| Equipped with hammer | Medium and high wind pressure series | Hoisting force of winch | 2T |
| Rig lifting force | 22T | The engine brand | Yuchai engine |
