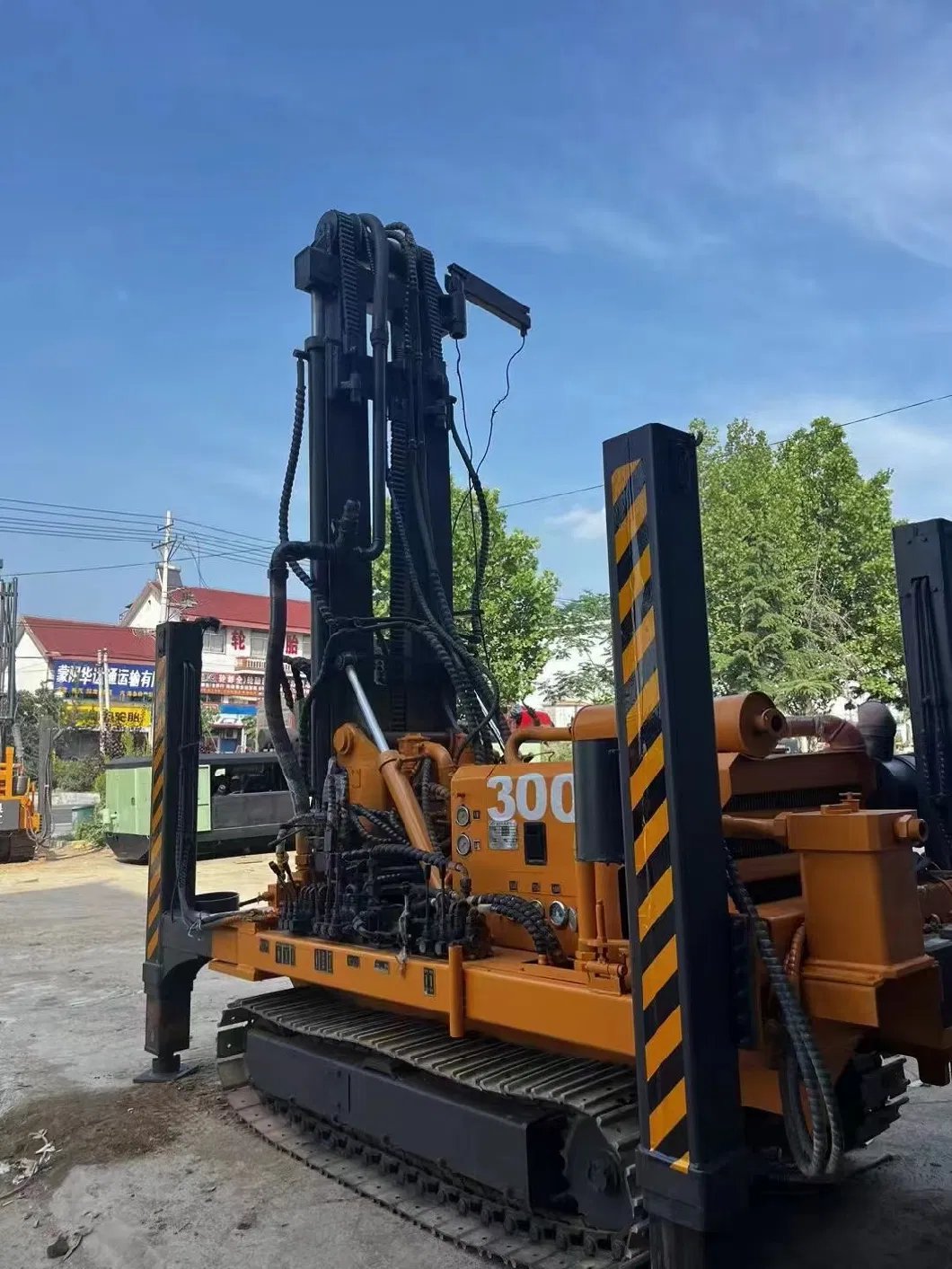

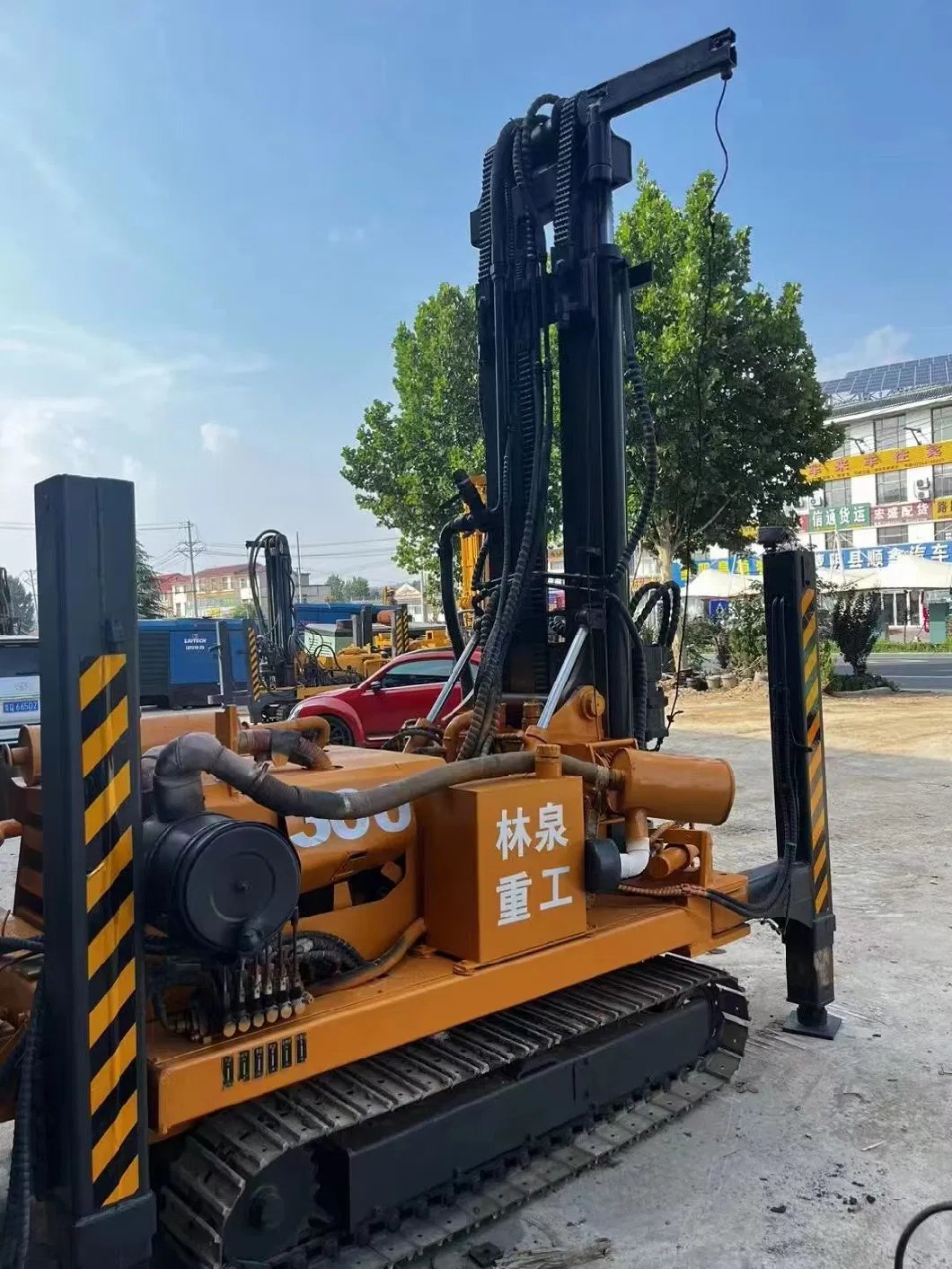

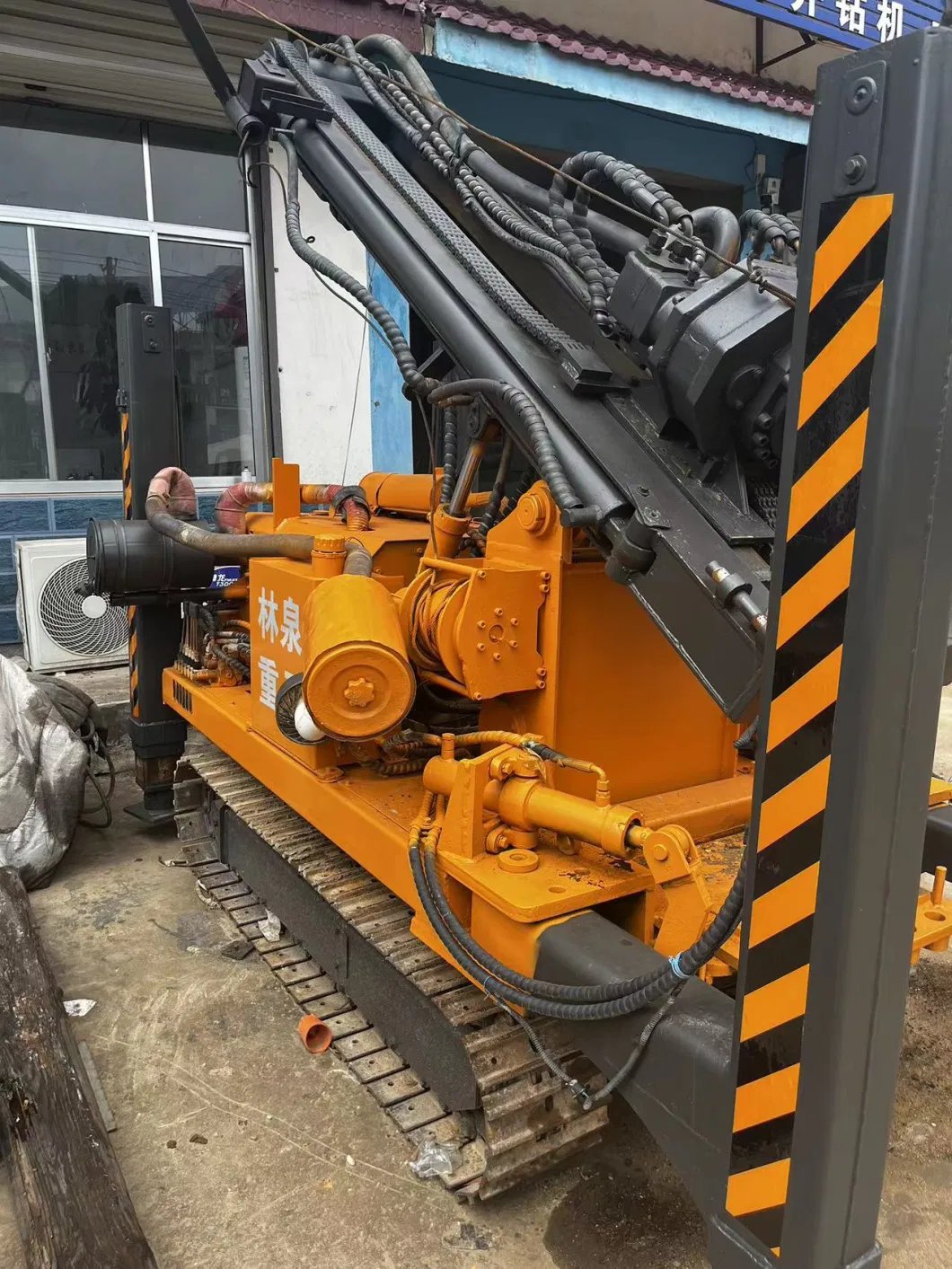

Used Drilling Rig Detailed Photos

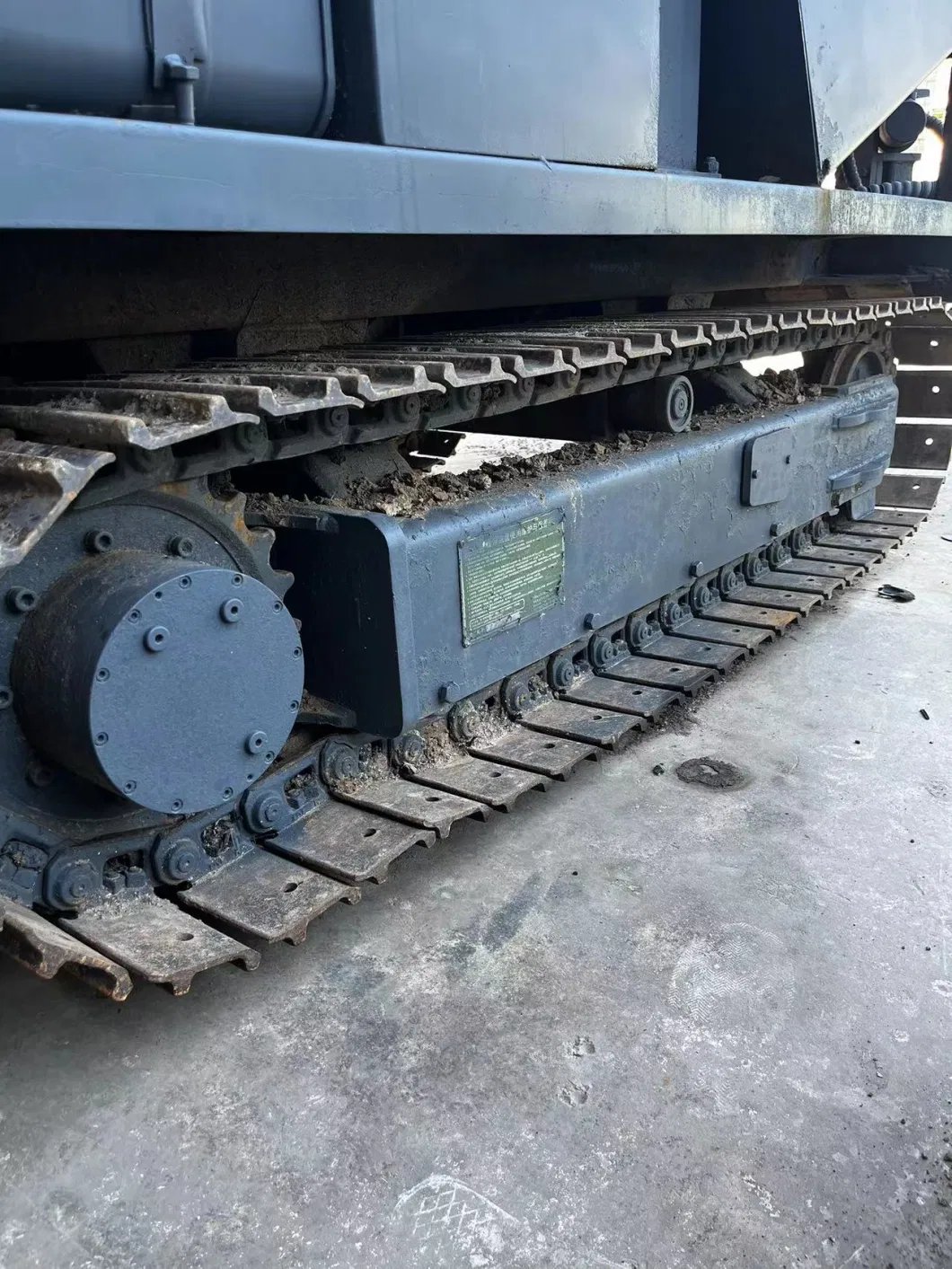

This machine adopts an excavator track chassis, which has high off-road performance and can also be installed on trucks, making it more maneuverable.uv.

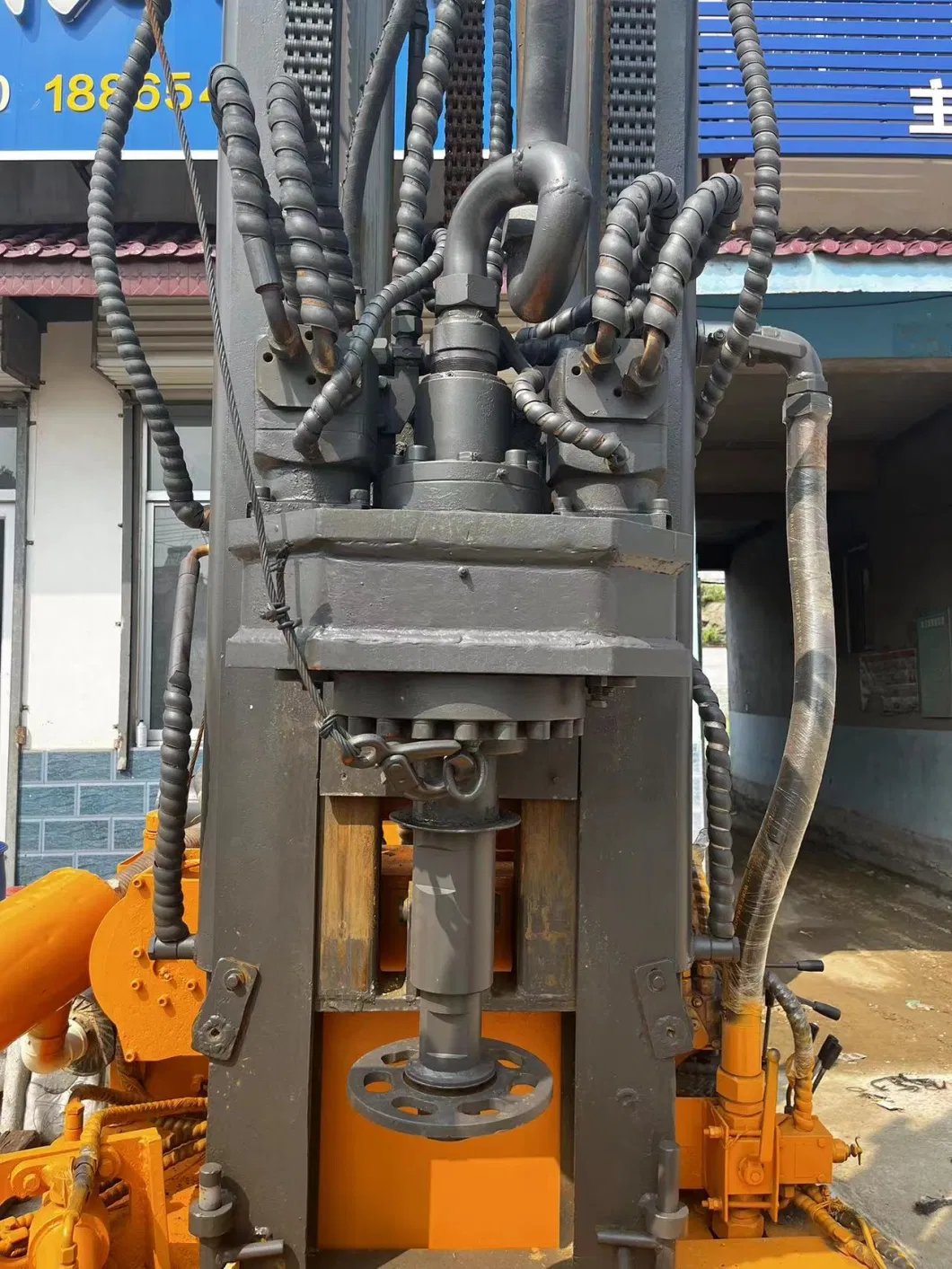

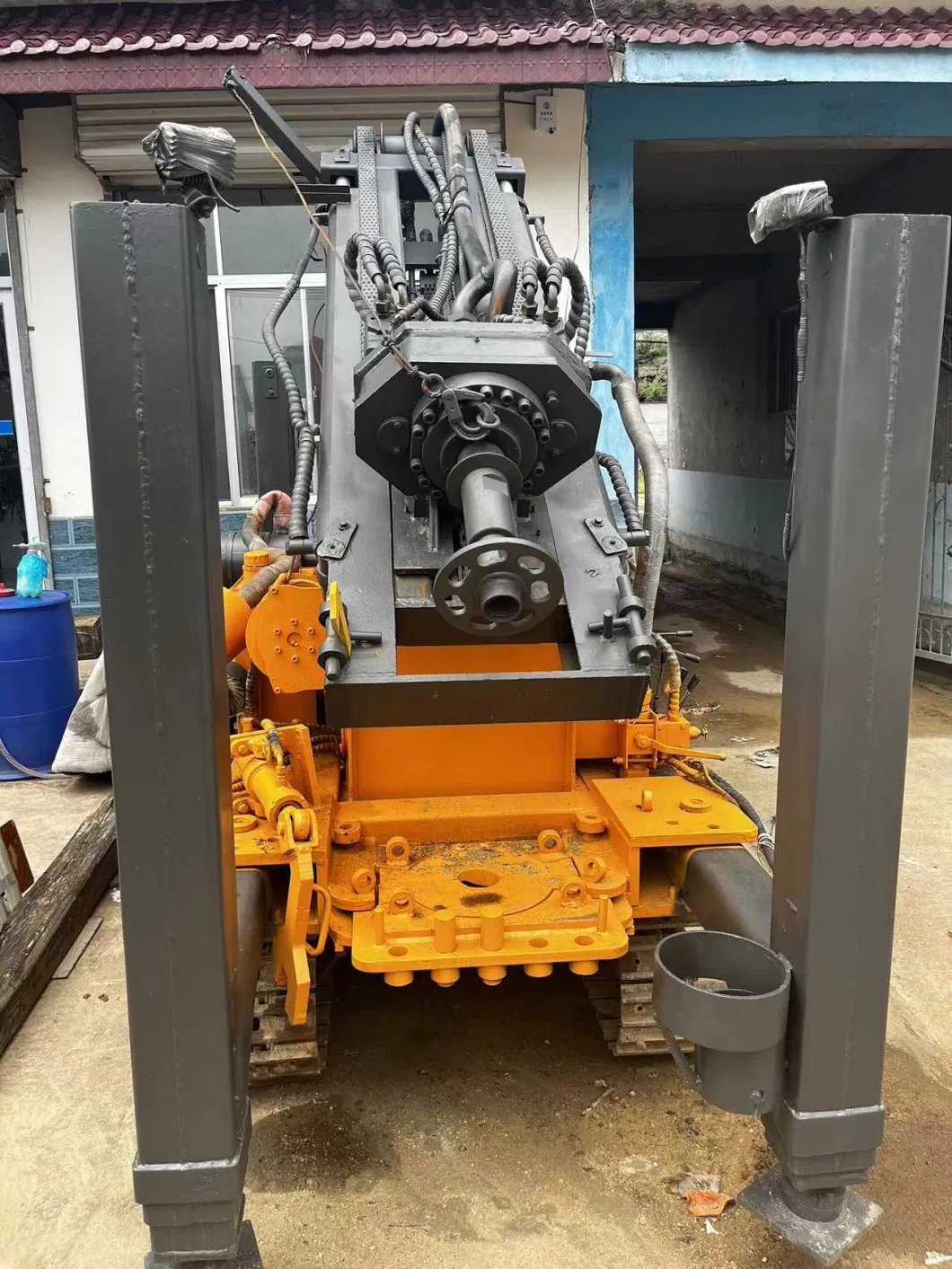

This machine adopts a high torque hydraulic motor power head and brand diesel, and the hydraulic control system adopts a large diameter hydraulic cylinder.
The unique convex block design and centralized control operating system make it easy to maintain and facilitate machine operation.
The unique convex block design and centralized control operating system make it easy to maintain and facilitate machine operation.
Product Parameters
| The weight | 6 T | Drill pipe diameter | Φ76 Φ89 Φ102 |
| The hole diameter | 140-325mm | Drill pipe length | 1.5m 2.0m 3.0m |
| Drilling depth | 300m | One-time advance length | 3.6m |
| Walking speed | 2.5km/h | Swing torque(N.m) | 5700-7500N.m |
| Using air pressure | 1.7-3.0MPA | High leg stroke | 1.4m |
| Dimension | 4100×2000×2500mm | The penetration efficiency | 15-35m/h |
| Equipped with hammer | Medium and high wind pressure series | Hoisting force of winch | 2T |
| Rig lifting force | 18T | The engine brand | Yuchai engine |
